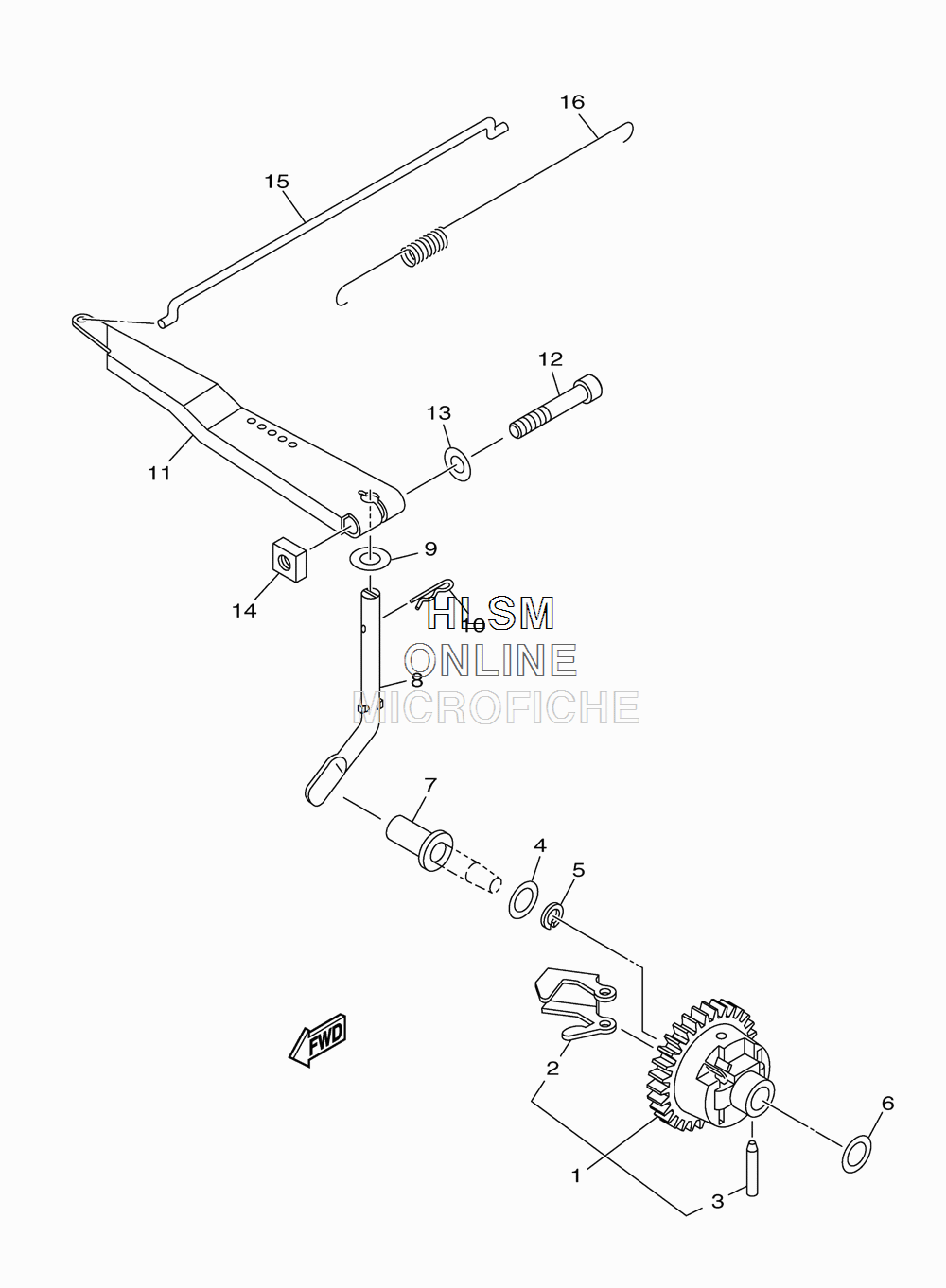

GOVERNOR для Yamaha SX120 - 2013 года выпуска
-
№АртикулНазвание
-
17CN-E1970-00-00 FLYWEIGHT SHAFT ASSY.FLYWEIGHT SHAFT ASSY.
-
27CN-E1913-00-00 ...WEIGHT...WEIGHT
-
37CT-E1914-00-00 ...SHAFT, WEIGHT...SHAFT, WEIGHT
-
490201-06842-00 WASHER, PLATEWASHER, PLATE
-
593440-06826-00 CIRCLIPCIRCLIP
-
690201-06842-00 WASHER, PLATEWASHER, PLATE
-
77CN-E1917-00-00 COLLARCOLLAR
-
87CN-E1922-00-00 FORK, GOVERNORFORK, GOVERNOR
-
992902-06200-00 WASHERWASHER
-
1090468-18800-00 CLIPCLIP
-
117CN-E1924-00-00 ARM, GOVERNORARM, GOVERNOR
-
1297022-06030-00 BOLTBOLT
-
1392902-06600-00 WASHER, PLATEWASHER, PLATE
-
1490173-06802-00 NUT, SQUARENUT, SQUARE
-
157CN-E1928-00-00 ROD, LINKROD, LINK
-
1690506-04800-00 SPRING, TENSIONSPRING, TENSION
Все узлы модели:
- CARBURETOR ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - MAGNETO ASSEMBLY
- EXHAUST SYSTEM
- FRONT FRAME COMP. 1
- • GOVERNOR
- HANDLEBAR ASSY W/ STEERING ASSY
- HEAD & TAIL LIGHT
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- SEAT ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- TUNNEL EXTENSION ASSEMBLY
- VALVE ASSY
