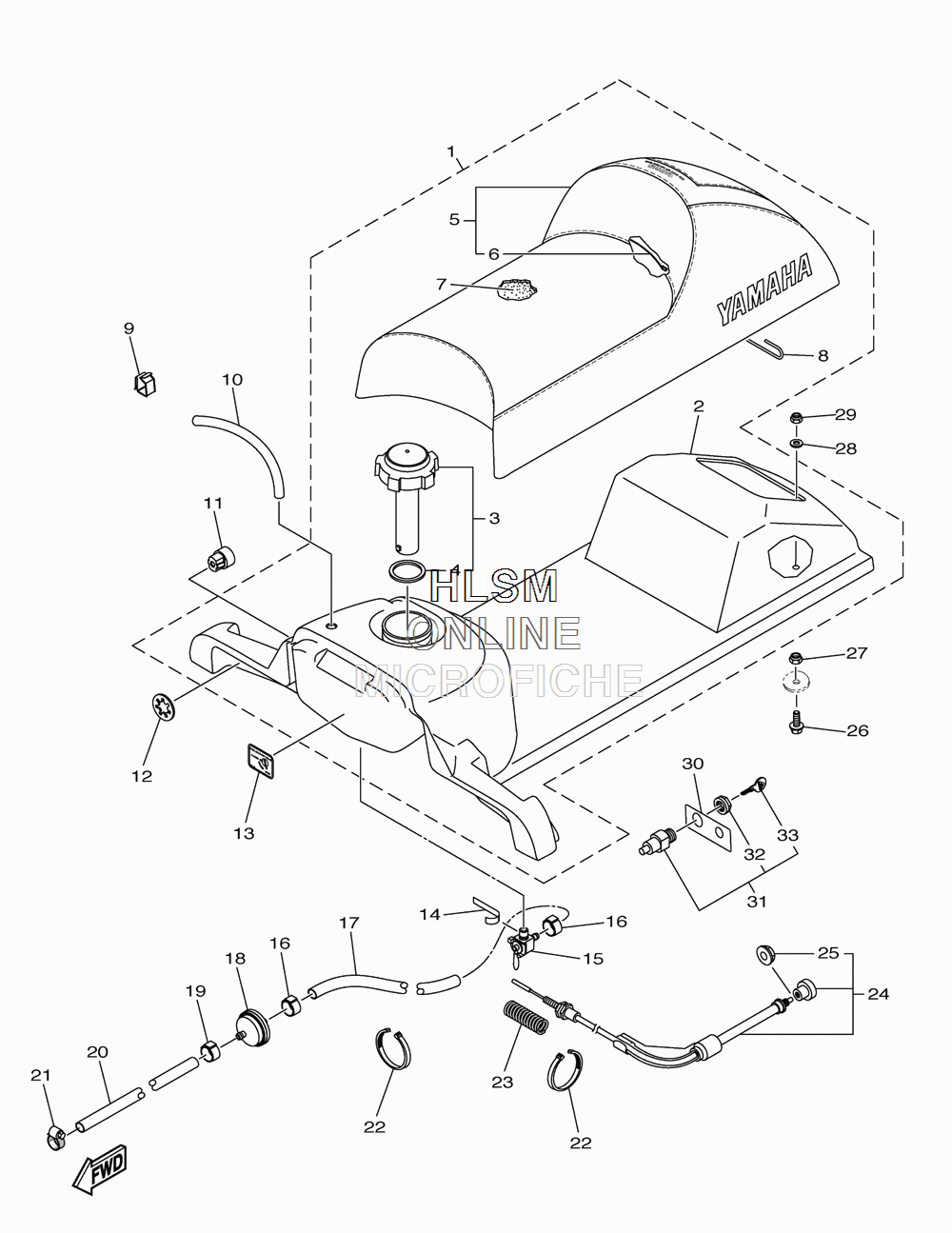

SEAT ASSY для Yamaha SX120 - 2013 года выпуска
-
№АртикулНазвание
-
18JM-F4710-00-00 SEAT, 120 BLUE-S/P ASEAT, 120 BLUE-S/P A
-
28JM-F4111-00-00 ...TANK, FUEL-120-MULTI...TANK, FUEL-120-MULTI
-
38JM-F4611-00-00 ...CAP, FUEL W/GAUGE...CAP, FUEL W/GAUGE
-
48JM-F4641-00-00 ...GASKET, CAP 1...GASKET, CAP 1
-
58JM-F470F-00-00 ...COVER, SEAT-120-BLUE...COVER, SEAT-120-BLUE
-
68JM-F473J-00-00 ......WIRE, SEAT-BENT......WIRE, SEAT-BENT
-
78JM-F4713-00-00 ...FOAM, SEAT(IDL 60-65...FOAM, SEAT(IDL 60-65
-
88JM-F473W-00-00 ...WIRE, SEAT (8.0)-BENT...WIRE, SEAT (8.0)-BENT
-
98JM-RAC00-00-00 CLIP, 1CLIP, 1
-
108JM-RA901-00-00 HOSE, VENT-GAS TANKHOSE, VENT-GAS TANK
-
118JM-F1339-00-00 GUIDE, WIREGUIDE, WIRE
-
128JM-RA309-00-00 NUT, PUSH - .850X1.20NUT, PUSH - .850X1.20
-
138JM-F415C-00-00 LABELLABEL
-
148JM-F744H-00-00 TAPE, TEFLON-ROLLTAPE, TEFLON-ROLL
-
158JM-F4540-00-00 FUEL COCK COMP.FUEL COCK COMP.
-
168JM-RAC01-00-00 CLAMP,HOSE(14.5)12.0CLAMP,HOSE(14.5)12.0
-
178JM-RA902-00-00 HOSE,FUEL-1/4" 25' 0HOSE,FUEL-1/4" 25' 0
-
188JM-F4501-00-00 FILTER, FUELFILTER, FUEL
-
198JM-RAC02-00-00 CLAMP, HOSE-10.8 MMCLAMP, HOSE-10.8 MM
-
208JM-RA903-00-00 HOSE, GASOLINE-25'HOSE, GASOLINE-25'
-
218JM-RAA00-00-00 CLAMP, HOSE #4 (6202CLAMP, HOSE #4 (6202
-
228JM-RAB01-00-00 TIE, CABLE-8.5/7.5/7TIE, CABLE-8.5/7.5/7
-
238JM-RAD06-00-00 SPRING, CHOKE RETURNSPRING, CHOKE RETURN
-
248JM-F6330-00-00 CABLE, CHOKE-120CABLE, CHOKE-120
-
258JM-RA310-00-00 ...NUT, PLASTIC M24-1.5...NUT, PLASTIC M24-1.5
-
268JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
278JM-RA311-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
288JM-RA406-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
298JM-RA312-00-00 NUT, CAP 1/4-20NUT, CAP 1/4-20
-
308JM-K7741-00-00 INDICATOR 1INDICATOR 1
-
318JM-H194E-00-00 BODY SWITCH COMP.BODY SWITCH COMP.
-
328JM-RA317-00-00 NUT, PLASTIC 5/8-32NUT, PLASTIC 5/8-32
-
338JM-H2511-00-00 KEY, MAIN SWITCHKEY, MAIN SWITCH
