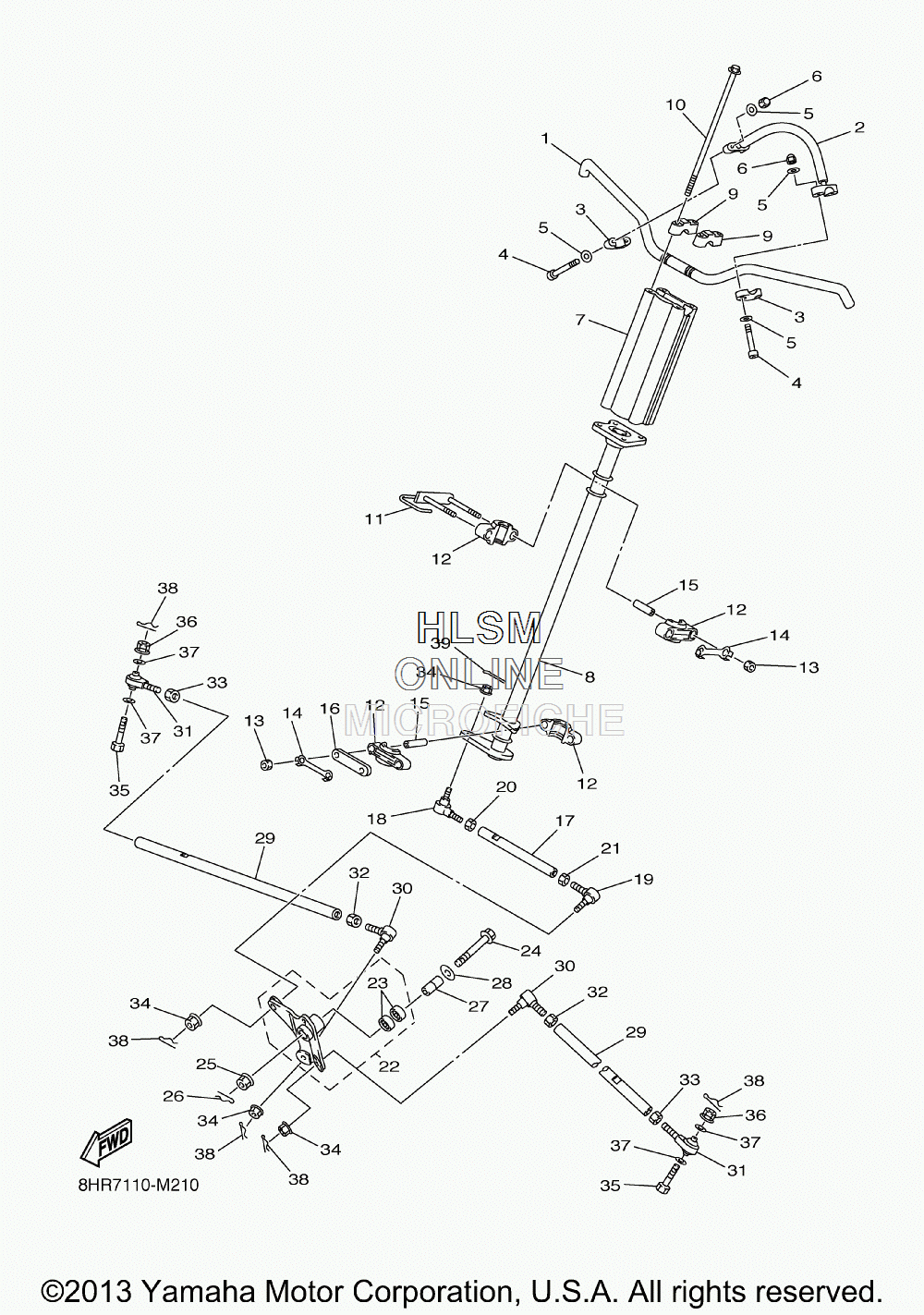

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha FX NYTRO MTX 162 - 2014 года выпуска
-
№АртикулНазвание
-
18HB-26111-00-00 HANDLEBARHANDLEBAR
-
28HR-23829-00-00 STRAP, STRGSTRAP, STRG
-
38HR-23882-00-00 BRACKET 2BRACKET 2
-
491314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590201-06016-00 WASHER, PLATEWASHER, PLATE
-
695380-06800-00 NUTNUT
-
78HA-2381B-00-00 JOINTJOINT
-
88GL-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
98K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
108GT-23876-00-00 BOLTBOLT
-
118GL-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
128FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
1395312-08600-00 NUTNUT
-
141UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
158HF-2412G-00-00 COLLARCOLLAR
-
168FA-23867-00-00 HOLDER 2HOLDER 2
-
178GL-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
188CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
198CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
2095302-10700-00 NUTNUT
-
2190170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
228GL-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
2393317-420A7-00 ...BEARING...BEARING
-
2490105-12070-00 BOLT, FLANGEBOLT, FLANGE
-
2595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2691402-20025-00 PIN, COTTERPIN, COTTER
-
278GL-2412G-00-00 COLLARCOLLAR
-
2890201-13016-00 WASHER, PLATEWASHER, PLATE
-
298HK-23831-00-00 ROD, TIEROD, TIE
-
308CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
318GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
3295302-10700-00 NUTNUT
-
3390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
3495702-10500-00 NUT, FLANGENUT, FLANGE
-
358GC-23493-00-00 BOLTBOLT
-
3695702-08500-00 NUT, FLANGENUT, FLANGE
-
3790201-06018-00 WASHER, PLATEWASHER, PLATE
-
3891402-20012-00 PIN, COTTERPIN, COTTER
-
3991402-20020-00 PIN, COTTERPIN, COTTER
