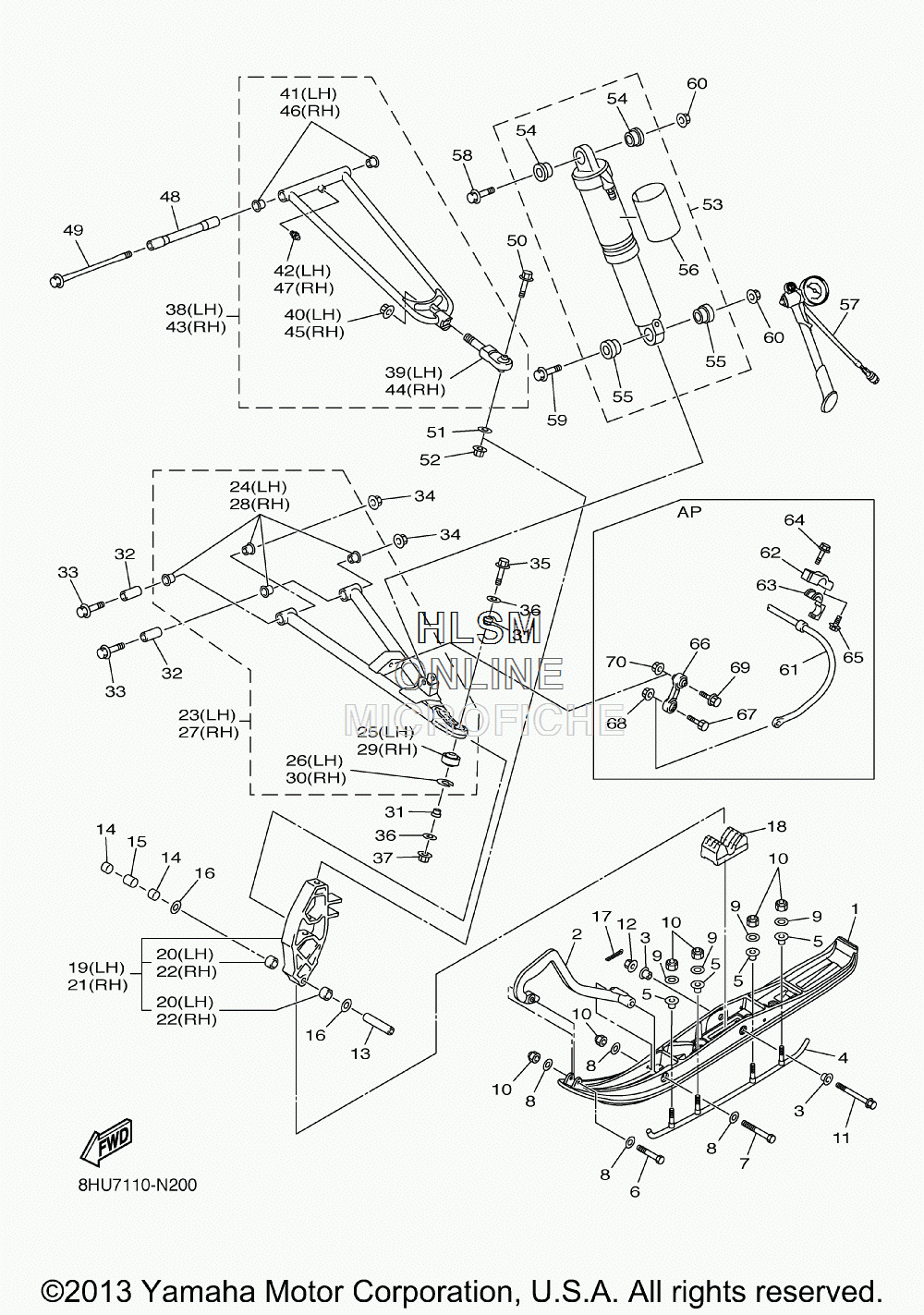

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO MTX 162 - 2014 года выпуска
-
№АртикулНазвание
-
18FK-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48GP-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
78HG-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88HG-F3737-00-00 WASHER 1WASHER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108HG-F3778-00-00 NUTNUT
-
1190105-10410-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
1390387-10036-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16021-00 COLLARCOLLAR
-
1690201-16033-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GP-23743-00-00 STOPPER 1STOPPER 1
-
198HK-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218HK-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238JH-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2490381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
258HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278JH-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
298HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
3099009-35700-00 ...CIRCLIP...CIRCLIP
-
318HK-23754-00-00 COLLAR, 1COLLAR, 1
-
3290387-10065-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
3590105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10052-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
388JH-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
398GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4095602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
438JH-23550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
448GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4595602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
488JH-23373-00-00 COLLAR 1COLLAR 1
-
4990105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
5091312-10045-00 BOLTBOLT
-
5190201-10052-00 WASHER, PLATEWASHER, PLATE
-
5295602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
538HR-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
548HR-2376B-09-00 ...BUSH...BUSH
-
558HR-2376B-19-00 ...BUSH...BUSH
-
568HR-F2259-00-00 ...LABEL, WARNING...LABEL, WARNING
-
578HR-F3703-00-00 ADJUSTERADJUSTER
-
5890105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5990105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
6095602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
618GN-2386E-00-00 BAR, STABILIZER FRONT (14MM) (OPT)BAR, STABILIZER FRONT (14MM) (OPT)
-
618GN-2386E-10-00 BAR, STABILIZER FRONT (15MM WHITE) (OPT)BAR, STABILIZER FRONT (15MM WHITE) (OPT)
-
618GN-2386E-20-00 BAR, STABILIZER FRONT (13MM YELLOW) (OPT)BAR, STABILIZER FRONT (13MM YELLOW) (OPT)
-
628GL-2386C-00-00 HOLDER, STABILIZER FRONT (OPT)HOLDER, STABILIZER FRONT (OPT)
-
638GN-2386G-00-00 BUSH, STABILIZER FRONT (14.1MM) (OPT)BUSH, STABILIZER FRONT (14.1MM) (OPT)
-
638GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1MM) (OPT)BUSH, STABILIZER FRONT (15.1MM) (OPT)
-
638GN-2386G-20-00 BUSH, STABILIZER FRONT (13.1MM) (OPT)BUSH, STABILIZER FRONT (13.1MM) (OPT)
-
6490110-08088-00 BOLT, HEXAGON SOCKET HEAD (OPT)BOLT, HEXAGON SOCKET HEAD (OPT)
-
6590110-08052-00 BOLT, HEXAGON SOCKET HEAD (OPT)BOLT, HEXAGON SOCKET HEAD (OPT)
-
668GN-2385L-10-00 JOINT, STABILIZER 1 (OPT)JOINT, STABILIZER 1 (OPT)
-
6797012-10035-00 BOLT (OPT)BOLT (OPT)
-
6895602-10200-00 NUT SELF LOCKING (OPT)NUT SELF LOCKING (OPT)
-
6995812-08040-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
7095602-08200-00 NUT, SELF-LOCKING (OPT)NUT, SELF-LOCKING (OPT)
