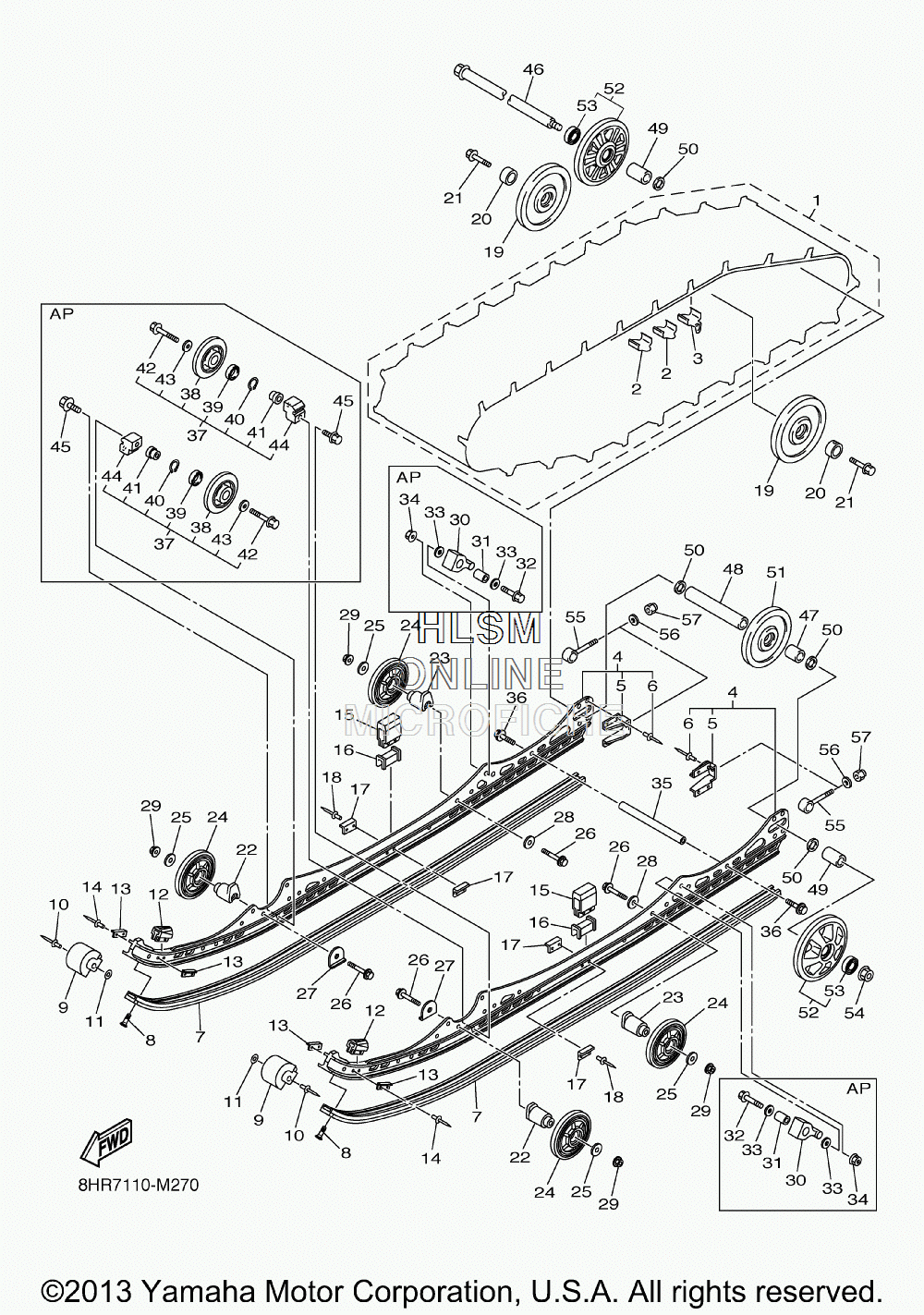

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO MTX 162 - 2014 года выпуска
-
№АртикулНазвание
-
18HR-47110-10-00 TRACK ASSYTRACK ASSY
-
28HR-47113-09-00 ...PLATE, REINFORCEMENT...PLATE, REINFORCEMENT
-
38HR-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
48HR-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
58DM-4741B-00-00 ...BRACKET...BRACKET
-
68V0-47468-00-00 ...RIVET...RIVET
-
78HR-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
890151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
98GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
1090267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1190201-047R8-00 WASHER, PLATEWASHER, PLATE
-
128ES-47456-00-00 DAMPER 1DAMPER 1
-
138K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1490267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
158GL-47457-00-00 DAMPER 2DAMPER 2
-
168GL-47573-00-00 SPACERSPACER
-
178AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1890267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
198AC-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
2090387-25005-00 COLLARCOLLAR
-
2190109-10030-00 BOLTBOLT
-
228ES-47419-20-00 BRACKET 7BRACKET 7
-
238ES-47419-00-00 BRACKET 7BRACKET 7
-
248FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2590201-101U2-00 WASHER, PLATEWASHER, PLATE
-
2695812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2790214-10004-00 WASHER, CLAWWASHER, CLAW
-
2890201-10052-00 WASHER, PLATEWASHER, PLATE
-
2995602-10200-00 NUT SELF LOCKINGNUT SELF LOCKING
-
308JH-47496-00-00 STOPPER 2 (OPT)STOPPER 2 (OPT)
-
3190387-105G5-00 COLLAR (OPT)COLLAR (OPT)
-
3297012-10050-00 BOLT (OPT)BOLT (OPT)
-
3390201-10051-00 WASHER, PLATE (OPT)WASHER, PLATE (OPT)
-
3495602-10200-00 NUT SELF LOCKING (OPT)NUT SELF LOCKING (OPT)
-
358ES-47485-00-00 SHAFT 3SHAFT 3
-
3690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
378GP-47320-10-00 SUSPENSION WHEEL COMP. (OPT)SUSPENSION WHEEL COMP. (OPT)
-
388AC-47320-00-00 ...SUSPENSION WHEEL COMP. (OPT)...SUSPENSION WHEEL COMP. (OPT)
-
3993306-00444-00 ...BEARING (OPT)...BEARING (OPT)
-
4099009-42500-00 ...CIRCLIP (OPT)...CIRCLIP (OPT)
-
418GP-47319-00-00 ...COLLAR (OPT)...COLLAR (OPT)
-
4295812-10045-00 ...BOLT, FLANGE (OPT)...BOLT, FLANGE (OPT)
-
4390201-10052-00 ...WASHER, PLATE (OPT)...WASHER, PLATE (OPT)
-
448GP-47419-10-00 ...BRACKET 7 (OPT)...BRACKET 7 (OPT)
-
4590105-10237-00 BOLT, FLANGE (OPT)BOLT, FLANGE (OPT)
-
468L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4790387-20015-00 COLLARCOLLAR
-
4890387-20016-00 COLLARCOLLAR
-
4990387-20019-00 COLLARCOLLAR
-
5090201-20022-00 WASHER, PLATEWASHER, PLATE
-
518CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
528HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5393306-00444-00 ...BEARING...BEARING
-
5495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
558DM-47479-00-00 COLLAR 3COLLAR 3
-
5692902-10600-00 WASHER, PLATEWASHER, PLATE
-
5795702-10300-00 NUT, NYLONNUT, NYLON
