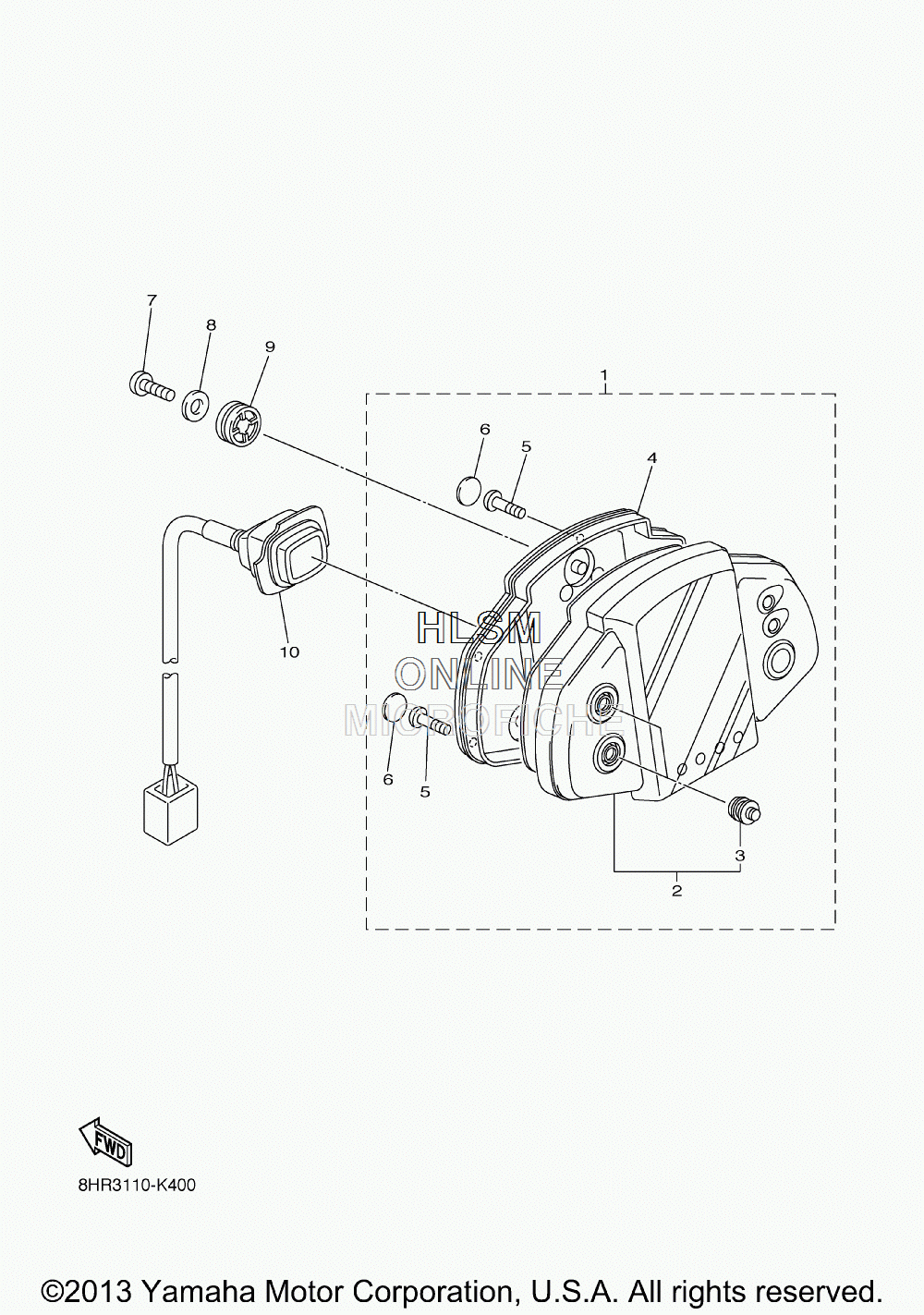

ELECTRICAL - INSTRUMENTS для Yamaha FX NYTRO XTX 1.75 - 2014 года выпуска
-
№АртикулНазвание
-
18GL-83500-30-00 METER ASSYMETER ASSY
-
28GC-W835E-00-00 ...CASE, METER UPPER...CASE, METER UPPER
-
38GL-8357U-00-00 ......RUBBER, SWITCH......RUBBER, SWITCH
-
48GC-W8357-00-00 ...CASE, SPEEDOMETER LOWER...CASE, SPEEDOMETER LOWER
-
55PW-8352S-00-00 ...SCREW, PANEL FTTING...SCREW, PANEL FTTING
-
68GC-21732-00-00 ...SEAL 1...SEAL 1
-
790167-05076-00 SCREW, TAPPINGSCREW, TAPPING
-
890201-05725-00 WASHER, PLATEWASHER, PLATE
-
94XV-83513-00-00 DAMPERDAMPER
-
108GL-82531-00-00 WIRE, LEADWIRE, LEAD
