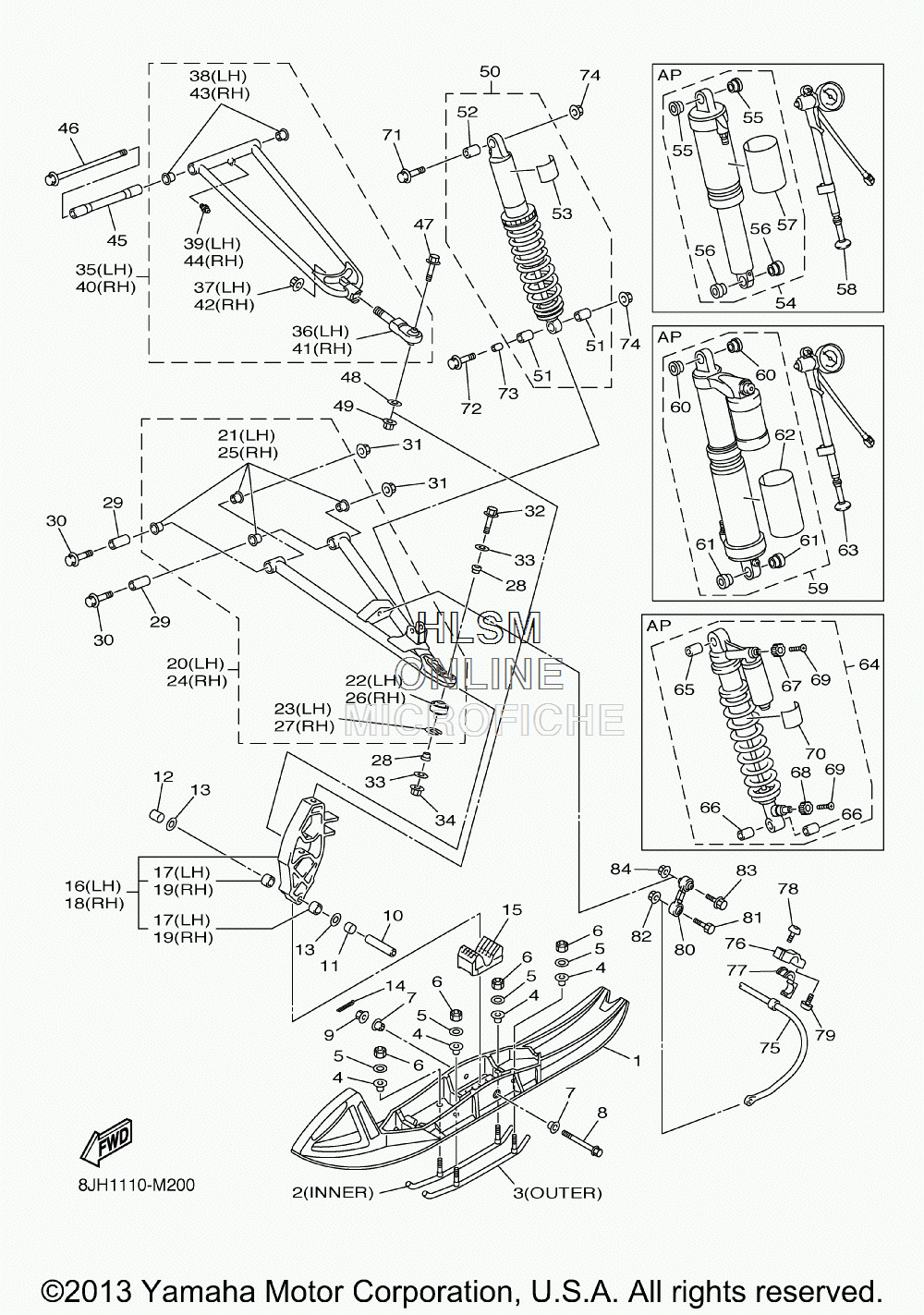

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO XTX 1.75 - 2014 года выпуска
-
№АртикулНазвание
-
18JH-F3711-00-00 SKI 1SKI 1
-
28JH-F3731-00-00 RUNNER 1RUNNER 1
-
38JH-F3732-00-00 RUNNER 2RUNNER 2
-
48JH-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
58JH-F3738-00-00 WASHER 2WASHER 2
-
68JH-F3778-00-00 NUTNUT
-
78JH-F3754-00-00 COLLAR, 1COLLAR, 1
-
890105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1090387-1012H-00 COLLARCOLLAR
-
1190387-16017-00 COLLARCOLLAR
-
1290387-16018-00 COLLARCOLLAR
-
1390201-16022-00 WASHER, PLATEWASHER, PLATE
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158HL-23743-10-00 STOPPER 1STOPPER 1
-
168HK-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1790384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
188HK-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
1990384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
208JH-23570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
2190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
228HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2399009-35700-00 ...CIRCLIP...CIRCLIP
-
248JH-23580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
2590381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
268HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2799009-35700-00 ...CIRCLIP...CIRCLIP
-
288HK-23754-00-00 COLLAR, 1COLLAR, 1
-
2990387-10065-00 COLLARCOLLAR
-
3090105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3290105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3390201-10052-00 WASHER, PLATEWASHER, PLATE
-
3495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
358JH-23540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
368GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
3795602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
3890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
3993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
408JH-23550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
418GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4295602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4390381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4493700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
458JH-23373-00-00 COLLAR 1COLLAR 1
-
4690105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
4791312-10045-00 BOLTBOLT
-
4890201-10052-00 WASHER, PLATEWASHER, PLATE
-
4995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
508JH-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
5190384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
528FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
534AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
548HB-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
558HR-2376B-09-00 ...BUSH...BUSH
-
568HR-2376B-19-00 ...BUSH...BUSH
-
578GT-F2259-50-00 ...LABEL, WARNING...LABEL, WARNING
-
588GT-F3703-00-00 ADJUSTERADJUSTER
-
598HK-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
608HR-2376B-09-00 ...BUSH...BUSH
-
618HR-2376B-19-00 ...BUSH...BUSH
-
628GT-F2259-50-00 ...LABEL, WARNING...LABEL, WARNING
-
638GT-F3703-00-00 ADJUSTERADJUSTER
-
648GL-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
658FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
6690384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
675EA-22464-00-00 ...KNOB (COMP)...KNOB (COMP)
-
685JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
6990142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
704AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
7190105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
7290105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
7390387-10N59-00 COLLARCOLLAR
-
7495602-10200-00 NUT, U FLANGENUT, U FLANGE
-
758GN-2386E-10-00 BAR, STABILIZER FRONT (15MM WHITE)BAR, STABILIZER FRONT (15MM WHITE)
-
768GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
778GN-2386G-10-00 BUSH, STABILIZER FRONT(15.1MM)BUSH, STABILIZER FRONT(15.1MM)
-
7890110-08088-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7990110-08052-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
808GN-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
8197012-10035-00 BOLTBOLT
-
8295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
8395812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
8495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
