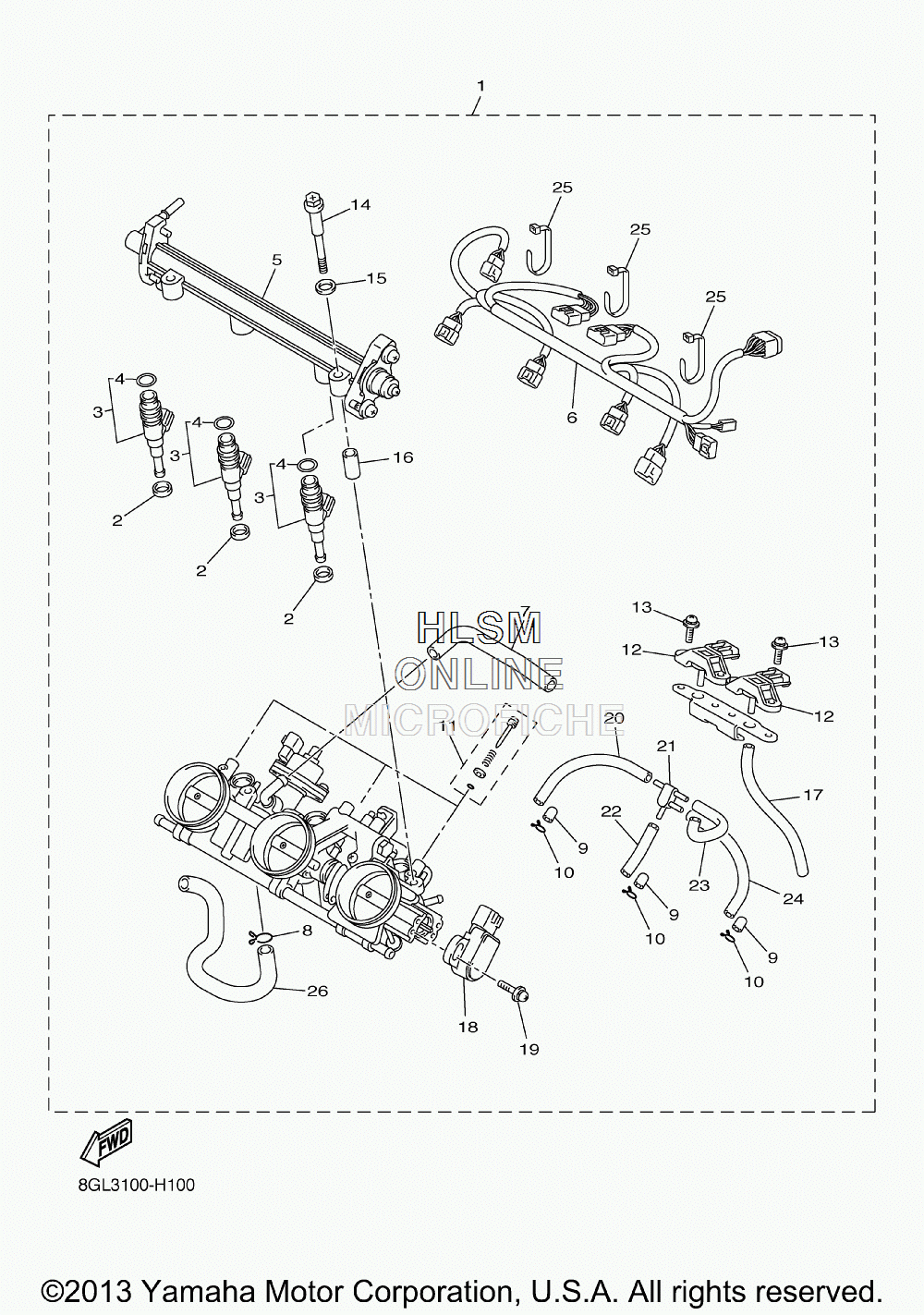

THROTTLE BODY ASSY для Yamaha FX NYTRO XTX 1.75 - 2014 года выпуска
-
№АртикулНазвание
-
18GL-13750-10-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
38GC-13761-00-00 ...INJECTOR...INJECTOR
-
48GC-13769-00-00 ......O-RING......O-RING
-
58GL-13930-00-00 ...PIPE INLET ASSEMBLY...PIPE INLET ASSEMBLY
-
68GL-82386-01-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
78GL-13895-00-00 ...HOSE, AIR...HOSE, AIR
-
890467-150A2-00 ...CLIP...CLIP
-
9895-14169-00-00 ...CAP...CAP
-
108A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
118GL-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
122C0-82380-10-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
138GL-14592-00-00 ...SCREW...SCREW
-
148GL-13573-00-00 ...BOLT 1...BOLT 1
-
158GL-13571-00-00 ...WASHER...WASHER
-
168GL-14534-00-00 ...COLLAR...COLLAR
-
175PW-14349-00-00 ...PIPE...PIPE
-
188GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
198CC-14216-10-00 ...SCREW...SCREW
-
205JW-14987-00-00 ...HOSE...HOSE
-
215PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
228FP-14349-30-00 ...PIPE...PIPE
-
238GL-13892-00-00 ...HOSE, AIR 2...HOSE, AIR 2
-
248GL-13893-00-00 ...HOSE, AIR 3...HOSE, AIR 3
-
254KM-14137-00-00 ...CLIP...CLIP
-
268GL-13545-00-00 ...HOSE 1...HOSE 1
