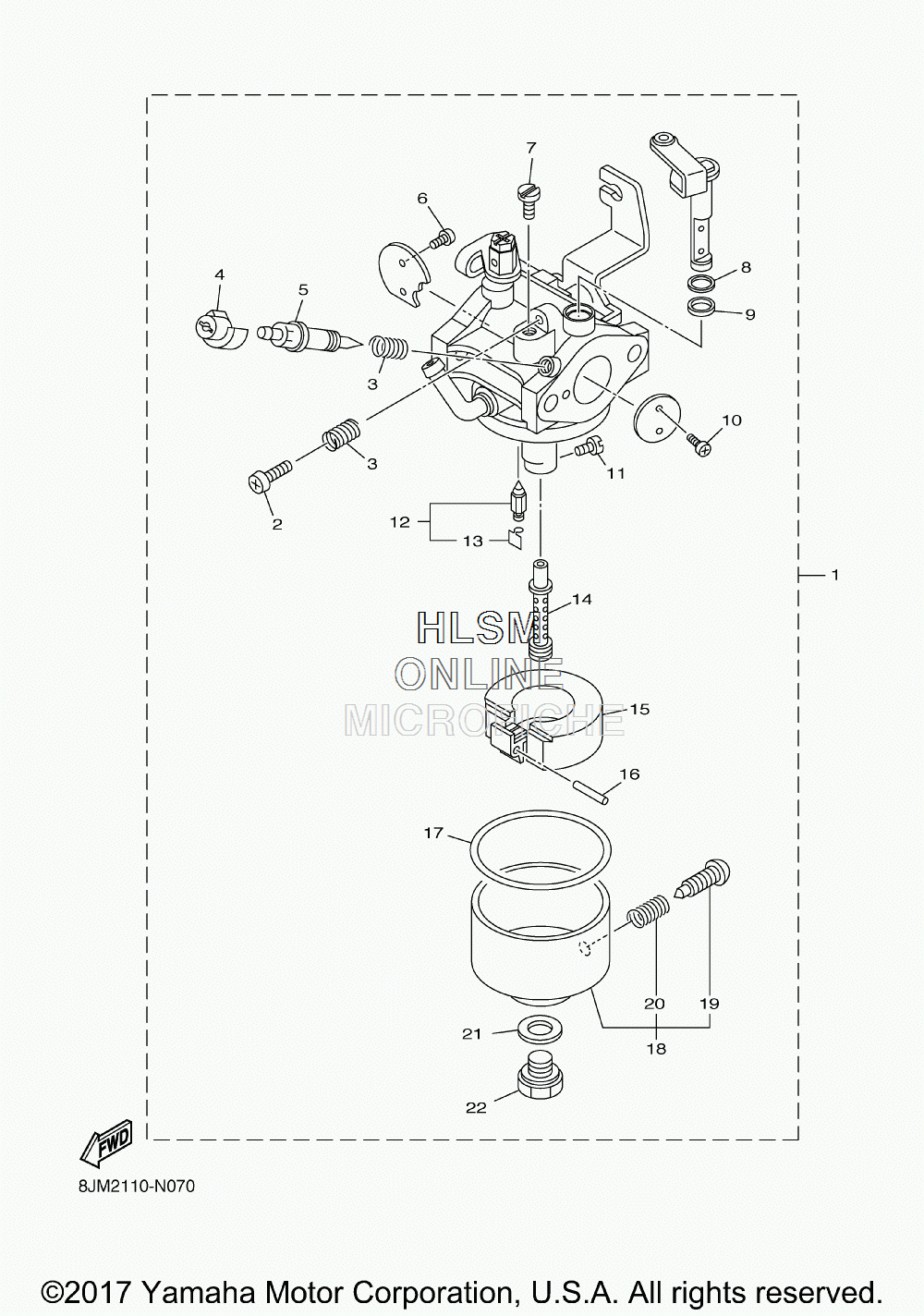

CARBURETOR ASSY для Yamaha SRX 120 - 2015 года выпуска
-
№АртикулНазвание
-
17CL-E4101-41-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
21WG-14922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
373A-14212-00-00 ...SPRING...SPRING
-
47LV-14118-00-00 ...CAP...CAP
-
57NJ-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
67RH-14486-00-00 ...SCREW, ROD...SCREW, ROD
-
7620-14142-37-A0 ...JET, PILOT (#37.5)...JET, PILOT (#37.5)
-
822F-14953-00-00 ...WASHER...WASHER
-
96K8-14597-10-00 ...WASHER...WASHER
-
107RH-14216-00-00 ...SCREW...SCREW
-
111HX-1423A-66-A0 ...JET, MAIN (#77.5)...JET, MAIN (#77.5)
-
127LG-14150-11-00 ...NEEDLE ASSY...NEEDLE ASSY
-
137EG-14159-00-00 ......CLIP......CLIP
-
147NM-1495F-2B-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
157LG-14185-00-00 ...FLOAT...FLOAT
-
1622F-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
177CN-E4997-00-00 ...SEAL...SEAL
-
187EG-14181-00-00 ...BODY, FLOAT CHAMBER 1...BODY, FLOAT CHAMBER 1
-
197E1-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
2073A-14212-00-00 ......SPRING......SPRING
-
217G0-14227-00-00 ...WASHER...WASHER
-
227NJ-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
