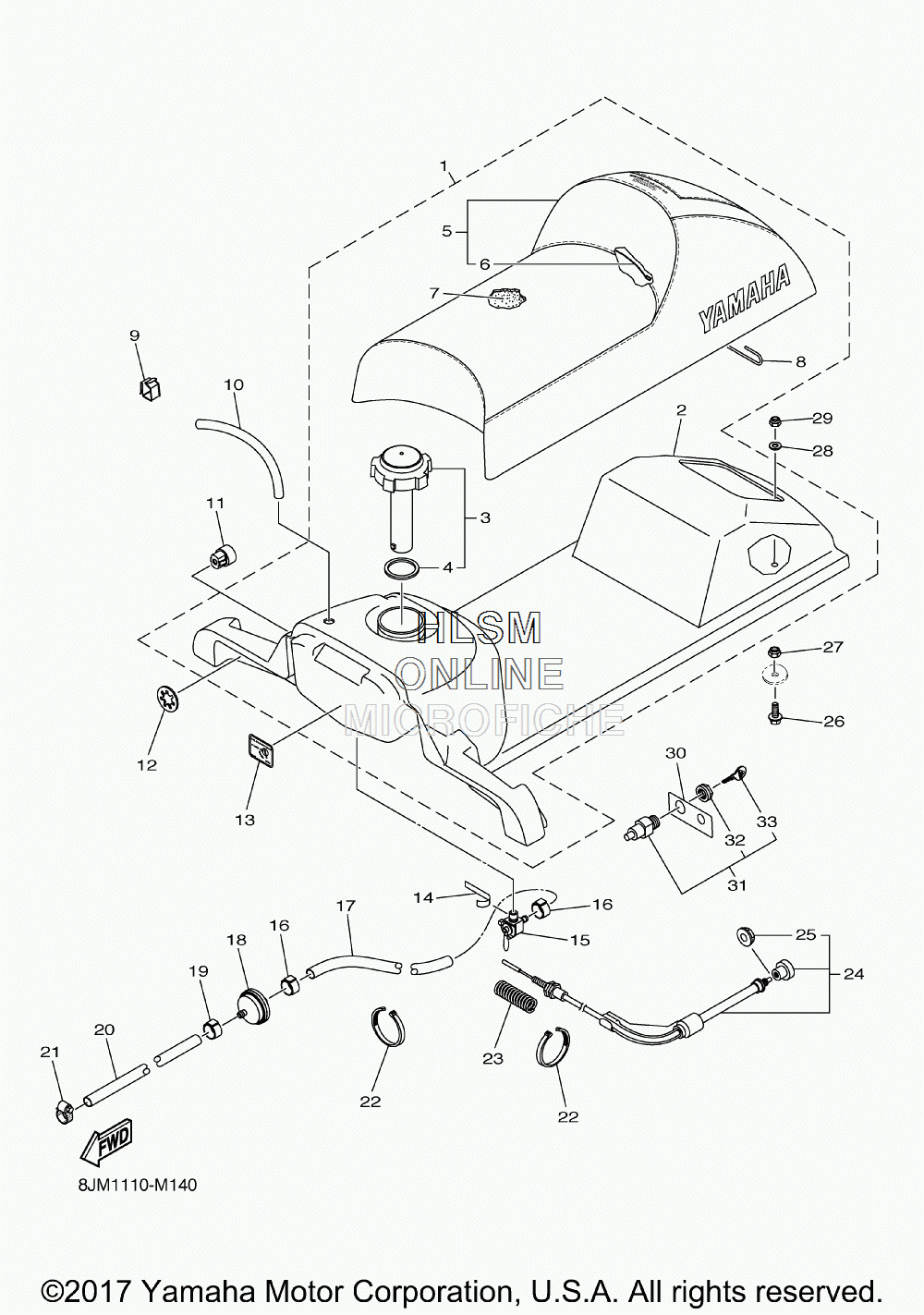

SEAT ASSY для Yamaha SRX 120 - 2015 года выпуска
-
№АртикулНазвание
-
18JM-F4710-00-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
28JM-F4111-00-00 ...TANK, FUEL...TANK, FUEL
-
38JM-F4611-00-00 ...BODY, CAP...BODY, CAP
-
48JM-F4641-00-00 ......GASKET, CAP 1......GASKET, CAP 1
-
58JM-F470F-00-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
68JM-F473J-00-00 ......WIRE......WIRE
-
78JM-F4713-00-00 ...CUSHION...CUSHION
-
88JM-F473W-00-00 ...WIRE...WIRE
-
98JM-RAC00-00-00 CLIP, 1CLIP, 1
-
108JM-RA901-00-00 HOSE, 7HOSE, 7
-
118JM-F1339-00-00 GUIDE, WIREGUIDE, WIRE
-
128JM-RA309-00-00 NUTNUT
-
138JM-F415C-00-00 LABELLABEL
-
148JM-F744H-00-00 TAPETAPE
-
158JM-F4540-00-00 FUEL COCK COMP.FUEL COCK COMP.
-
168JM-RAC01-00-00 CLIP, 2CLIP, 2
-
178JM-RA902-00-00 HOSE, 13 (25 FEET)HOSE, 13 (25 FEET)
-
188JM-F4501-00-00 FILTER, FUELFILTER, FUEL
-
198JM-RAC02-00-00 CLIP, 3CLIP, 3
-
208JM-RA903-00-00 HOSE, 11HOSE, 11
-
218JM-RAA00-00-00 HOSE CLAMP ASSY. 1HOSE CLAMP ASSY. 1
-
228JM-RAB01-00-00 CLAMP, 2 (8 INCH)CLAMP, 2 (8 INCH)
-
238JM-RAD06-00-00 SPRING, COMPRESSION 2SPRING, COMPRESSION 2
-
248JM-F6330-00-00 STARTER CABLE ASSYSTARTER CABLE ASSY
-
258JM-RA310-00-00 ...NUT, PLASTIC M24-1.5...NUT, PLASTIC M24-1.5
-
268JM-RA106-00-00 BOLT, FLANGE 1/4-20X0.75BOLT, FLANGE 1/4-20X0.75
-
278JM-RA311-00-00 NUT, SELF-LOCKING 1/4-20NUT, SELF-LOCKING 1/4-20
-
288JM-RA406-00-00 WASHER, PLAIN 1/4WASHER, PLAIN 1/4
-
298JM-RA312-00-00 NUT, CAP 1/4-20NUT, CAP 1/4-20
-
308JM-K7741-00-00 INDICATOR 1INDICATOR 1
-
318JM-H194E-00-00 BODY SWITCH COMP.BODY SWITCH COMP.
-
328JM-RA317-00-00 ...NUT, PLASTIC 5/8-32...NUT, PLASTIC 5/8-32
-
338JM-H2511-00-00 ...KEY, MAIN SWITCH...KEY, MAIN SWITCH
