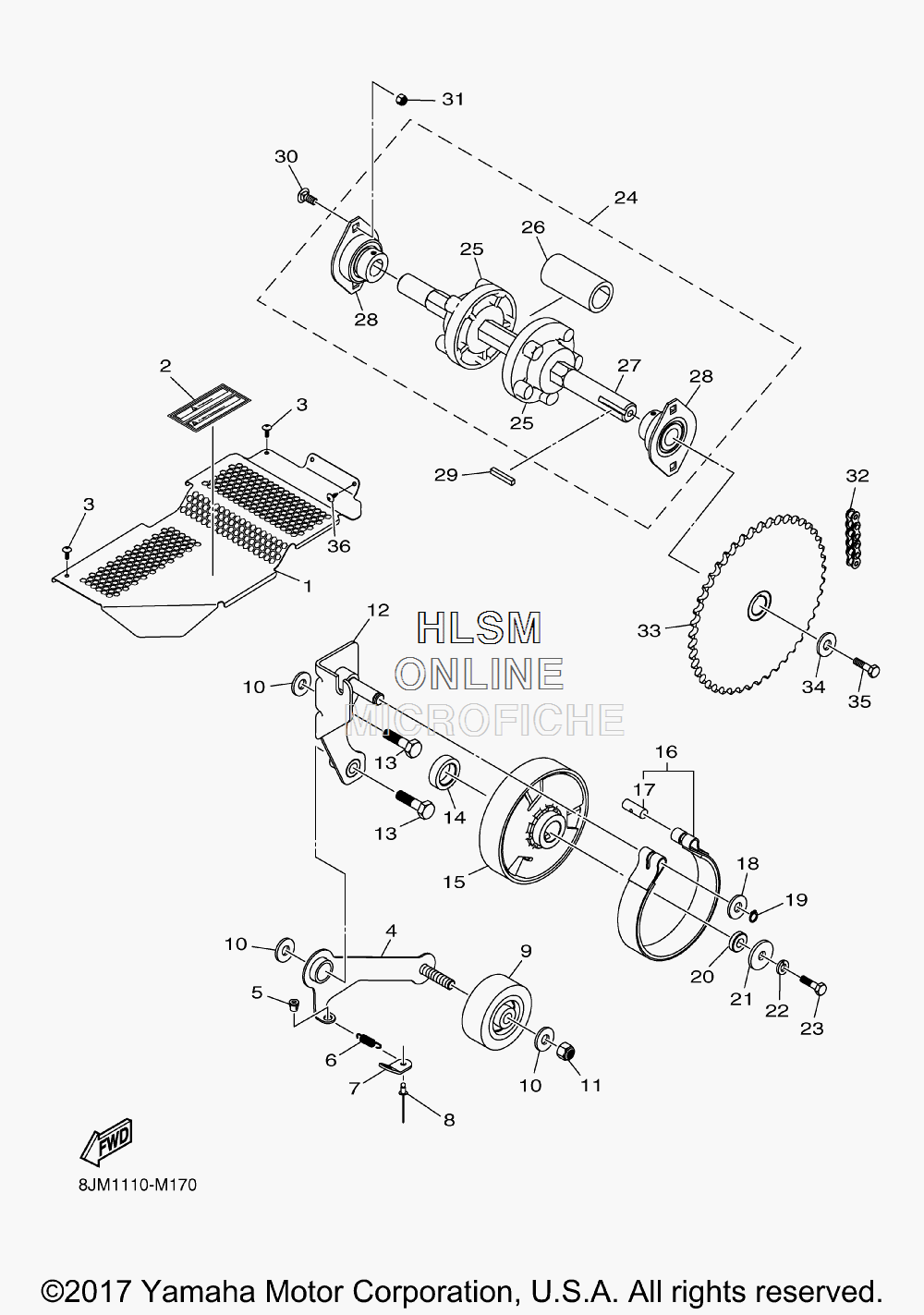

DRIVE TRAIN ASSEMBLY для Yamaha SRX 120 - 2015 года выпуска
-
№АртикулНазвание
-
18JM-K7311-01-00 GUARD, DRIVEGUARD, DRIVE
-
28JM-K7762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
38JM-RA208-00-00 SCREW, 10-12X1/2SCREW, 10-12X1/2
-
48JM-G7613-00-00 HOLDERHOLDER
-
58JM-G7538-00-00 BUSHBUSH
-
68JM-RAD05-00-00 SPRING, TENSION 4SPRING, TENSION 4
-
78JM-G2148-00-00 RETAINER, SPRINGRETAINER, SPRING
-
88JM-RA500-00-00 RIVET, BLIND 1RIVET, BLIND 1
-
98JM-G7429-00-00 ROLLERROLLER
-
108JM-RA403-00-00 WASHER, PLAIN 516WASHER, PLAIN 516
-
118JM-RA302-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
128JM-F5676-00-00 BRACKET, BRAKE PEDALBRACKET, BRAKE PEDAL
-
138JM-RA114-00-00 BOLT, HEXAGON 5/16-24X1.5BOLT, HEXAGON 5/16-24X1.5
-
148JM-RA700-00-00 COLLAR, 19COLLAR, 19
-
158JM-E760P-00-00 PRIMARY CLUTCH ASSYPRIMARY CLUTCH ASSY
-
168JM-F5719-00-00 BANDBAND
-
178JM-RAY00-00-00 ...PIN, 1...PIN, 1
-
188JM-RA405-00-00 WASHER, PLAIN 3/8WASHER, PLAIN 3/8
-
198JM-RAH00-00-00 CIRCLIP, 1CIRCLIP, 1
-
208JM-RA701-00-00 COLLAR, 34COLLAR, 34
-
218JM-RA401-00-00 WASHER, PLAIN 11/32WASHER, PLAIN 11/32
-
228JM-RA402-00-00 WASHER, SPRING 5/16WASHER, SPRING 5/16
-
238JM-RA103-00-00 BOLT, HEXAGON 5/16-24X1BOLT, HEXAGON 5/16-24X1
-
248JM-G7501-00-00 FRONT AXLE SUB-ASSYFRONT AXLE SUB-ASSY
-
258JM-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
268JM-RA705-00-00 ...COLLAR, 22...COLLAR, 22
-
278JM-G7511-00-00 ...AXLE, FRONT...AXLE, FRONT
-
288JM-RAY01-00-00 ...BEARING, 1...BEARING, 1
-
298JM-G7733-00-00 KEY, DRIVEKEY, DRIVE
-
308JM-RA123-00-00 BOLT, 5/16-18X0.75BOLT, 5/16-18X0.75
-
318JM-RA303-00-00 NUT, SELF-LOCKING 5/16-18NUT, SELF-LOCKING 5/16-18
-
328JM-E6139-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
338JM-G7587-00-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
348JM-RA404-00-00 WASHER, PLAIN 21/64WASHER, PLAIN 21/64
-
358JM-RA112-10-00 BOLT, FLANGE 5/16-18X0.875BOLT, FLANGE 5/16-18X0.875
-
368JM-RA201-00-00 SCREW, TAPPING 10-12X5/8SCREW, TAPPING 10-12X5/8
