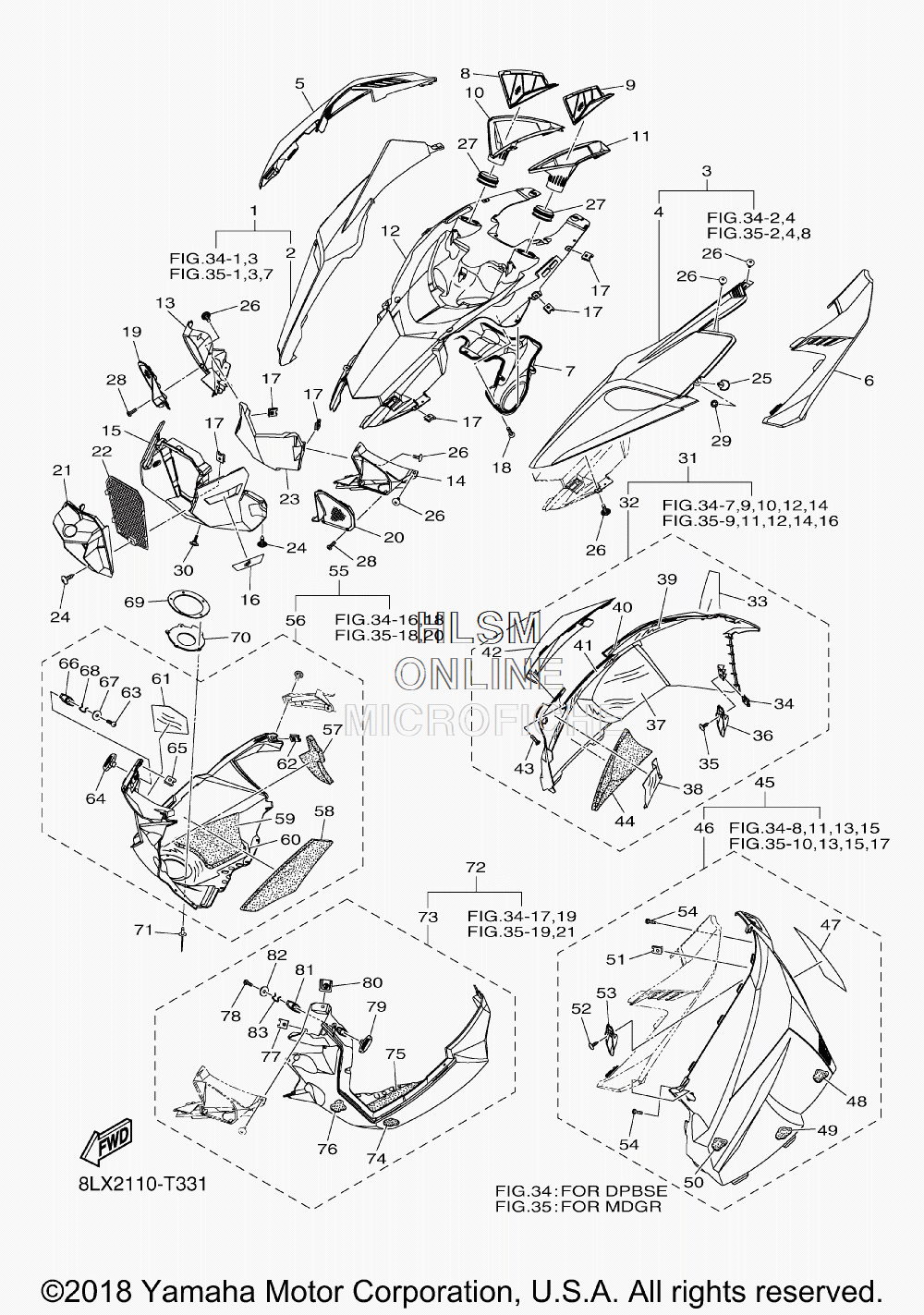

HOOD ASSY для Yamaha SIDEWINDER R TX SE - 2018 года выпуска
-
№АртикулНазвание
-
18LX-F198A-00-00 HOOD ASSY 4 (DPBSE - PURPLISH BLUE)HOOD ASSY 4 (DPBSE - PURPLISH BLUE)
-
18LX-F198A-10-00 HOOD ASSY 4 (MDGR - MEDIUM GREY)HOOD ASSY 4 (MDGR - MEDIUM GREY)
-
28KC-K7122-20-00 ...HOOD 2 (DPBSE - PURPLISH BLUE)...HOOD 2 (DPBSE - PURPLISH BLUE)
-
28LX-K7122-00-00 ...HOOD 2 (MDGR - MEDIUM GREY)...HOOD 2 (MDGR - MEDIUM GREY)
-
38LX-F197A-00-00 HOOD ASSY 3 (DPBSE - PURPLISH BLUE)HOOD ASSY 3 (DPBSE - PURPLISH BLUE)
-
38LX-F197A-10-00 HOOD ASSY 3 (MDGR - MEDIUM GREY)HOOD ASSY 3 (MDGR - MEDIUM GREY)
-
48KC-K7121-20-00 ...HOOD 1 (DPBSE - PURPLISH BLUE)...HOOD 1 (DPBSE - PURPLISH BLUE)
-
48LX-K7121-00-00 ...HOOD 1 (MDGR - MEDIUM GREY)...HOOD 1 (MDGR - MEDIUM GREY)
-
58KC-K7111-10-00 SHROUD (DPBSE - PURPLISH BLUE)SHROUD (DPBSE - PURPLISH BLUE)
-
58LX-K7111-00-00 SHROUD (MDGR - MEDIUM GREY)SHROUD (MDGR - MEDIUM GREY)
-
68KC-K7112-10-00 SHROUD 2 (DPBSE - PURPLISH BLUE)SHROUD 2 (DPBSE - PURPLISH BLUE)
-
68LX-K7112-00-00 SHROUD 2 (MDGR - MEDIUM GREY)SHROUD 2 (MDGR - MEDIUM GREY)
-
78KC-K715B-00-00 INTAKE, LOWERINTAKE, LOWER
-
88KC-K715E-00-00 SCREEN, INTAKE DUCT 2SCREEN, INTAKE DUCT 2
-
98KC-K715D-00-00 SCREEN, INTAKE DUCT 1SCREEN, INTAKE DUCT 1
-
108KC-K715G-00-00 DUCT, INTAKE 2DUCT, INTAKE 2
-
118KC-K715F-00-00 DUCT, INTAKE 1DUCT, INTAKE 1
-
128KC-K715C-00-00 INTAKE, UPPERINTAKE, UPPER
-
138KC-K715J-00-00 VENT, FRONT 2VENT, FRONT 2
-
148KC-K715H-00-00 VENT, FRONT 1VENT, FRONT 1
-
158KC-K715K-00-00 DUCT, INTAKE FRONTDUCT, INTAKE FRONT
-
168MY-H5133-00-00 TAPE, REFLECTORTAPE, REFLECTOR
-
178JP-RA352-00-00 NUT, CLIP 10NUT, CLIP 10
-
188JP-RA2A2-00-00 SCREW, 13SCREW, 13
-
198KC-K715M-00-00 BEZEL, VENT 2BEZEL, VENT 2
-
208KC-K715L-00-00 BEZEL, VENT 1BEZEL, VENT 1
-
218KC-K715N-00-00 GRILLEGRILLE
-
228KC-K7123-00-00 GUIDE 1GUIDE 1
-
238KC-K715P-00-00 SHUT, INTAKESHUT, INTAKE
-
248KC-RA290-00-00 SCREWSCREW
-
258JP-RAK02-00-00 PIN, 2PIN, 2
-
268JP-RA202-00-00 SCREW, TAPPING 1/4-20X0.5SCREW, TAPPING 1/4-20X0.5
-
278KC-K715R-00-00 SEAL, INTAKESEAL, INTAKE
-
288KC-RA238-00-00 .SCREW, 4.SCREW, 4
-
298JP-RA345-00-00 NUT, 1NUT, 1
-
308KC-RA239-00-00 SCREW, 5SCREW, 5
-
318LX-K810G-00-00 SIDE PANEL COMP (RIGHT HAND) (DPBSE - PURPLISH BLUE)SIDE PANEL COMP (RIGHT HAND) (DPBSE - PURPLISH BLUE)
-
318LX-K810G-10-00 SIDE PANEL COMP (RIGHT HAND) (MDGR - MEDIUM GREY)SIDE PANEL COMP (RIGHT HAND) (MDGR - MEDIUM GREY)
-
328KC-K8140-10-00 ...SHELL SIDE PANEL ASSY 2 (MDGR - MEDIUM GREY)...SHELL SIDE PANEL ASSY 2 (MDGR - MEDIUM GREY)
-
328KC-K8140-20-00 ...SHELL SIDE PANEL ASSY 2 (DPBSE - PURPLISH BLUE)...SHELL SIDE PANEL ASSY 2 (DPBSE - PURPLISH BLUE)
-
338KC-K7761-70-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
348JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
358KC-RA290-00-00 ......SCREW......SCREW
-
368KC-K715T-00-00 ......HOOK 2......HOOK 2
-
378KC-K7552-00-00 ......PROTECTOR 2......PROTECTOR 2
-
388KC-K7551-01-00 ......PROTECTOR 1......PROTECTOR 1
-
398KC-K7553-01-00 ......PROTECTOR 3......PROTECTOR 3
-
408KC-K7554-00-00 ......PROTECTOR 4......PROTECTOR 4
-
418KC-K7555-00-00 ......PROTECTOR 5......PROTECTOR 5
-
428KC-K715U-00-00 ......VENT, SIDE 1......VENT, SIDE 1
-
438KC-RA238-00-00 ......SCREW, 4......SCREW, 4
-
448KC-K7278-00-00 ......DAMPER, NOISE 18......DAMPER, NOISE 18
-
458LX-K810F-00-00 SIDE PANEL COMP (LEFT HAND) (DPBSE - PURPLISH BLUE)SIDE PANEL COMP (LEFT HAND) (DPBSE - PURPLISH BLUE)
-
458LX-K810F-10-00 SIDE PANEL COMP (LEFT HAND) (MDGR - MEDIUM GREY)SIDE PANEL COMP (LEFT HAND) (MDGR - MEDIUM GREY)
-
468KC-K8130-10-00 ...SHELL SIDE PANEL ASSY 1 (MDGR - MEDIUM GREY)...SHELL SIDE PANEL ASSY 1 (MDGR - MEDIUM GREY)
-
468KC-K8130-20-00 ...SHELL SIDE PANEL ASSY 1 (DPBSE - PURPLISH BLUE)...SHELL SIDE PANEL ASSY 1 (DPBSE - PURPLISH BLUE)
-
478KC-K7761-S0-00 ......LABEL, WARNING 1......LABEL, WARNING 1
-
488KC-K7279-00-00 ......DAMPER, NOISE 19......DAMPER, NOISE 19
-
498KC-K7277-00-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
508KC-K7277-10-00 ......DAMPER, NOISE 17......DAMPER, NOISE 17
-
518JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
528KC-RA290-00-00 ......SCREW......SCREW
-
538KC-K715S-00-00 ......HOOK 1......HOOK 1
-
548KC-RA238-00-00 ......SCREW, 4......SCREW, 4
-
558LX-F1983-00-00 HOOD 2 (DPBSE - PURPLISH BLUE)HOOD 2 (DPBSE - PURPLISH BLUE)
-
558LX-F1983-10-00 HOOD 2 (MDGR - MEDIUM GREY)HOOD 2 (MDGR - MEDIUM GREY)
-
568KC-F198H-00-00 ...HOOD 4 (DPBSE - PURPLISH BLUE)...HOOD 4 (DPBSE - PURPLISH BLUE)
-
568KC-K8140-50-00 ...SHELL SIDE PANEL ASSY 2 (MDGR - MEDIUM GREY)...SHELL SIDE PANEL ASSY 2 (MDGR - MEDIUM GREY)
-
578KC-K7276-00-00 ......DAMPER, NOISE 16......DAMPER, NOISE 16
-
588KC-K7275-00-00 ......DAMPER, NOISE 15......DAMPER, NOISE 15
-
598KC-K7274-00-00 ......DAMPER, NOISE 14......DAMPER, NOISE 14
-
608KC-K7556-01-00 ......PROTECTOR 6......PROTECTOR 6
-
618KC-K7557-10-00 ......PROTECTOR 7......PROTECTOR 7
-
628JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
638JP-RA2A2-00-00 ......SCREW, 13......SCREW, 13
-
648KC-K7324-00-00 ......KNOB......KNOB
-
658JP-RA350-00-00 ......NUT, CLIP 1/4......NUT, CLIP 1/4
-
668KC-K7153-00-00 ......PLATE, BACK UP 1......PLATE, BACK UP 1
-
678JP-RA429-00-00 ......WASHER......WASHER
-
688JP-RAC15-00-00 ......CLIP, 6......CLIP, 6
-
698KC-K8181-00-00 PLATE 1PLATE 1
-
708KC-G1138-00-00 SEAL, EXT 1SEAL, EXT 1
-
718JP-RA523-00-00 RIVET, 14RIVET, 14
-
728LX-F1982-00-00 HOOD 1 (DPBSE - PURPLISH BLUE)HOOD 1 (DPBSE - PURPLISH BLUE)
-
728LX-F1982-10-00 HOOD 1 (MDGR - MEDIUM GREY)HOOD 1 (MDGR - MEDIUM GREY)
-
738KC-F197H-00-00 ...HOOD 3 (DPBSE - PURPLISH BLUE)...HOOD 3 (DPBSE - PURPLISH BLUE)
-
738KC-K8130-50-00 ...SHELL SIDE PANEL ASSY 1 (MDGR - MEDIUM GREY)...SHELL SIDE PANEL ASSY 1 (MDGR - MEDIUM GREY)
-
748KC-K7271-00-00 ......DAMPER, NOISE 11......DAMPER, NOISE 11
-
758KC-K7272-00-00 ......DAMPER, NOISE 12......DAMPER, NOISE 12
-
768KC-K7273-00-00 ......DAMPER, NOISE 13......DAMPER, NOISE 13
-
778JP-RA352-00-00 ......NUT, CLIP 10......NUT, CLIP 10
-
788JP-RA2A2-00-00 ......SCREW, 13......SCREW, 13
-
798KC-K7324-00-00 ......KNOB......KNOB
-
808JP-RA350-00-00 ......NUT, CLIP 1/4......NUT, CLIP 1/4
-
818KC-K7153-00-00 ......PLATE, BACK UP 1......PLATE, BACK UP 1
-
828JP-RA429-00-00 ......WASHER......WASHER
-
838JP-RAC15-00-00 ......CLIP, 6......CLIP, 6
