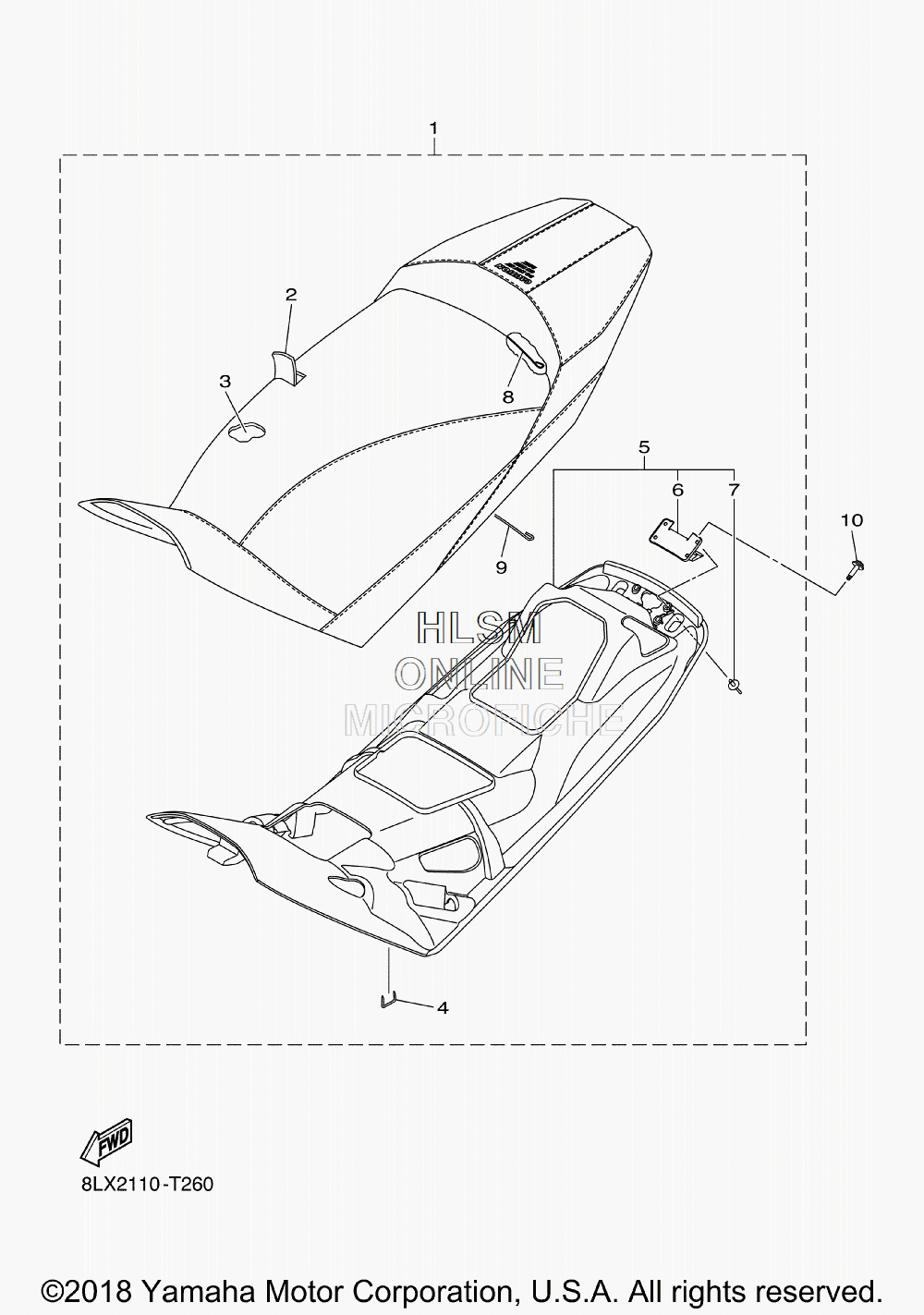

SEAT ASSY для Yamaha SIDEWINDER R TX SE - 2018 года выпуска

№

Артикул

Название
1

8LX-F4710-00-00 SINGLE SEAT ASSY (DPBSE - PURPLISH BLUE)

SINGLE SEAT ASSY (DPBSE - PURPLISH BLUE)

241 760 ₽
1

8LX-F4710-10-00 SINGLE SEAT ASSY (MDGR - MEDIUM GREY)

SINGLE SEAT ASSY (MDGR - MEDIUM GREY)

0 ₽
2

8LX-F470F-10-00 ...SEAT COVER COMP (MDGR - MEDIUM GREY)

...SEAT COVER COMP (MDGR - MEDIUM GREY)

0 ₽
2

8LX-F470F-00-00 ...SEAT COVER COMP (DPBSE - PURPLISH BLUE)

...SEAT COVER COMP (DPBSE - PURPLISH BLUE)

144 260 ₽
3

8JP-F4713-00-00 ...CUSHION

...CUSHION

57 170 ₽
4

8JM-F473U-00-00 ...STAPLE

...STAPLE

67 400 ₽
5

8KC-F470E-00-00 ...BOTTOM PLATE COMP.

...BOTTOM PLATE COMP.

29 130 ₽
6

8JP-F475H-00-00 ......BRACKET, SEAT LEVER 1

......BRACKET, SEAT LEVER 1

8 500 ₽
7

8JP-RA523-00-00 ......RIVET, 14

......RIVET, 14

620 ₽
8

8JP-F473J-00-00 ...WIRE

...WIRE

2 200 ₽
9

8JP-F1664-00-00 ...WIRE, 2

...WIRE, 2

940 ₽
10

8JP-RA270-00-00 SCREW, M6X18

SCREW, M6X18

630 ₽
