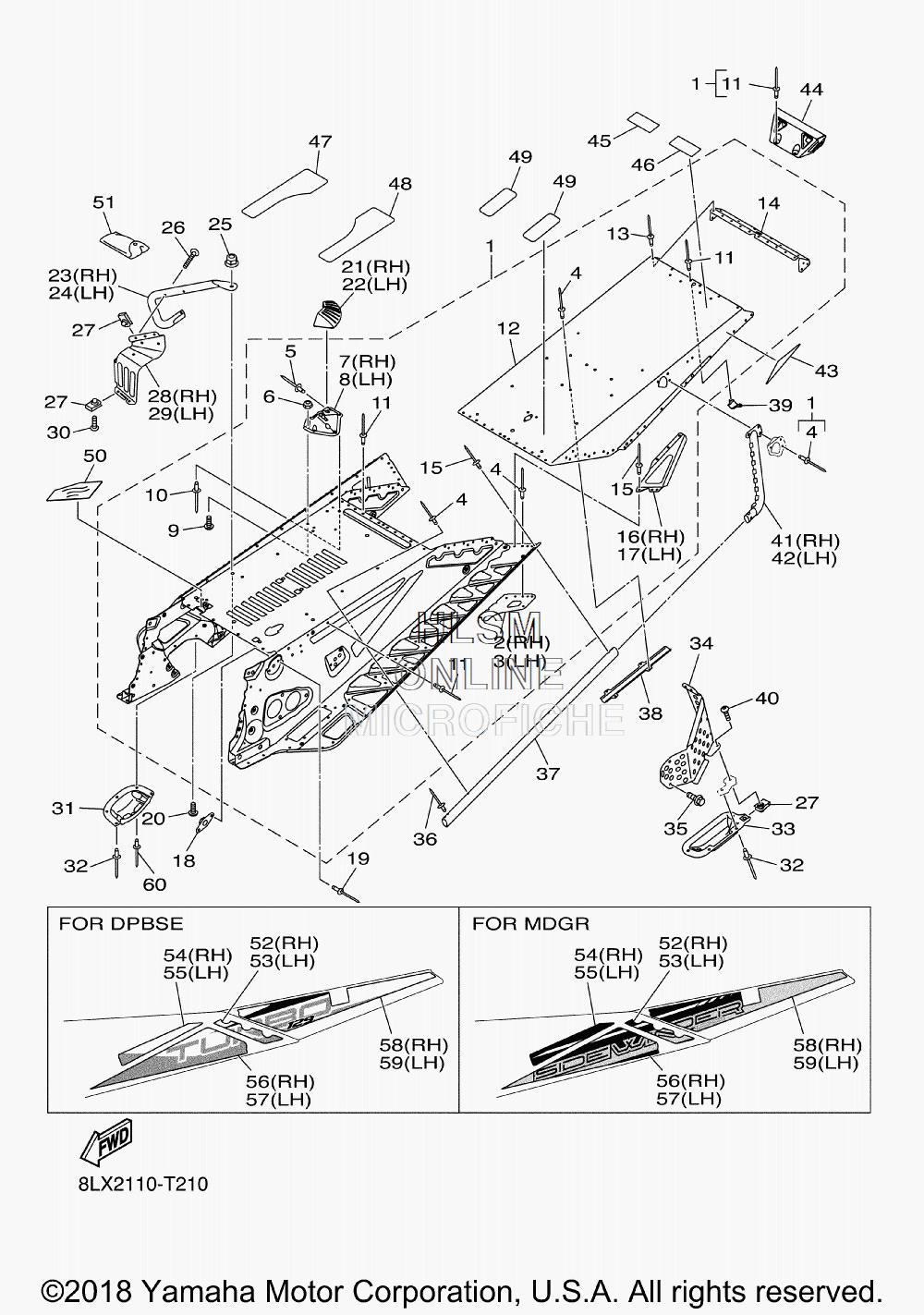

TUNNEL EXTENSION ASSEMBLY для Yamaha SIDEWINDER R TX SE - 2018 года выпуска
-
№АртикулНазвание
-
18LX-F1950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
28JW-F1954-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
38JW-F1944-00-00 ...BRACKET, REAR TRACK SUSPENSION...BRACKET, REAR TRACK SUSPENSION
-
48JP-RA520-00-00 ...RIVET, 11...RIVET, 11
-
58JP-RA532-00-00 ...RIVET, 20...RIVET, 20
-
68JP-RA370-00-00 ...NUT, HEX LOCKING...NUT, HEX LOCKING
-
78JW-F115M-00-00 ...BRACKET, MEMBER 2...BRACKET, MEMBER 2
-
88JW-F115L-00-00 ...BRACKET, MEMBER 1...BRACKET, MEMBER 1
-
98JP-RA239-00-00 ...SCREW, 5...SCREW, 5
-
108JP-RA528-00-00 ...RIVET, 3/16...RIVET, 3/16
-
118JP-RA529-00-00 ...RIVET, 17...RIVET, 17
-
128LX-F1912-00-00 ...PANEL, SUB FRAME 1...PANEL, SUB FRAME 1
-
138JP-RA514-10-00 ...RIVET, 5...RIVET, 5
-
148JW-F1923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
158JP-RA527-00-00 ...RIVET, 3/16...RIVET, 3/16
-
168JW-F1135-00-00 ...GUSSET...GUSSET
-
178JW-F1134-00-00 ...GUSSET...GUSSET
-
188JP-F1919-00-00 BRACKETBRACKET
-
198JP-RA519-00-00 RIVET, 10RIVET, 10
-
208JP-RA272-00-00 SCREW, M8X1.25X20SCREW, M8X1.25X20
-
218JP-F2556-00-00 SUPPORT, FUEL TANK 2SUPPORT, FUEL TANK 2
-
228JP-F2555-00-00 SUPPORT, FUEL TANK 1SUPPORT, FUEL TANK 1
-
238KC-F192E-00-00 REINFORCEMENT, FRAMEREINFORCEMENT, FRAME
-
248KC-F1929-00-00 REINFORCEMENT, FRAME SIDEREINFORCEMENT, FRAME SIDE
-
258JM-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
268JP-RA247-00-00 SCREW, M5X0.8X35SCREW, M5X0.8X35
-
278JP-RA353-00-00 NUT, CLIP M5NUT, CLIP M5
-
288JW-F1996-00-00 REINFORCEMENT SUB FRAME FRONT 2REINFORCEMENT SUB FRAME FRONT 2
-
298JW-F1995-00-00 REINFORCEMENT SUB FRAME FRONT 1REINFORCEMENT SUB FRAME FRONT 1
-
308JP-RA251-00-00 SCREW, M5X1.0X16SCREW, M5X1.0X16
-
318JP-F2147-00-00 PROTECTOR, CHAINPROTECTOR, CHAIN
-
328JP-RA523-00-00 RIVET, 14RIVET, 14
-
338JP-F5717-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
348JW-F5718-00-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
358JP-RA179-00-00 BOLT, FLANGE M6X1.0X12BOLT, FLANGE M6X1.0X12
-
368JP-RA526-00-00 RIVET, 3/16RIVET, 3/16
-
378JW-F1926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
388LX-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
398MG-H258A-00-00 EXTENSION, WIRE HARNESSEXTENSION, WIRE HARNESS
-
408JP-RA244-00-00 SCREW, M5X0.8X20SCREW, M5X0.8X20
-
418JW-F1137-00-00 GUSSETGUSSET
-
428JW-F1136-00-00 GUSSETGUSSET
-
438JP-F151A-00-00 LABEL 1LABEL 1
-
448JW-F117E-10-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
458JP-K7762-70-00 LABEL, WARNING 2 (ENGLISH)LABEL, WARNING 2 (ENGLISH)
-
468JP-K7762-S0-00 LABEL, WARNING 2 (FRENCH)LABEL, WARNING 2 (FRENCH)
-
478JP-F197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
488JP-F197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
498LN-F195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
508KC-K7557-10-00 .PROTECTOR 7.PROTECTOR 7
-
518JP-F8100-00-00 TOOL KITTOOL KIT
-
528LX-F199D-00-00 GRAPHIC 4 (DPBSE - PURPLISH BLUE)GRAPHIC 4 (DPBSE - PURPLISH BLUE)
-
528LX-F199D-10-00 GRAPHIC 4 (MDGR - MEDIUM GREY)GRAPHIC 4 (MDGR - MEDIUM GREY)
-
538LX-F199C-00-00 GRAPHIC 3 (DPBSE - PURPLISH BLUE)GRAPHIC 3 (DPBSE - PURPLISH BLUE)
-
538LX-F199C-10-00 GRAPHIC 3 (MDGR - MEDIUM GREY)GRAPHIC 3 (MDGR - MEDIUM GREY)
-
548LX-F199B-00-00 GRAPHIC 2 (DPBSE - PURPLISH BLUE)GRAPHIC 2 (DPBSE - PURPLISH BLUE)
-
548LX-F199B-10-00 GRAPHIC 2 (MDGR - MEDIUM GREY)GRAPHIC 2 (MDGR - MEDIUM GREY)
-
558LX-F199A-00-00 GRAPHIC 1 (DPBSE - PURPLISH BLUE)GRAPHIC 1 (DPBSE - PURPLISH BLUE)
-
558LX-F199A-10-00 GRAPHIC 1 (MDGR - MEDIUM GREY)GRAPHIC 1 (MDGR - MEDIUM GREY)
-
568LX-F199L-00-00 GRAPHIC 6 (DPBSE - PURPLISH BLUE)GRAPHIC 6 (DPBSE - PURPLISH BLUE)
-
568LX-F199L-10-00 GRAPHIC 6 (MDGR - MEDIUM GREY)GRAPHIC 6 (MDGR - MEDIUM GREY)
-
578LX-F199K-00-00 GRAPHIC 5 (DPBSE - PURPLISH BLUE)GRAPHIC 5 (DPBSE - PURPLISH BLUE)
-
578LX-F199K-10-00 GRAPHIC 5 (MDGR - MEDIUM GREY)GRAPHIC 5 (MDGR - MEDIUM GREY)
-
588LX-F199N-00-00 GRAPHIC 8 (DPBSE - PURPLISH BLUE)GRAPHIC 8 (DPBSE - PURPLISH BLUE)
-
588LX-F199N-10-00 GRAPHIC 8 (MDGR - MEDIUM GREY)GRAPHIC 8 (MDGR - MEDIUM GREY)
-
598LX-F199M-00-00 GRAPHIC 7 (DPBSE - PURPLISH BLUE)GRAPHIC 7 (DPBSE - PURPLISH BLUE)
-
598LX-F199M-10-00 GRAPHIC 7 (MDGR - MEDIUM GREY)GRAPHIC 7 (MDGR - MEDIUM GREY)
-
608JP-RA524-00-00 RIVET, 15RIVET, 15
