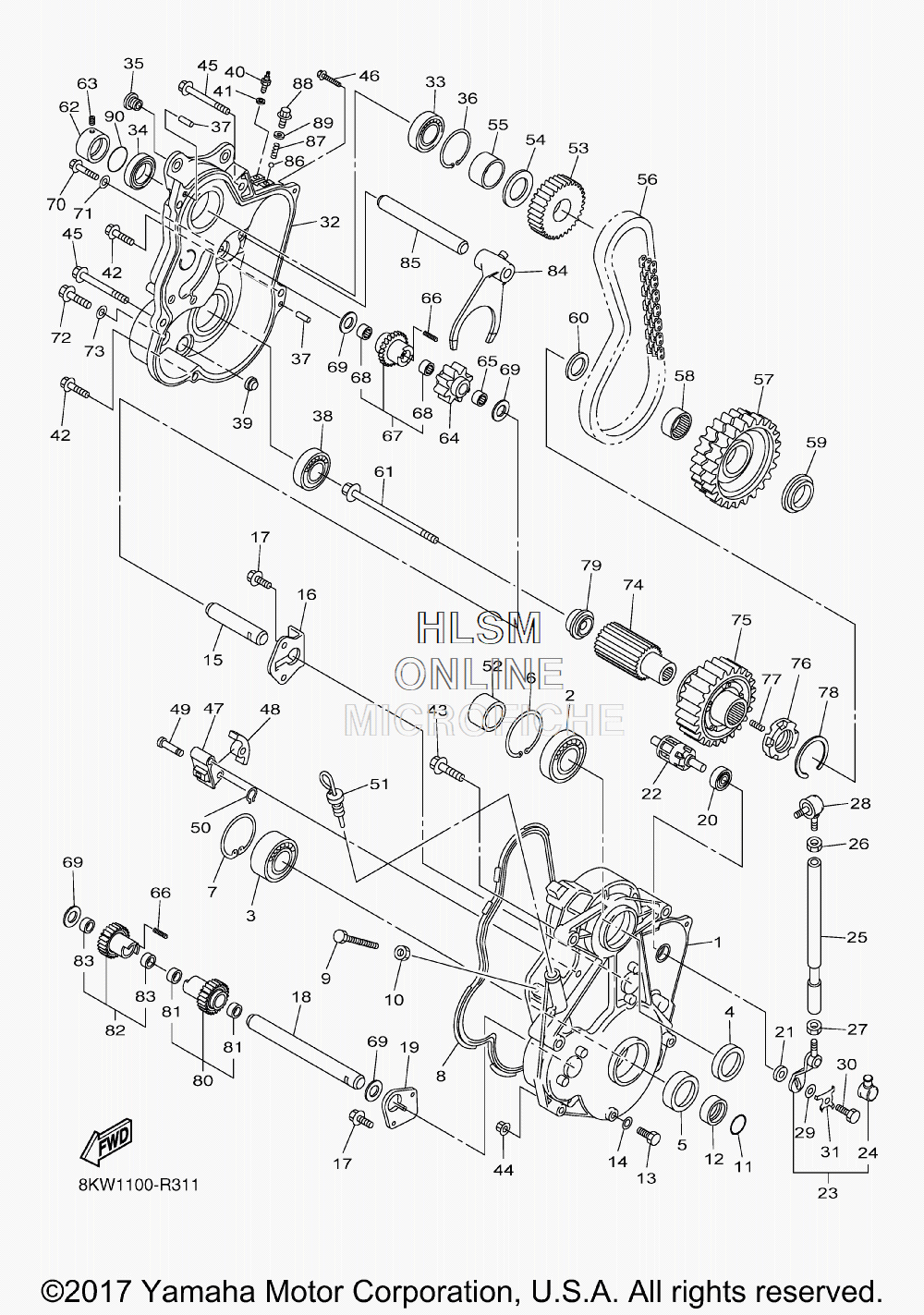

CHAINCASE ASSY для Yamaha VK PROFESSIONAL II - 2018 года выпуска
-
№АртикулНазвание
-
18GS-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393304-20511-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88GS-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10600-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397002-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158GS-1761A-00-00 SHAFT 1SHAFT 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
188JE-1761E-00-00 SHAFT 2SHAFT 2
-
198GS-47591-00-00 PLATEPLATE
-
2093306-00208-00 BEARINGBEARING
-
2193102-15212-00 OIL SEALOIL SEAL
-
228GS-18541-01-00 CAM, SHIFTCAM, SHIFT
-
238GS-18191-00-00 LEVERLEVER
-
242H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
258GS-18115-00-00 ROD, SHIFTROD, SHIFT
-
2690170-08358-00 NUTNUT
-
2795307-08700-00 NUTNUT
-
283X3-18157-10-00 JOINT 2JOINT 2
-
2990201-06099-00 WASHER, PLATEWASHER, PLATE
-
3090101-06047-00 BOLTBOLT
-
318GS-47554-01-00 WASHER, LOCKWASHER, LOCK
-
328GS-47543-10-00 CAP, HOUSINGCAP, HOUSING
-
3393306-20511-00 BEARINGBEARING
-
3493102-35010-00 OIL SEALOIL SEAL
-
3590179-10679-00 NUTNUT
-
3699009-52500-00 CIRCLIPCIRCLIP
-
3793606-20044-00 PIN, DOWELPIN, DOWEL
-
3893306-00711-00 BEARINGBEARING
-
393Y1-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
405LP-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
4190430-10148-00 GASKETGASKET
-
4295822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4395822-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4595822-10090-00 BOLT, FLANGEBOLT, FLANGE
-
4695822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
478HX-47613-00-00 HOLDERHOLDER
-
488HX-47611-00-00 TENSIONERTENSIONER
-
4990249-12216-00 PINPIN
-
5099009-12400-00 CIRCLIPCIRCLIP
-
518GS-47546-00-00 LEVEL, OILLEVEL, OIL
-
5290387-30005-00 COLLARCOLLAR
-
538FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T)SPROCKET, CHAIN DRIVE (20T)
-
5490208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5590387-26007-00 COLLARCOLLAR
-
5694890-09068-00 CHAIN (68L)CHAIN (68L)
-
578KW-47587-00-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
5893317-33179-00 BEARINGBEARING
-
5990387-2008G-00 COLLARCOLLAR
-
6090201-320S3-00 WASHER, PLATEWASHER, PLATE
-
6190105-10223-00 BOLT, FLANGEBOLT, FLANGE
-
6290387-25018-00 COLLARCOLLAR
-
6390113-06064-00 BOLT, SETBOLT, SET
-
648FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6593317-21578-00 BEARINGBEARING
-
6690501-050A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
678JE-1714A-00-00 REVERSE PINION ASSY.REVERSE PINION ASSY.
-
6893317-21578-00 ...BEARING...BEARING
-
6990201-16245-00 WASHER, PLATEWASHER, PLATE
-
7090105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7190210-06006-00 WASHER, SEALWASHER, SEAL
-
7290105-08153-00 BOLT, FLANGEBOLT, FLANGE
-
7390210-08017-00 WASHER, SEALWASHER, SEAL
-
748GS-47571-00-00 JOURNAL 1JOURNAL 1
-
758JE-17243-00-00 GEAR, REVERSE WHEEL 1GEAR, REVERSE WHEEL 1
-
768CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7790501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7893440-39175-00 CIRCLIPCIRCLIP
-
798GS-47564-00-00 COLLARCOLLAR
-
808KW-17210-00-00 1ST WHEEL GEAR ASSY1ST WHEEL GEAR ASSY
-
8193317-21578-00 ...BEARING...BEARING
-
828JE-17110-00-00 1ST PINION GEAR ASSY1ST PINION GEAR ASSY
-
8393317-21578-00 ...BEARING...BEARING
-
848GS-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
858GS-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
8693503-08007-00 BALLBALL
-
8790501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8890105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
8990430-14043-00 GASKETGASKET
-
9093210-25642-00 O-RINGO-RING
