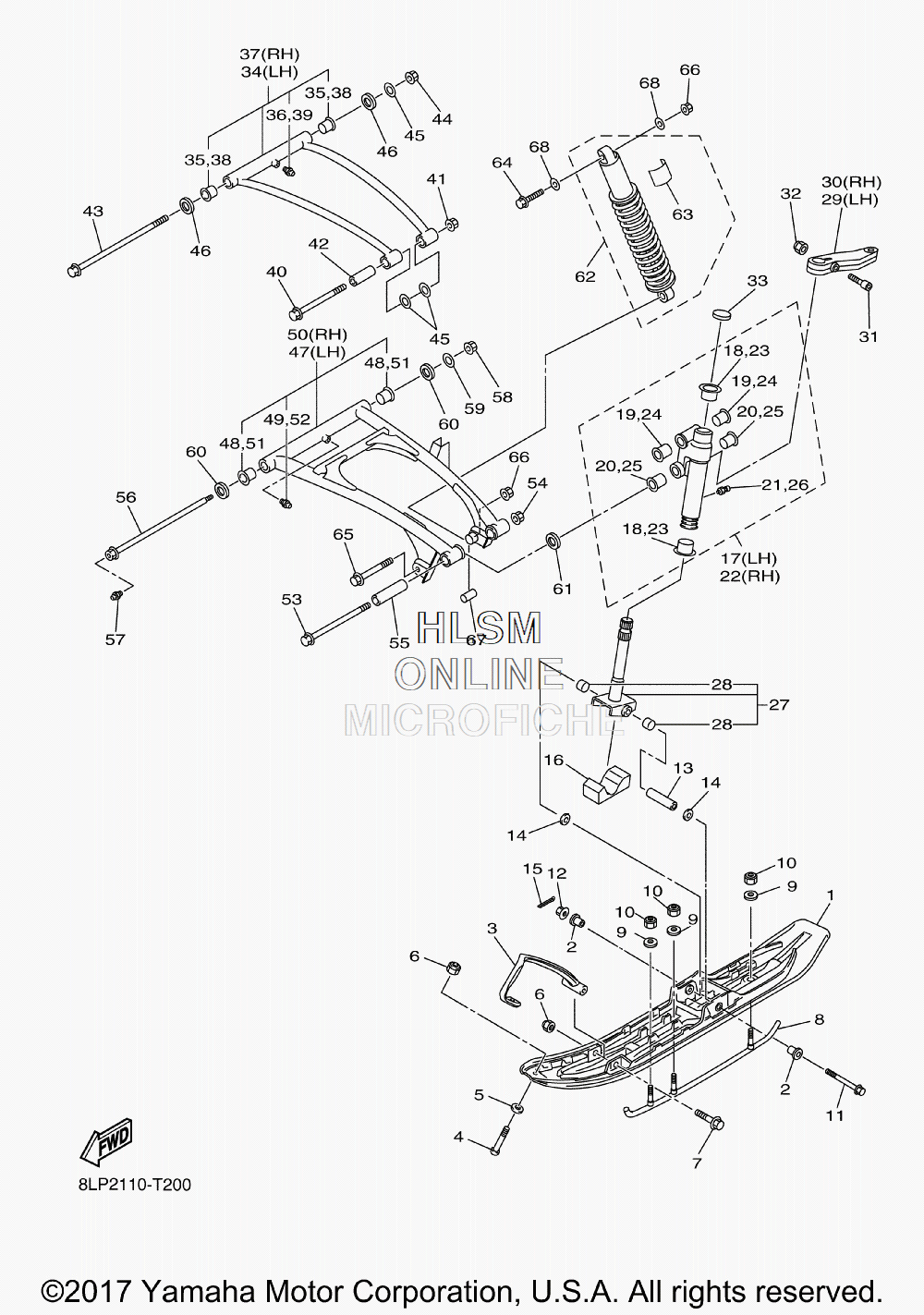

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VK PROFESSIONAL II - 2018 года выпуска
-
№АртикулНазвание
-
18LP-F3711-00-00 SKI 1SKI 1
-
28EX-F3754-00-00 COLLAR 1COLLAR 1
-
38KC-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
48KC-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
58KC-F3737-00-00 WASHER 1WASHER 1
-
68KC-F3778-00-00 NUTNUT
-
78KC-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88LP-F3731-00-00 RUNNER 1RUNNER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108JH-F3778-00-00 NUTNUT
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1390387-1012H-00 COLLARCOLLAR
-
1490201-10052-00 WASHER, PLATEWASHER, PLATE
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168ES-23743-00-00 STOPPER 1STOPPER 1
-
178ES-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1890381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
1990381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2193700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
228ES-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2390381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2490381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2590381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
2693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
278ES-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2890384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
298FN-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
308FN-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3190110-08104-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3295602-08200-00 NUT, U FLANGENUT, U FLANGE
-
333YK-22472-40-00 CAP, CASECAP, CASE
-
348GS-23540-10-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
3590381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3693700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
378GS-23550-10-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
3890381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
3993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
4090105-10230-00 BOLT, FLANGEBOLT, FLANGE
-
4195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4290387-10099-00 COLLARCOLLAR
-
4390109-10056-00 BOLTBOLT
-
4495602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
4590201-10052-00 WASHER, PLATEWASHER, PLATE
-
4690209-15N50-00 WASHERWASHER
-
478GS-23570-10-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4890381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4993700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
508GS-23580-10-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
5190381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
5293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
5390105-12078-00 BOLT, FLANGEBOLT, FLANGE
-
5495602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5590387-12054-00 COLLARCOLLAR
-
5690401-10045-00 BOLT, UNIONBOLT, UNION
-
5793700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5895602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
5990201-10052-00 WASHER, PLATEWASHER, PLATE
-
6090209-15N50-00 WASHERWASHER
-
6190201-12032-00 WASHER, PLATEWASHER, PLATE
-
628LP-2376A-20-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
634AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
6490105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
6590105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
6695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
6790387-10N59-00 COLLARCOLLAR
-
6890201-10052-00 WASHER, PLATEWASHER, PLATE
