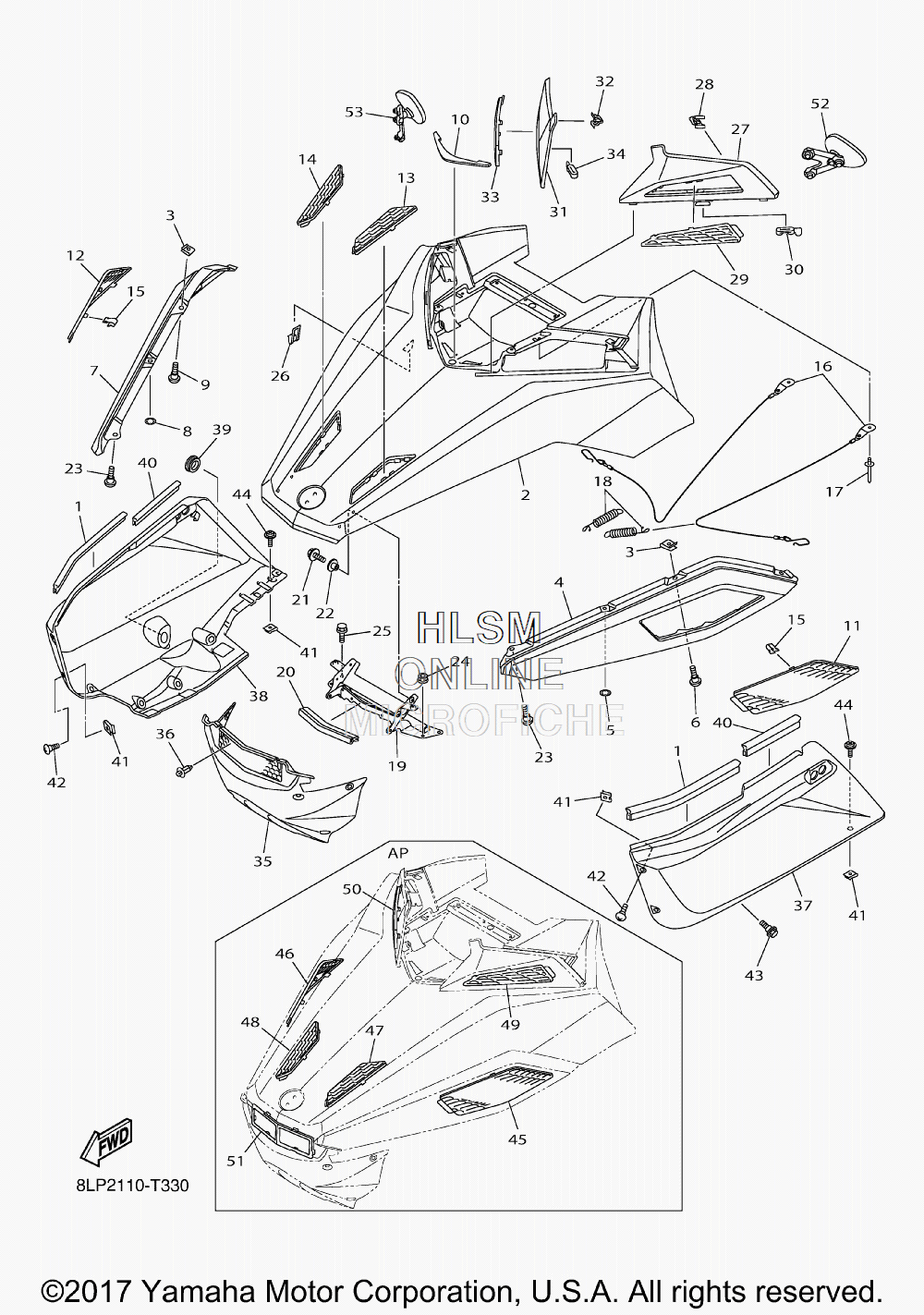

HOOD ASSY для Yamaha VK PROFESSIONAL II - 2018 года выпуска
-
№АртикулНазвание
-
18KW-78245-00-00 SEAL 1SEAL 1
-
28KW-77111-00-P2 SHROUD (SMX - BLACK METALLIC)SHROUD (SMX - BLACK METALLIC)
-
28KW-77111-00-P0 SHROUD (MS1 - MAT SILVER)SHROUD (MS1 - MAT SILVER)
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
48KW-21711-00-P0 COVER, SIDE 1 (MBL2 - MAT BLACK)COVER, SIDE 1 (MBL2 - MAT BLACK)
-
590183-08065-00 NUT, SPRINGNUT, SPRING
-
690154-06009-00 SCREW, BINDINGSCREW, BINDING
-
78KW-21721-00-P0 COVER, SIDE 2 (MBL2 - MAT BLACK)COVER, SIDE 2 (MBL2 - MAT BLACK)
-
890183-08065-00 NUT, SPRINGNUT, SPRING
-
990154-06009-00 SCREW, BINDINGSCREW, BINDING
-
108KW-84366-00-00 DAMPER, HEADLIGHT 1DAMPER, HEADLIGHT 1
-
118KW-77441-10-00 LOUVER 1LOUVER 1
-
128KW-77442-10-00 LOUVER 2LOUVER 2
-
138KW-77443-10-00 LOUVER 3LOUVER 3
-
148KW-77444-10-00 LOUVER 4LOUVER 4
-
158KW-77135-00-00 CLAMP 1CLAMP 1
-
168KW-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
1790267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
1889A-77159-00-00 CLAMP, RODCLAMP, ROD
-
198KW-77140-00-00 HINGE ASSYHINGE ASSY
-
208KW-78246-00-00 SEAL 2SEAL 2
-
2195802-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06681-00 COLLARCOLLAR
-
2390154-06009-00 SCREW, BINDINGSCREW, BINDING
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2595822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
268FA-77135-00-00 CLAMP 1CLAMP 1
-
278KW-77231-00-P0 FAIRING (MS1 - MAT SILVER)FAIRING (MS1 - MAT SILVER)
-
278KW-77231-00-P2 FAIRING (SMX - BLACK METALLIC)FAIRING (SMX - BLACK METALLIC)
-
2890468-040A0-00 CLIPCLIP
-
298KW-77109-10-00 LOUVER 5LOUVER 5
-
3082H-77223-00-00 FASTNERFASTNER
-
318KW-7723A-00-P0 FAIRING 2 (MS1 - MAT SILVER)FAIRING 2 (MS1 - MAT SILVER)
-
318KW-7723A-00-P2 FAIRING 2 (SMX - BLACK METALLIC)FAIRING 2 (SMX - BLACK METALLIC)
-
3290468-040A0-00 CLIPCLIP
-
338KW-77108-10-00 LOUVER 6LOUVER 6
-
3482H-77223-00-00 FASTNERFASTNER
-
358KW-21912-00-00 PANEL, SUB FRAME 1PANEL, SUB FRAME 1
-
3690269-06001-00 RIVETRIVET
-
378KW-2197H-00-00 HOOD 3HOOD 3
-
388KW-2198H-00-00 HOOD 4HOOD 4
-
3990338-30256-00 PLUGPLUG
-
408KW-78246-00-00 SEAL 2SEAL 2
-
4190183-060A6-00 NUT, SPRINGNUT, SPRING
-
4290154-06009-00 SCREW, BINDINGSCREW, BINDING
-
4390109-06220-00 BOLTBOLT
-
4490159-06011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
458KW-77441-00-00 LOUVER 1LOUVER 1
-
468KW-77442-00-00 LOUVER 2LOUVER 2
-
478KW-77443-00-00 LOUVER 3LOUVER 3
-
488KW-77444-00-00 LOUVER 4LOUVER 4
-
498KW-77109-00-00 LOUVER 5LOUVER 5
-
508KW-77108-00-00 LOUVER 6LOUVER 6
-
518KW-78217-00-00 GRILLE, FRONTGRILLE, FRONT
-
528KW-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
538KW-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
