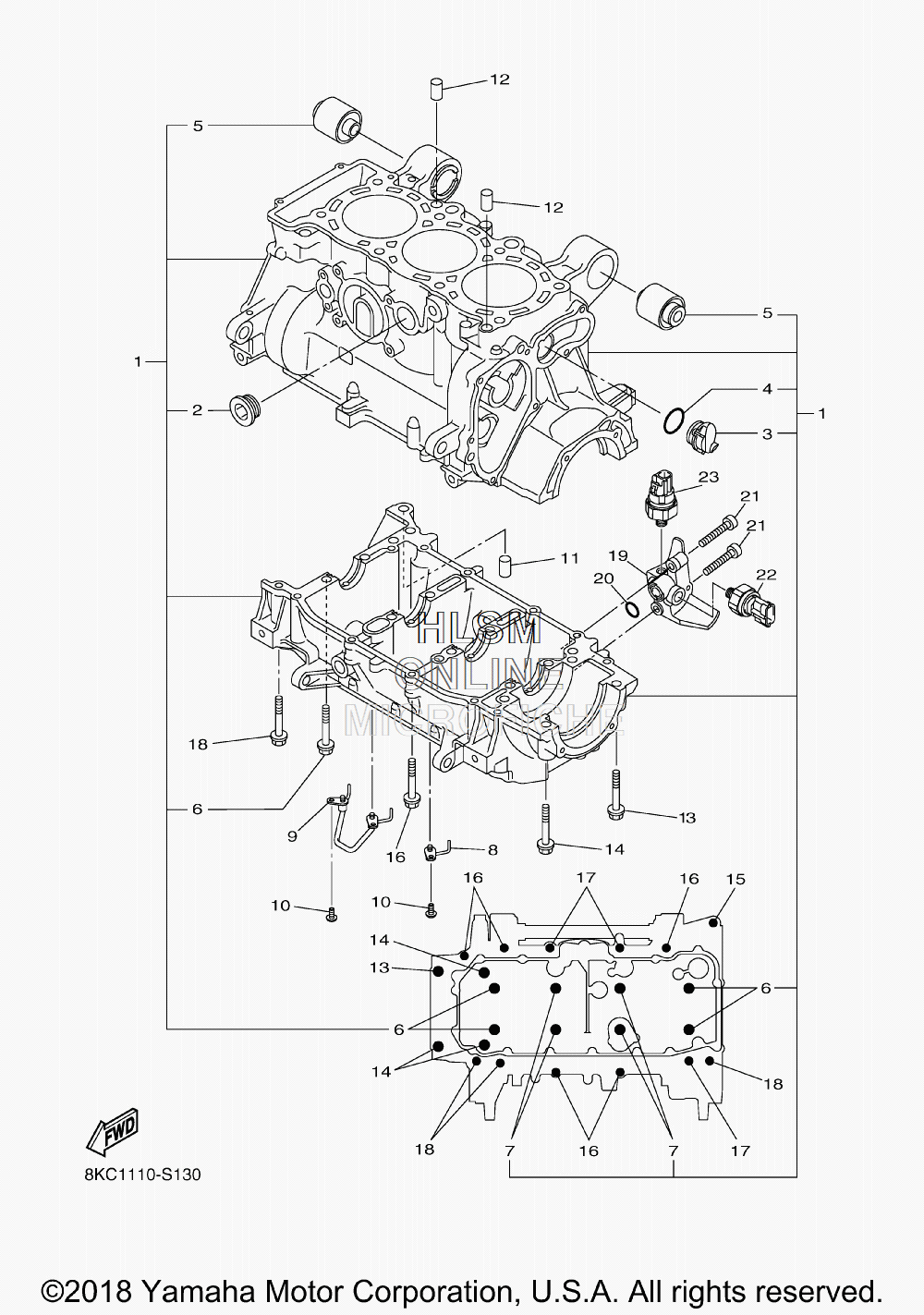

CRANKCASE ASSY для Yamaha SIDEWINDER L TX SE - 2019 года выпуска
-
№АртикулНазвание
-
18KJ-15109-09-00 CRANKCASE ASSYCRANKCASE ASSY
-
290340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
38ES-15167-00-00 ...PLUG, BLIND 1...PLUG, BLIND 1
-
493210-24709-00 ...O-RING...O-RING
-
58FA-2139X-00-00 ...DAMPER...DAMPER
-
690119-09004-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
790119-09011-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
88KJ-15105-00-00 NOZZLE ASSYNOZZLE ASSY
-
98KJ-15154-00-00 NOZZLE ASSY 2NOZZLE ASSY 2
-
1090149-05029-00 SCREWSCREW
-
1199530-10014-00 PIN, DOWELPIN, DOWEL
-
1299530-10114-00 PIN, DOWELPIN, DOWEL
-
1395812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-08070-00 BOLT, FLANGEBOLT, FLANGE
-
1590109-06185-00 BOLTBOLT
-
1695812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1795812-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1890105-06123-00 BOLT, FLANGEBOLT, FLANGE
-
198JH-15319-00-00 JOINTJOINT
-
2093210-13657-00 O-RINGO-RING
-
2190110-06177-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
228GN-83651-00-00 SENDER, OIL PRESSURESENDER, OIL PRESSURE
-
238FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
