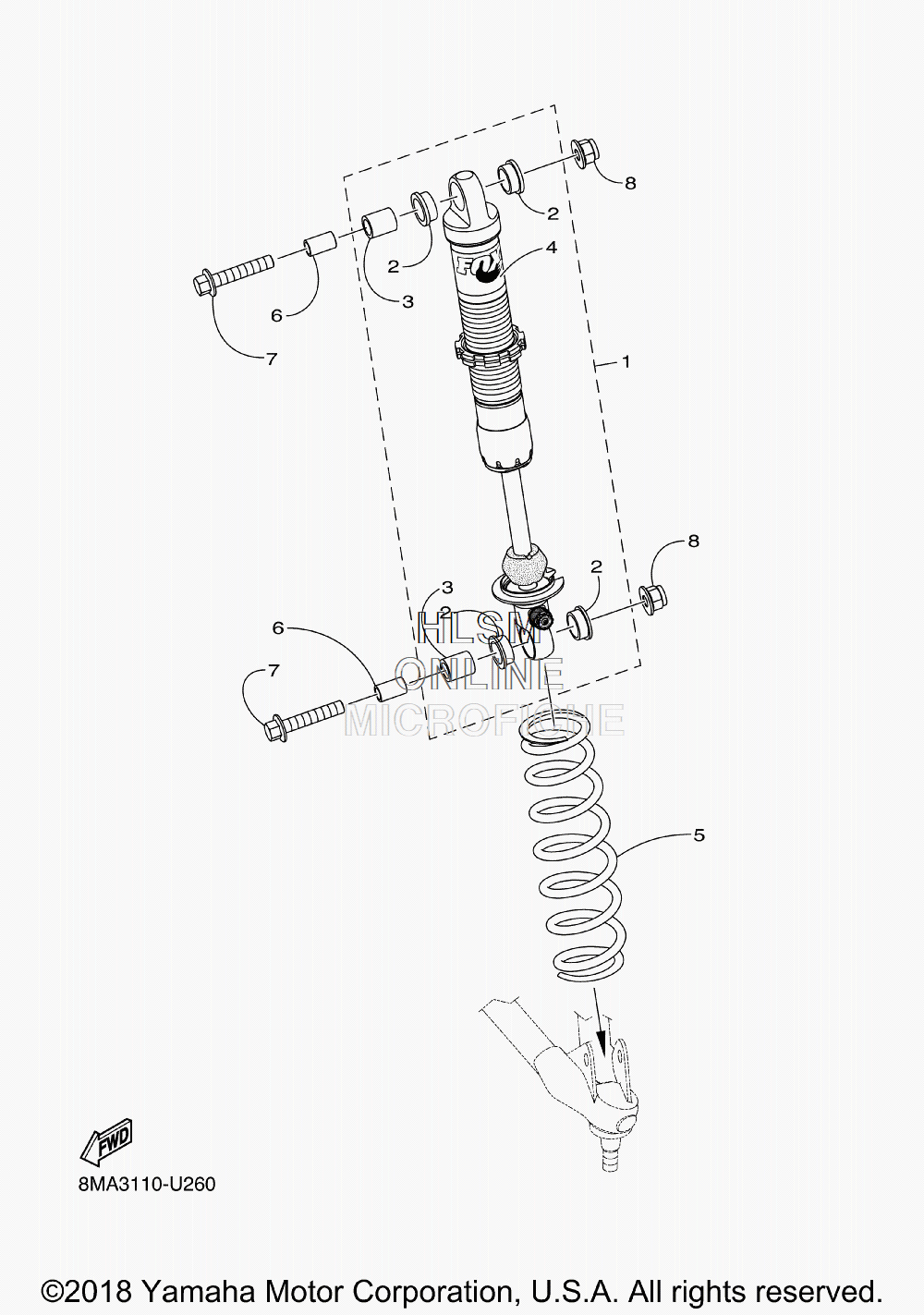

SUSPENSION - REAR ABSORBER для Yamaha SIDEWINDER L TX SE - 2019 года выпуска
-
№АртикулНазвание
-
18JW-F330E-40-00 DAMPER ASSYDAMPER ASSY
-
28JP-RA817-00-00 ...BUSH, 8...BUSH, 8
-
38JP-RA732-00-00 ...COLLAR, 15...COLLAR, 15
-
48JW-F151J-10-00 ...LABEL 6...LABEL 6
-
58JW-F3351-10-00 SPRINGSPRING
-
68JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
78JP-RA1A3-00-00 BOLT, FLANGEBOLT, FLANGE
-
88JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
