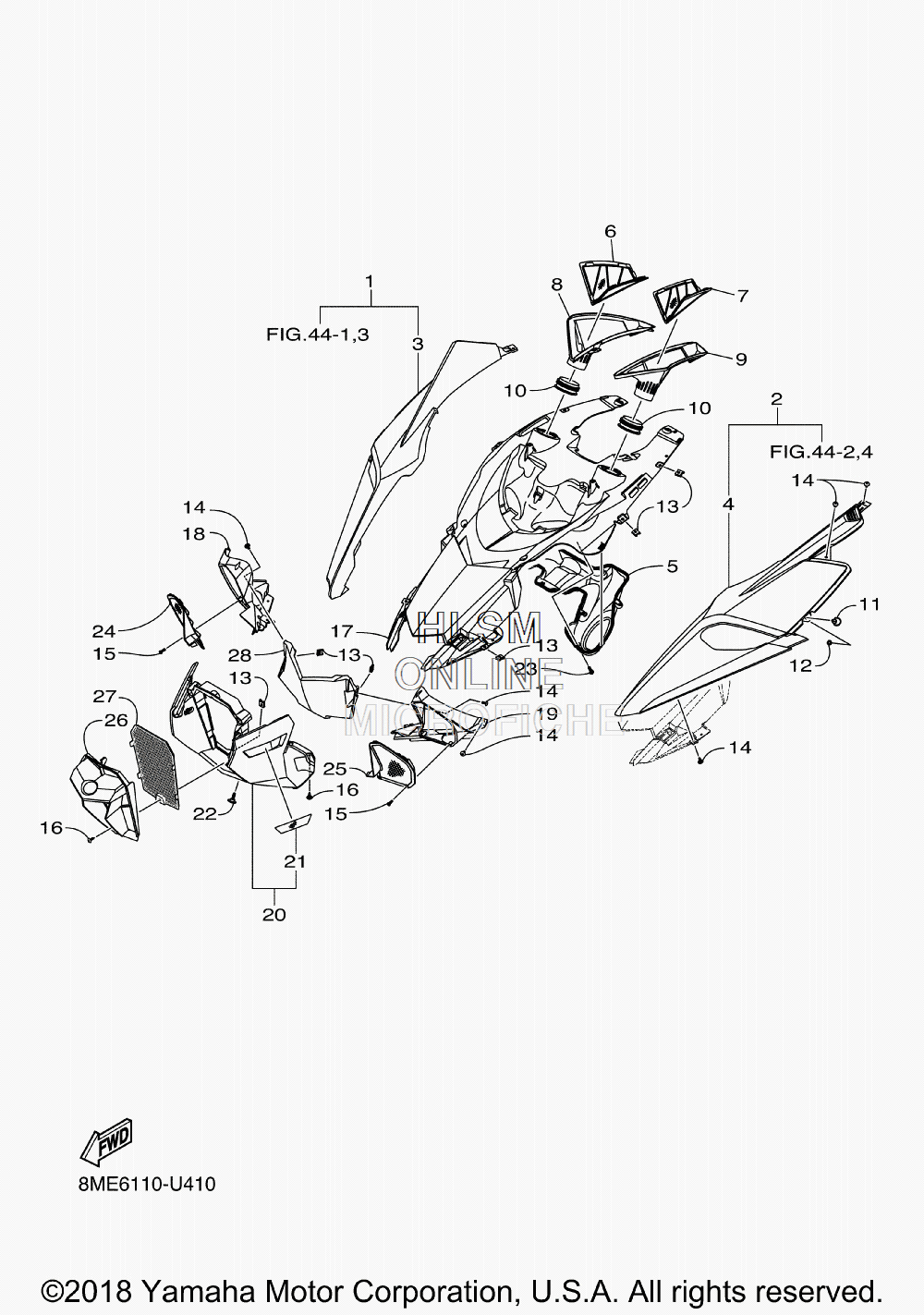

HOOD ASSY для Yamaha SIDEWINDER L TX SE - 2019 года выпуска
-
№АртикулНазвание
-
18MA-F198A-00-00 HOOD ASSY 4HOOD ASSY 4
-
28MA-F197A-00-00 HOOD ASSY 3HOOD ASSY 3
-
38KC-K7122-40-00 ...HOOD 4 (INCL 1)...HOOD 4 (INCL 1)
-
48KC-K7121-40-00 ...HOOD 3 (INCL 2)...HOOD 3 (INCL 2)
-
58KC-K715B-00-00 INTAKE, LOWERINTAKE, LOWER
-
68KC-K715E-00-00 SCREEN, INTAKE DUCT 2SCREEN, INTAKE DUCT 2
-
78KC-K715D-00-00 SCREEN, INTAKE DUCT 1SCREEN, INTAKE DUCT 1
-
88KC-K715G-00-00 DUCT, INTAKE 2DUCT, INTAKE 2
-
98KC-K715F-00-00 DUCT, INTAKE 1DUCT, INTAKE 1
-
108KC-K715R-00-00 SEAL, INTAKESEAL, INTAKE
-
118JP-RAK02-00-00 PIN, 2PIN, 2
-
128JP-RA345-00-00 NUT, 1NUT, 1
-
138JP-RA352-00-00 NUT, SPRINGNUT, SPRING
-
148JP-RA202-00-00 SCREW, TAPPINGSCREW, TAPPING
-
158KC-RA238-00-00 SCREW, 4SCREW, 4
-
168KC-RA290-00-00 SCREWSCREW
-
178KC-K715C-00-00 INTAKE, UPPERINTAKE, UPPER
-
188KC-K715J-00-00 VENT, FRONT 2VENT, FRONT 2
-
198KC-K715H-00-00 VENT, FRONT 1VENT, FRONT 1
-
208MB-K715K-10-00 DUCT, INTAKE FRONTDUCT, INTAKE FRONT
-
218MY-H5133-00-00 ...TAPE, REFLECTOR...TAPE, REFLECTOR
-
228KC-RA239-00-00 SCREW, 5SCREW, 5
-
238JP-RA2A2-00-00 SCREW, 13SCREW, 13
-
248KC-K715M-00-00 BEZEL, VENT 2BEZEL, VENT 2
-
258KC-K715L-00-00 BEZEL, VENT 1BEZEL, VENT 1
-
268KC-K715N-00-00 GRILLEGRILLE
-
278KC-K7123-00-00 GUIDE 1GUIDE 1
-
288KC-K715P-00-00 SHUT, INTAKESHUT, INTAKE
