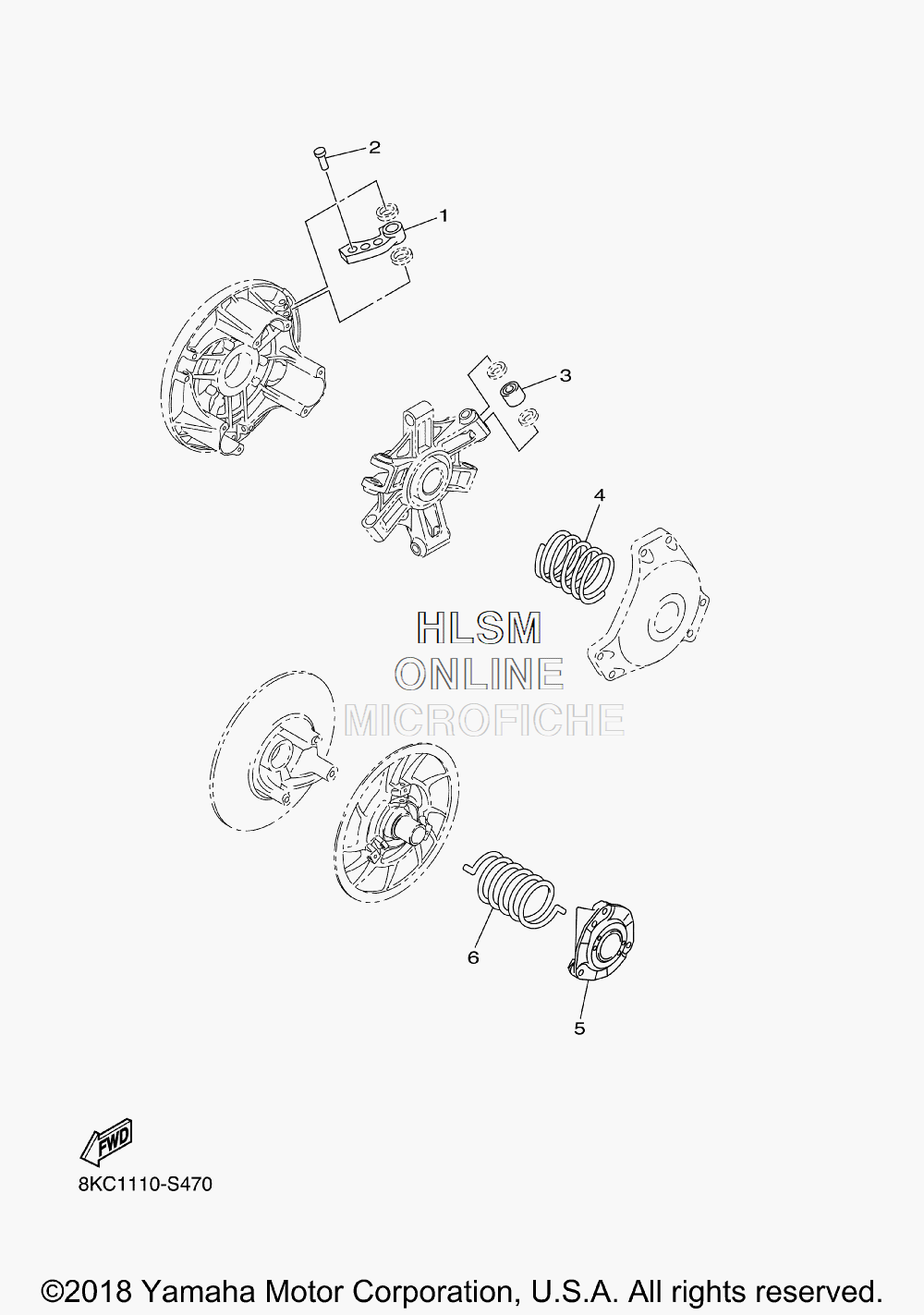

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha SIDEWINDER X TX SE 141 - 2019 года выпуска
-
№АртикулНазвание
-
18LR-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18KC-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM)RIVET, COUNTERSUNK (ST10.3MM)
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM)RIVET, COUNTERSUNK (AL10.3MM)
-
290266-06001-00 RIVET (AL13.3)RIVET (AL13.3)
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM)RIVET, COUNTERSUNK (ST13.3MM)
-
290266-06002-00 RIVET (ST13.3)RIVET (ST13.3)
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM)RIVET, COUNTERSUNK (ST13.9MM)
-
290269-06006-00 RIVET (ST17.2MM)RIVET (ST17.2MM)
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM)RIVET, COUNTERSUNK (ST17.2MM)
-
38FG-17624-40-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-30-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-20-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-00-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-10-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
490501-602L3-00 SPRING, COMPRESSION (P-SL-P)SPRING, COMPRESSION (P-SL-P)
-
490501-601L8-00 SPRING, COMPRESSION (OR-P-OR)SPRING, COMPRESSION (OR-P-OR)
-
490501-601L7-00 SPRING, COMPRESSION (P-P-P)SPRING, COMPRESSION (P-P-P)
-
490501-583L5-00 SPRING, COMPRESSION (WH-P-WH)SPRING, COMPRESSION (WH-P-WH)
-
490501-583L4-00 SPRING, COMPRESSION (WH-SL-WH)SPRING, COMPRESSION (WH-SL-WH)
-
490501-583L1-00 SPRING, COMPRESSION (WH-WH-WH)SPRING, COMPRESSION (WH-WH-WH)
-
490501-583L0-00 SPRING, COMPRESSION (BL-WH-BL)SPRING, COMPRESSION (BL-WH-BL)
-
490501-582L7-00 SPRING, COMPRESSION (Y-GR-Y)SPRING, COMPRESSION (Y-GR-Y)
-
490501-582L6-00 SPRING, COMPRESSION (WH-GR-WH)SPRING, COMPRESSION (WH-GR-WH)
-
490501-582L2-00 SPRING, COMPRESSION (GR-SL-GR)SPRING, COMPRESSION (GR-SL-GR)
-
490501-582L1-00 SPRING, COMPRESSION (Y-SL-Y)SPRING, COMPRESSION (Y-SL-Y)
-
490501-581L6-00 SPRING, COMPRESSION (GR-P-GR)SPRING, COMPRESSION (GR-P-GR)
-
490501-581L5-00 SPRING, COMPRESSION (Y-P-Y)SPRING, COMPRESSION (Y-P-Y)
-
490501-552L5-00 SPRING, COMPRESSION (BL-GR-BL)SPRING, COMPRESSION (BL-GR-BL)
-
490501-551L3-00 SPRING, COMPRESSION (BL-P-BL)SPRING, COMPRESSION (BL-P-BL)
-
490501-602L8-00 SPRING, COMPRESSION (GR-GR-GR)SPRING, COMPRESSION (GR-GR-GR)
-
490501-510A0-00 SPRING, COMPRESSION (SL-OR-SL)SPRING, COMPRESSION (SL-OR-SL)
-
490501-550A7-00 SPRING, COMPRESSION (GO-R-GO)SPRING, COMPRESSION (GO-R-GO)
-
490501-570A0-00 SPRING, COMPRESSION (BL-SL-BL)SPRING, COMPRESSION (BL-SL-BL)
-
490501-580A2-00 SPRING, COMPRESSION (BL-BR-BL)SPRING, COMPRESSION (BL-BR-BL)
-
490501-600A5-00 SPRING, COMPRESSION (OR-Y-OR)SPRING, COMPRESSION (OR-Y-OR)
-
490501-600A4-00 SPRING, COMPRESSION (P-Y-P)SPRING, COMPRESSION (P-Y-P)
-
490501-580A4-00 SPRING, COMPRESSION (GR-Y-GR)SPRING, COMPRESSION (GR-Y-GR)
-
490501-580A3-00 SPRING, COMPRESSION (Y-Y-Y)SPRING, COMPRESSION (Y-Y-Y)
-
490501-550A6-00 SPRING, COMPRESSION (WH-Y-WH)SPRING, COMPRESSION (WH-Y-WH)
-
490501-550A5-00 SPRING, COMPRESSION (BL-Y-BL)SPRING, COMPRESSION (BL-Y-BL)
-
490501-550A3-00 SPRING, COMPRESSION (WH-BL-WH)SPRING, COMPRESSION (WH-BL-WH)
-
490501-600A1-00 SPRING, COMPRESSION (P-BL-P)SPRING, COMPRESSION (P-BL-P)
-
490501-602L9-00 SPRING, COMPRESSION (P-GR-P)SPRING, COMPRESSION (P-GR-P)
-
490501-603L2-00 SPRING, COMPRESSION (Y-WH-Y)SPRING, COMPRESSION (Y-WH-Y)
-
490501-603L3-00 SPRING, COMPRESSION (GR-WH-GR)SPRING, COMPRESSION (GR-WH-GR)
-
490501-624L8-00 SPRING, COMPRESSION (OR-SL-OR)SPRING, COMPRESSION (OR-SL-OR)
-
490501-550A2-00 SPRING, COMPRESSION (BL-BL-BL)SPRING, COMPRESSION (BL-BL-BL)
-
490501-580A1-00 SPRING, COMPRESSION (Y-BL-Y)SPRING, COMPRESSION (Y-BL-Y)
-
58KC-17604-90-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58MA-17604-00-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58KC-17604-50-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
58KC-17604-70-00 SEAT SPRING SET (OPT)SEAT SPRING SET (OPT)
-
690508-60007-00 SPRING, TORSION (WHITE)SPRING, TORSION (WHITE)
-
690508-60012-00 SPRING, TORSION (PINK)SPRING, TORSION (PINK)
-
690508-500B1-00 SPRING, TORSION (BROWN)SPRING, TORSION (BROWN)
-
690508-556A2-00 SPRING, TORSION (GREEN)SPRING, TORSION (GREEN)
-
690508-60018-00 SPRING, TORSION (P-P)SPRING, TORSION (P-P)
-
690508-60020-00 SPRING, TORSION (YELLOW)SPRING, TORSION (YELLOW)
-
690508-556A7-00 SPRING, TORSION (SILVER)SPRING, TORSION (SILVER)
-
690508-536A9-00 SPRING, TORSION (RED)SPRING, TORSION (RED)
-
690508-60016-00 SPRING, TORSION (WH-WH)SPRING, TORSION (WH-WH)
