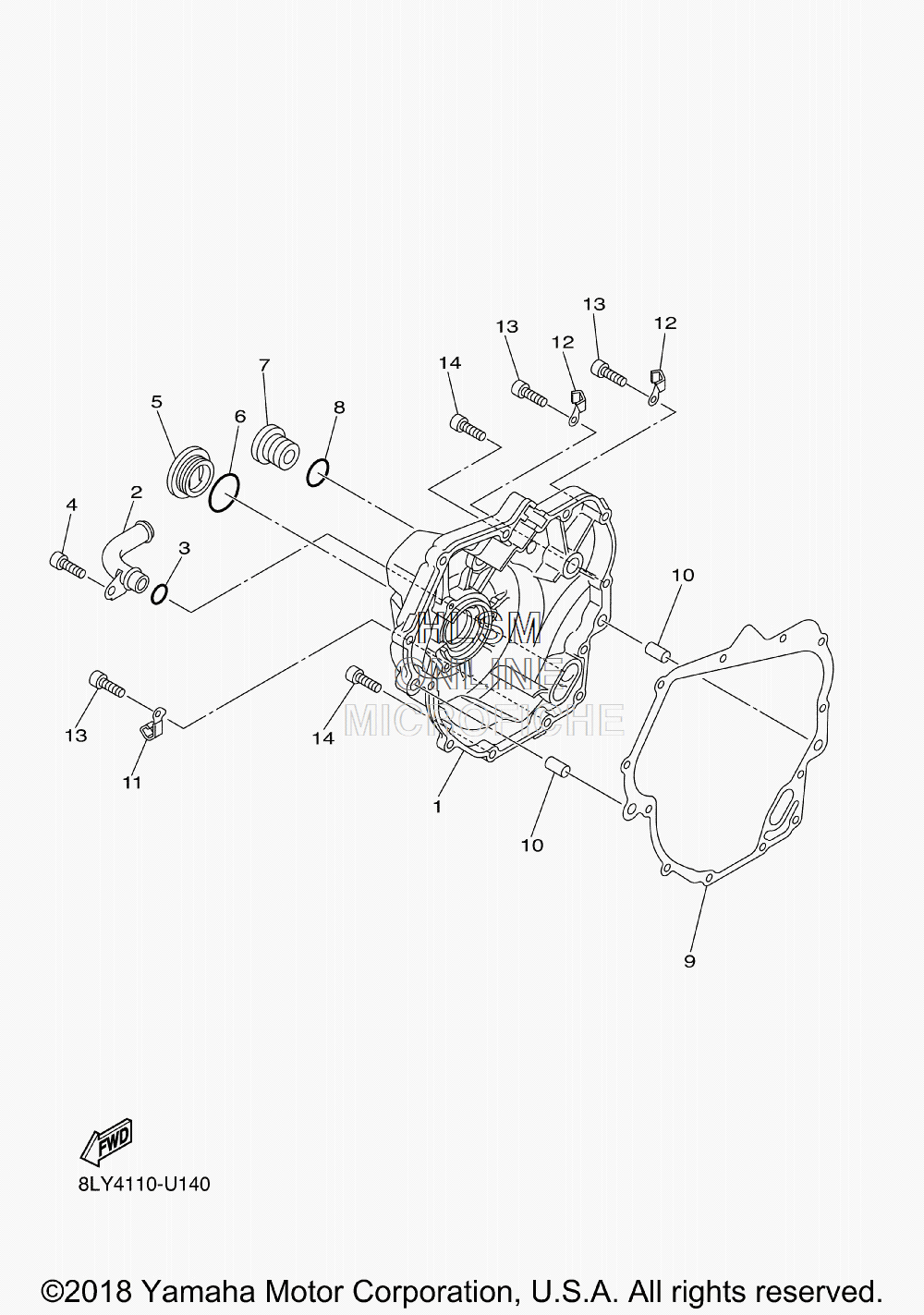

CRANKCASE COVER ASSY для Yamaha SIDEWINDER X TX SE 141 - 2019 года выпуска
-
№АртикулНазвание
-
1B5H-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
28KJ-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
393210-14003-00 O-RINGO-RING
-
491312-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590340-36078-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
693210-357A3-00 O-RINGO-RING
-
790340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
893210-14369-00 O-RINGO-RING
-
92HC-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1099530-08012-00 PIN, DOWELPIN, DOWEL
-
1190462-08101-00 CLAMPCLAMP
-
1290462-08225-00 CLAMPCLAMP
-
1391312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490110-06231-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
