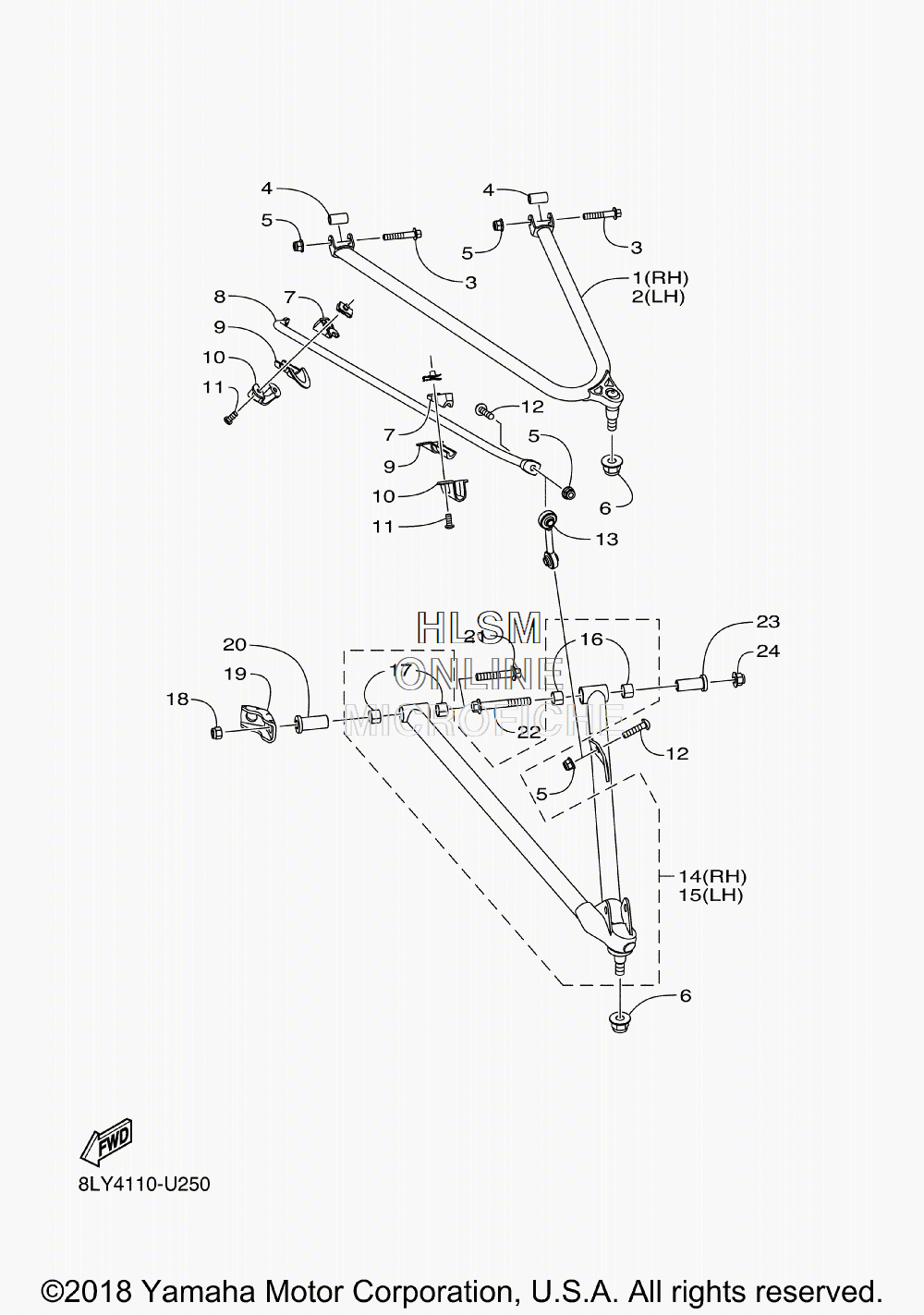

SUSPENSION - FRONT ARM для Yamaha SIDEWINDER X TX SE 141 - 2019 года выпуска
-
№АртикулНазвание
-
18JP-F355A-40-00 ARM, FRONT UPPER (RIGHT HAND) (RED)ARM, FRONT UPPER (RIGHT HAND) (RED)
-
28JP-F354A-40-00 ARM, FRONT UPPER (LEFT HAND) (RED)ARM, FRONT UPPER (LEFT HAND) (RED)
-
38JP-RA190-00-00 BOLT, FLANGEBOLT, FLANGE
-
48JP-RA720-00-00 COLLAR, 8COLLAR, 8
-
58JM-RA301-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
68JP-RA362-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78JP-F3867-00-00 HOLDER 2HOLDER 2
-
88JP-F386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
98JP-F386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
108JP-F386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
118JP-RA235-00-00 SCREW, 1SCREW, 1
-
128JP-RA235-10-00 SCREW, 1SCREW, 1
-
138JP-F386F-00-00 LINK, STABILIZER FRONTLINK, STABILIZER FRONT
-
148JP-F358A-40-00 ARM, FRONT LOWER (RIGHT HAND) (RED)ARM, FRONT LOWER (RIGHT HAND) (RED)
-
158JP-F357A-40-00 ARM, FRONT LOWER (LEFT HAND) (RED)ARM, FRONT LOWER (LEFT HAND) (RED)
-
168JP-RA807-00-00 ...BUSH...BUSH
-
178JP-RA811-00-00 ...BUSH...BUSH
-
188JP-RA361-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
198JP-F3543-00-00 ARM, 1ARM, 1
-
208JP-RA721-10-00 COLLAR, 9COLLAR, 9
-
218JP-RA1A7-00-00 BOLT, FLANGEBOLT, FLANGE
-
228JP-RA194-20-00 BOLT, FLANGEBOLT, FLANGE
-
238JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
248JP-RA360-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
