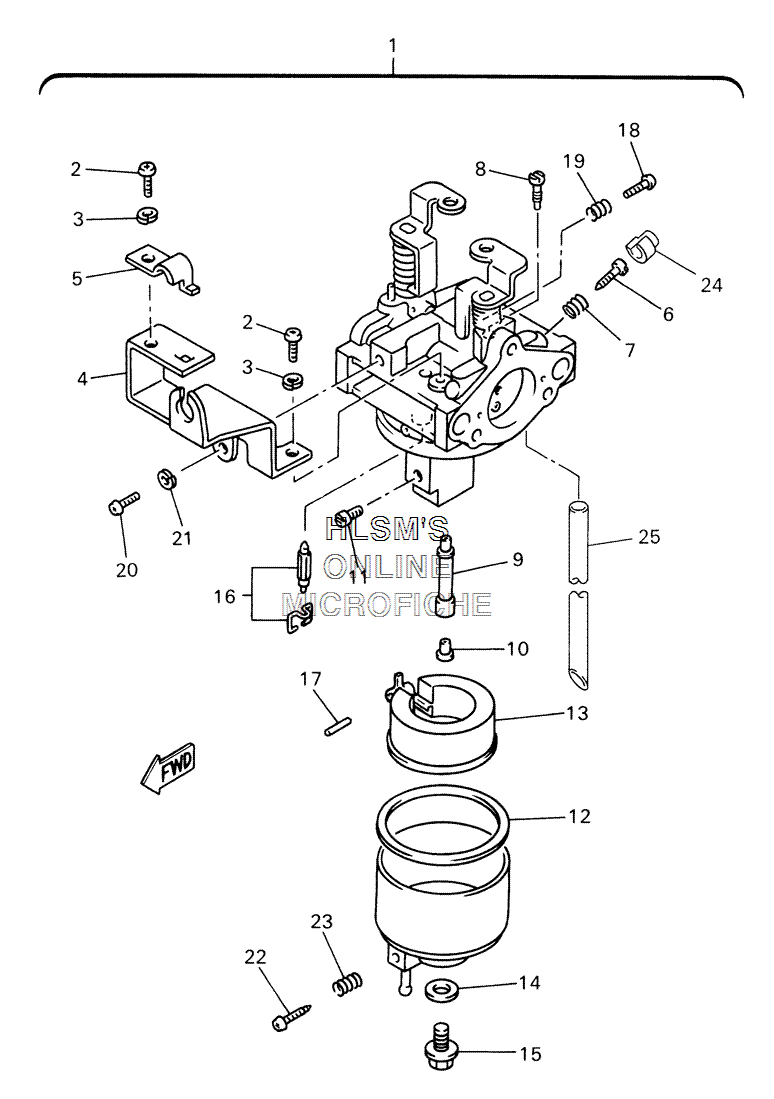

CARBURETOR ASSY. для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
1JR6-14101-00-00 CARBURETOR ASSY. 1CARBURETOR ASSY. 1
-
298507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
392990-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
4JN6-14291-00-00 ...BRACKET 1...BRACKET 1
-
5J10-14227-00-00 ...PLATE...PLATE
-
67NJ-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
773A-14212-10-00 ...SPRING...SPRING
-
8732-14142-65-A0 ...JET, PILOT (# 65)...JET, PILOT (# 65)
-
9JN6-1495H-3B-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
1073A-1414G-00-00 ...PIPE, MAIN BREED...PIPE, MAIN BREED
-
113G2-1423A-67-00 ...JET, MAIN (# 82.5) (OPT)...JET, MAIN (# 82.5) (OPT)
-
113G2-1423A-68-A0 ...JET, MAIN (# 87.5) (STD)...JET, MAIN (# 87.5) (STD)
-
113G2-1423E-33-A0 ...JET, MAIN (# 83.8) (OPT)...JET, MAIN (# 83.8) (OPT)
-
12796-14184-00-00 ...GASKET, FLOAT CHAMBER...GASKET, FLOAT CHAMBER
-
13JN6-14185-00-00 ...FLOAT...FLOAT
-
14127-14198-00-00 ...GASKET...GASKET
-
157R1-14162-00-00 ...BOLT, HOLDING...BOLT, HOLDING
-
16JN5-14150-00-00 ...NEEDLE ASSY....NEEDLE ASSY.
-
1722F-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
181WG-14922-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
1973A-14212-10-00 ...SPRING...SPRING
-
2098507-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2192902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
227E1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2373A-14212-00-00 ...SPRING...SPRING
-
247LV-14118-00-00 ...CAP...CAP
-
251KT-14197-01-00 ...PIPE...PIPE
