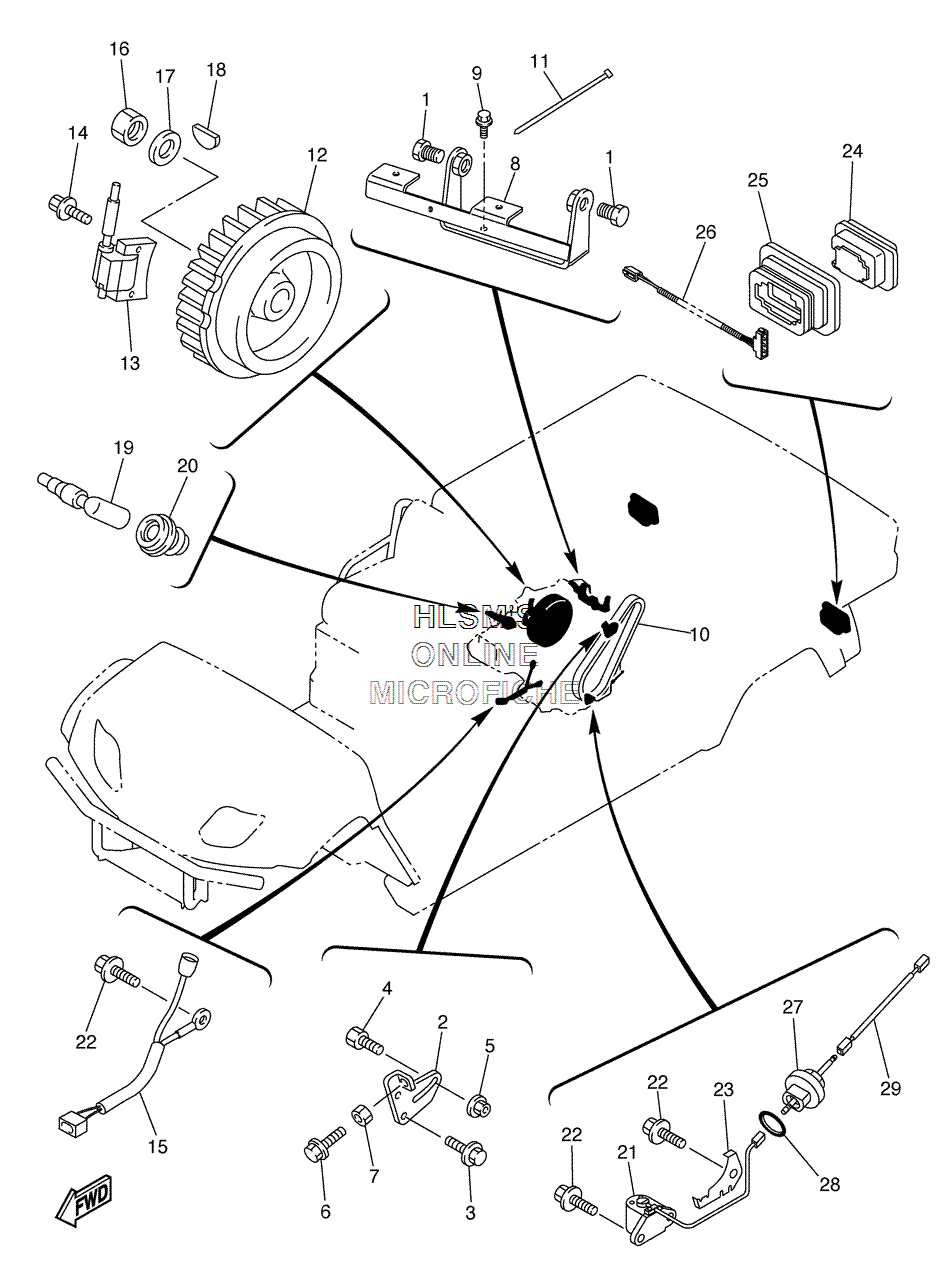

ELECTRICAL для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
19581P-12025-00 BOLT, FLANGEBOLT, FLANGE
-
2JN6-H1170-00-00 TENSIONER ASSY.TENSIONER ASSY.
-
39582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
490109-08875-00 BOLTBOLT
-
595707-08500-00 NUT, FLANGENUT, FLANGE
-
690101-06478-00 BOLTBOLT
-
795307-06600-00 NUTNUT
-
8JN6-H1171-00-00 BRACKET, STARTER GENERATORBRACKET, STARTER GENERATOR
-
99582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
10JN6-H1173-00-00 BELTBELT
-
1190464-09823-00 CLAMPCLAMP
-
12JR7-85650-00-00 ROTOR ASSY.ROTOR ASSY.
-
13JN6-85640-01-00 T.C.I. UNIT ASSY.T.C.I. UNIT ASSY.
-
1495827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
15JN6-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
1695307-18600-00 NUTNUT
-
1790201-18620-00 WASHER, PLATEWASHER, PLATE
-
1890280-04052-00 KEY, WOODRUFFKEY, WOODRUFF
-
19JN6-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
20JE8-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
21JT0-85720-00-00 OIL LEVEL GAUGE ASSY.OIL LEVEL GAUGE ASSY.
-
2295827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
23JT0-85724-00-00 CLAMPCLAMP
-
24JU5-H4700-00-00 TAILLIGHT ASSY.TAILLIGHT ASSY.
-
25JU5-H4718-00-00 GROMMETGROMMET
-
26JU7-H2521-00-00 WIRE, LEADWIRE, LEAD
-
27JT0-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2893210-15414-00 O-RINGO-RING
-
29JT0-8231Y-00-00 WIRE, LEADWIRE, LEAD
