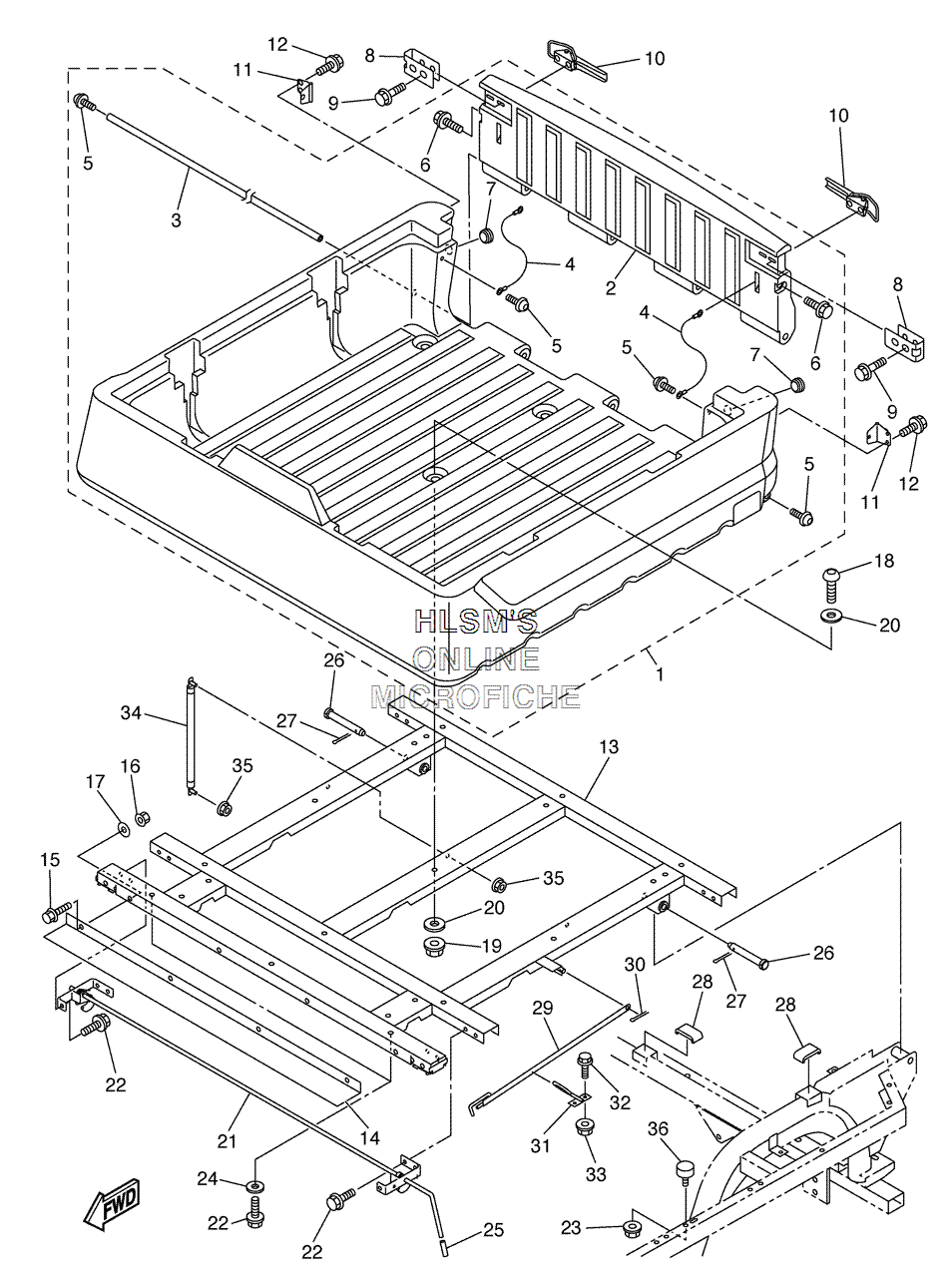

CARRIER для Yamaha PRO HAULER 1000 - 2005 года выпуска
-
№АртикулНазвание
-
1JU9-K810M-00-00 REAR STORAGE BOX COMP.REAR STORAGE BOX COMP.
-
2JU9-K819K-00-00 ...SHELL, RR. STORAGE LID...SHELL, RR. STORAGE LID
-
3JU9-K8564-00-00 ...PIN, HINGE...PIN, HINGE
-
4JU9-K7195-00-00 ...HOLDER, CABLE...HOLDER, CABLE
-
5JU9-K6179-00-00 ...BOLT, SPECIAL 1...BOLT, SPECIAL 1
-
6JU9-K6189-00-00 ...BOLT, SPECIAL 2...BOLT, SPECIAL 2
-
7JU9-K7739-10-00 ...DAMPER, LID...DAMPER, LID
-
8JU9-K7171-00-00 BODY, LATCH 1BODY, LATCH 1
-
9JU9-K8384-00-00 BOLTBOLT
-
105UG-F389E-00-00 LATCH (FOR TAILGATE)LATCH (FOR TAILGATE)
-
11JU9-K7172-00-00 BODY, LATCH 2BODY, LATCH 2
-
1290119-06830-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
13JU9-K818N-01-00 BED, BOXBED, BOX
-
14JU9-K8284-01-00 COVER, 4COVER, 4
-
159582P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
169560P-06200-00 NUT, FLANGENUT, FLANGE
-
1790201-068R3-00 WASHER, PLATEWASHER, PLATE
-
1892017-10035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
199560P-10200-00 NUT, FLANGENUT, FLANGE
-
2090201-10144-00 WASHER, PLATEWASHER, PLATE
-
21JU9-K8380-01-00 LOCK ASSY.LOCK ASSY.
-
229582P-08020-00 BOLT, FLANGEBOLT, FLANGE
-
239560P-08200-00 NUTNUT
-
2490201-088P7-00 WASHER, PLATEWASHER, PLATE
-
25JJ3-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
2690240-13801-00 PIN, CLEVISPIN, CLEVIS
-
2791401-30025-00 PIN, COTTERPIN, COTTER
-
28JJ3-K815H-01-00 DAMPER, LOCKDAMPER, LOCK
-
29JU5-K8158-00-00 ROD, INSPECTION LIDROD, INSPECTION LID
-
3091401-20020-00 PIN, COTTERPIN, COTTER
-
31JJ3-K8369-00-00 PIN, LEVERPIN, LEVER
-
3290119-06830-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
339560P-06200-00 NUT, FLANGENUT, FLANGE
-
34JJ3-K7588-00-00 DAMPERDAMPER
-
359560P-08200-00 NUTNUT
-
36JU5-K8167-10-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
