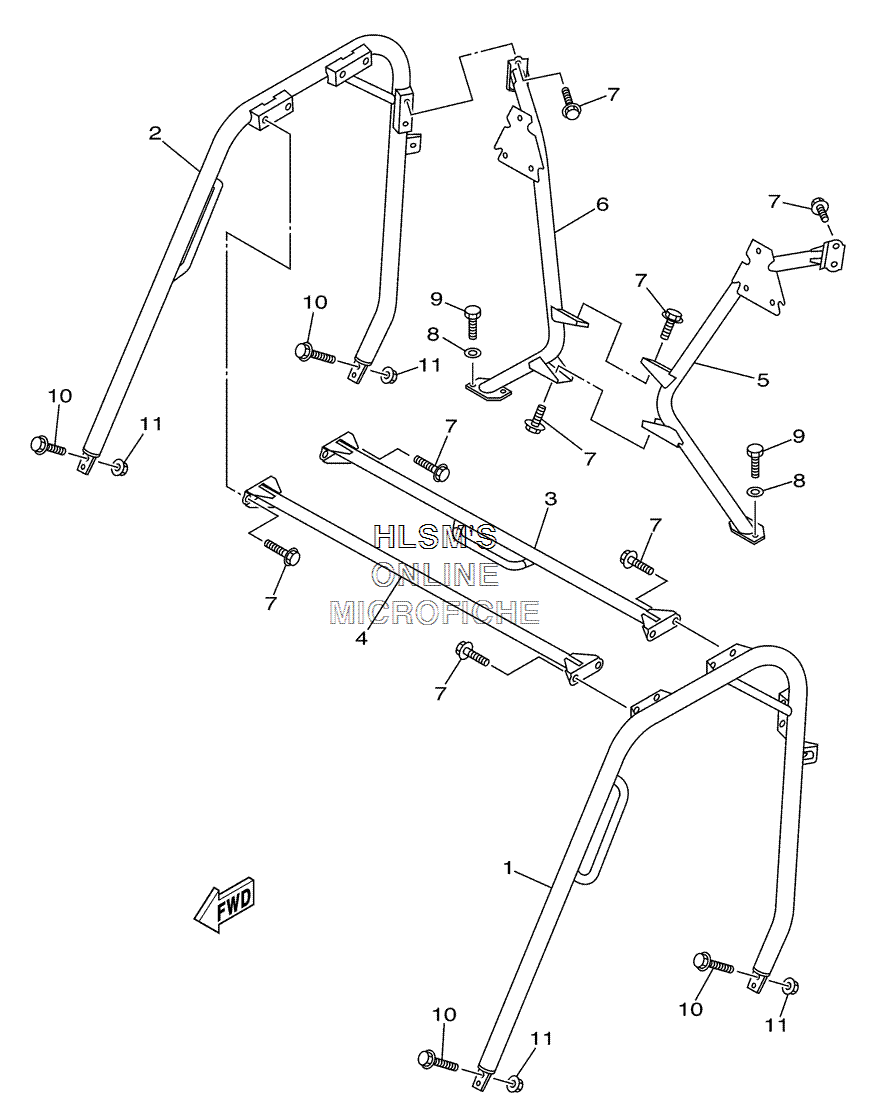

GUARD 2 для Yamaha RHINO 660 4WD HUNTER - 2006 года выпуска
-
№АртикулНазвание
-
15UG-K831A-10-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
25UG-K831E-10-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
35UG-K8336-01-00 MEMBER, CROSS ROOFMEMBER, CROSS ROOF
-
45UG-K8392-01-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
55UG-K8393-20-00 MEMBER, ROOF FRAME 2MEMBER, ROOF FRAME 2
-
65UG-K8394-20-00 MEMBER, ROOF FRAME 3MEMBER, ROOF FRAME 3
-
795817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
890201-10774-00 WASHER, PLATEWASHER, PLATE
-
997017-10025-00 BOLTBOLT
-
1095817-10045-00 BOLT, FLANGEBOLT, FLANGE
-
119560P-10200-00 NUT, FLANGENUT, FLANGE
