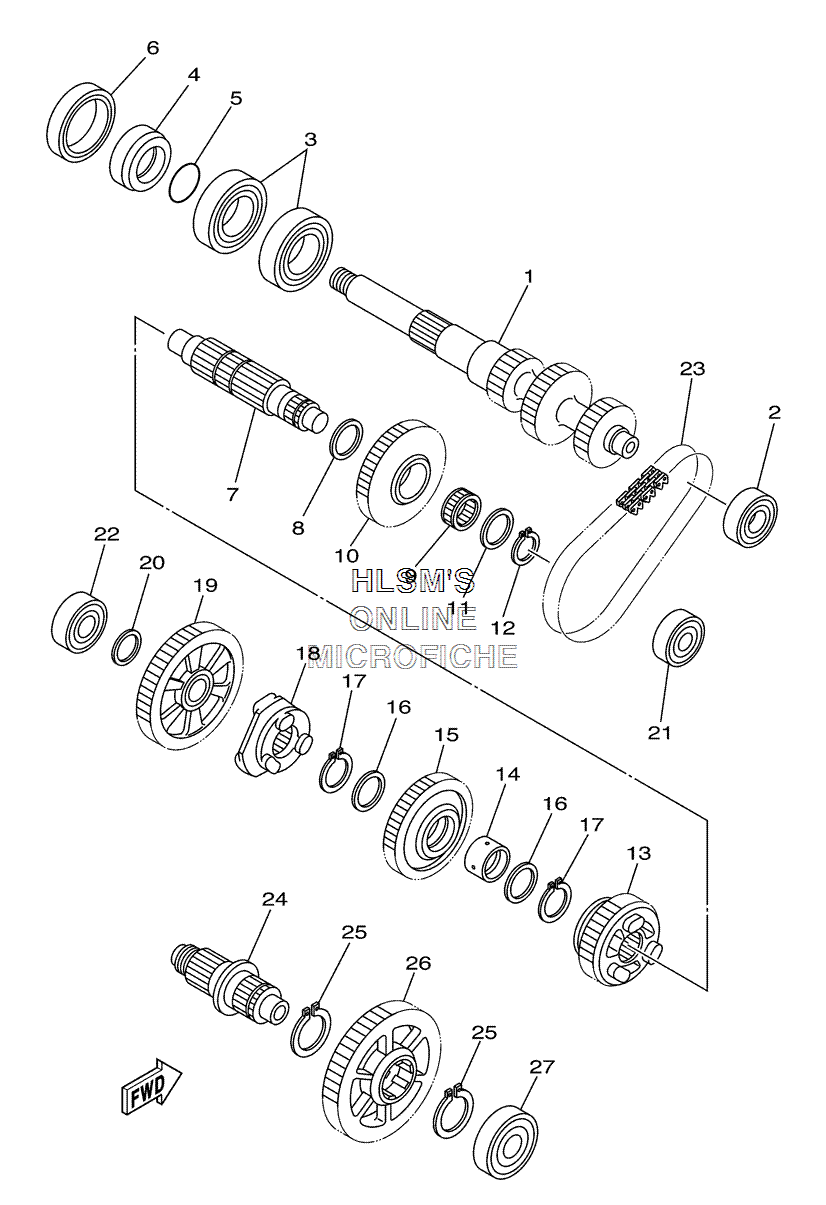

TRANSMISSION для Yamaha RHINO 660 4WD HUNTER - 2006 года выпуска
-
№АртикулНазвание
-
15UG-17681-00-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-20321-00 BEARINGBEARING
-
393306-00612-00 BEARINGBEARING
-
490387-26001-00 COLLARCOLLAR
-
593210-26001-00 O-RINGO-RING
-
693102-42004-00 OIL SEALOIL SEAL
-
75KM-17402-01-00 DRIVE AXLE ASSY.DRIVE AXLE ASSY.
-
890201-20278-00 WASHER, PLATEWASHER, PLATE
-
993310-420F2-00 BEARING, CYL.#10BEARING, CYL.#10
-
105KM-17453-00-00 SPROCKET, DRIVEN (25T)SPROCKET, DRIVEN (25T)
-
1190201-20278-00 WASHER, PLATEWASHER, PLATE
-
1293410-20038-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
135UG-17582-00-00 GEAR, MIDDLE DRIVE (21T)GEAR, MIDDLE DRIVE (21T)
-
1490387-250R3-00 COLLARCOLLAR
-
155KM-17223-00-00 GEAR, HIGH WHEEL (28T)GEAR, HIGH WHEEL (28T)
-
1690209-22082-00 WASHER (T=0.5)WASHER (T=0.5)
-
1793440-25084-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
185KM-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
195UG-17233-00-00 GEAR, LOW WHEEL (35T)GEAR, LOW WHEEL (35T)
-
2090201-17255-00 WASHER, PLATEWASHER, PLATE
-
2193306-20221-00 BEARINGBEARING
-
2293306-20332-00 BEARINGBEARING
-
2394591-54034-00 CHAIN (23RH302-34ASM)CHAIN (23RH302-34ASM)
-
245KM-17523-10-00 SHAFTSHAFT
-
2593440-25084-00 CIRCLIPCIRCLIP
-
265UG-17583-00-00 GEAR, MIDDLE DRIVEN (41T)GEAR, MIDDLE DRIVEN (41T)
-
2793306-30318-00 BEARINGBEARING
