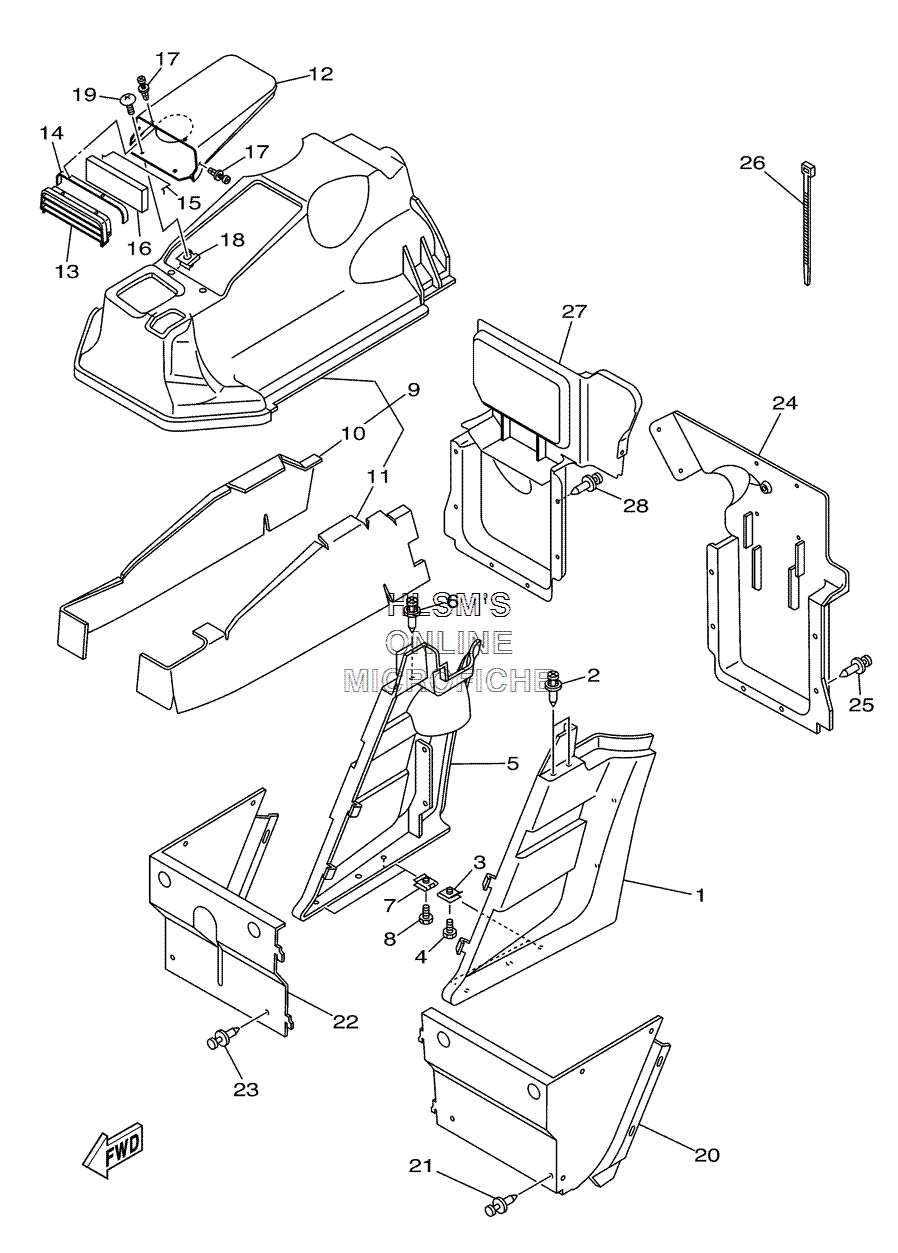

SIDE COVER для Yamaha RHINO 660 4WD HUNTER - 2006 года выпуска
-
№АртикулНазвание
-
15UG-K810F-01-00 SIDE PANEL COMP. (L.H)SIDE PANEL COMP. (L.H)
-
290269-06800-00 RIVETRIVET
-
390183-05008-00 NUT, SPRINGNUT, SPRING
-
490119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55UG-K810G-01-00 SIDE PANEL COMP. (R.H)SIDE PANEL COMP. (R.H)
-
690269-06800-00 RIVETRIVET
-
790183-05008-00 NUT, SPRINGNUT, SPRING
-
890119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
92P5-F8108-00-00 COVER ASSY.COVER ASSY.
-
105UG-F2873-10-00 ...SEAL 1...SEAL 1
-
115UG-F2875-10-00 ...SEAL 3...SEAL 3
-
125UG-2177A-00-00 BOXBOX
-
135UG-28229-00-00 COVER 2COVER 2
-
145UG-14457-00-00 SEALSEAL
-
155UG-14415-00-00 HOLDER, WIREHOLDER, WIRE
-
165UG-14476-00-00 SEALSEAL
-
1790269-05001-00 RIVETRIVET
-
1890183-05008-00 NUT, SPRINGNUT, SPRING
-
1990154-05005-00 SCREW, BINDINGSCREW, BINDING
-
205UG-F254J-00-00 SUPPORT, SIDE PANELSUPPORT, SIDE PANEL
-
2190269-06800-00 RIVETRIVET
-
225UG-F254K-00-00 SUPPORT, SIDE PANEL 2SUPPORT, SIDE PANEL 2
-
2390269-06800-00 RIVETRIVET
-
245UG-K7561-01-00 PROTECTOR, SIDEPROTECTOR, SIDE
-
2590269-06800-00 RIVETRIVET
-
2690464-48800-00 CLAMPCLAMP
-
275UG-F4141-01-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2890269-06800-00 RIVETRIVET
