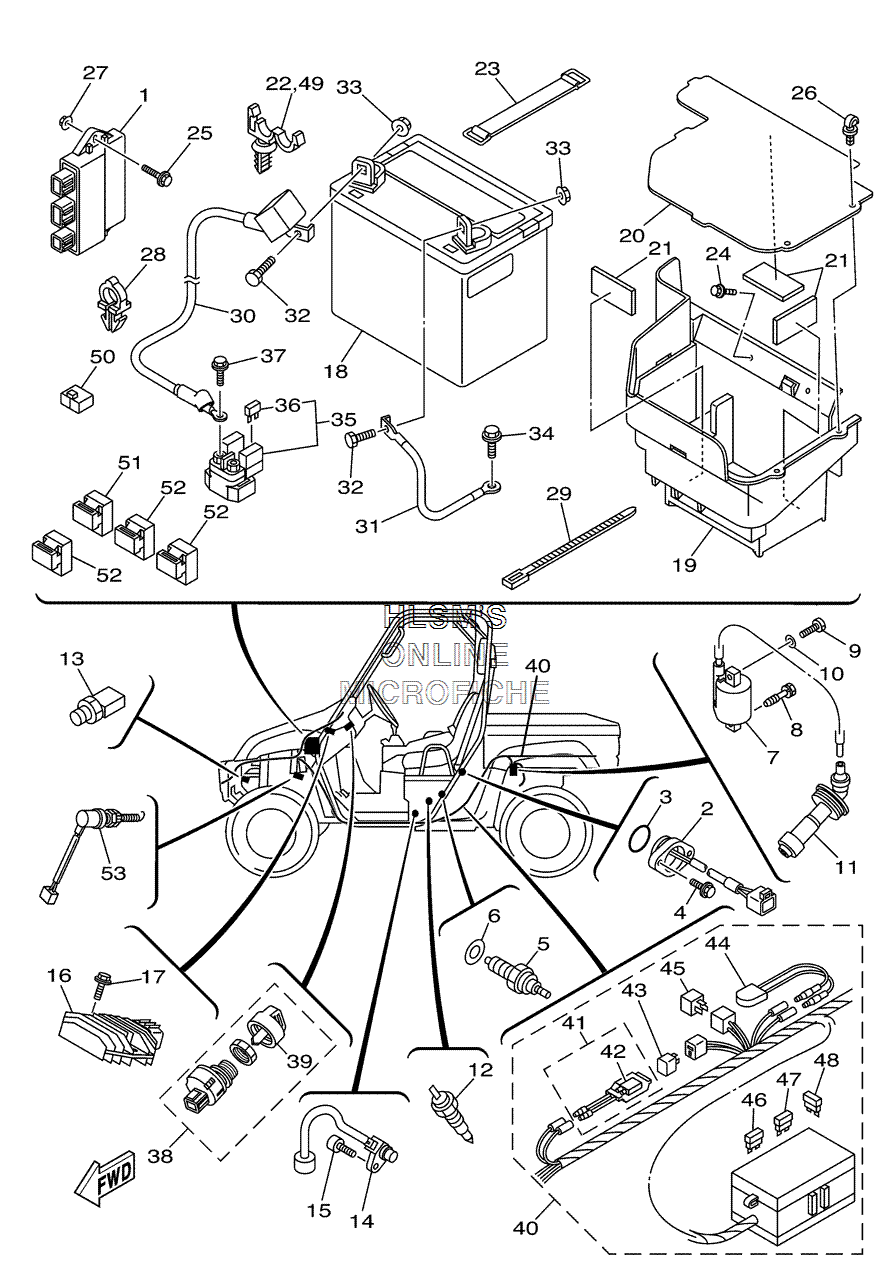

ELECTRICAL для Yamaha RHINO 660 4WD SE - 2006 года выпуска
-
№АртикулНазвание
-
15UG-85540-10-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
25KM-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
393210-29196-00 O-RINGO-RING
-
490119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55LP-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
690430-10148-00 GASKETGASKET
-
75FU-82310-00-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
890109-06723-00 BOLTBOLT
-
997007-06020-00 BOLTBOLT
-
1092907-06600-00 WASHER, PLATEWASHER, PLATE
-
113YF-82370-00-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
125KM-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
135GM-82560-00-00 THERMO SWITCH ASSY.THERMO SWITCH ASSY.
-
145UG-83755-10-00 SENSOR, SPEEDSENSOR, SPEED
-
1591317-06016-00 BOLTBOLT
-
165BN-81960-00-00 RECTIFIER & REGULATOR ASSY.RECTIFIER & REGULATOR ASSY.
-
1790105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
185UG-H2100-00-00 BATTERY ASSY. (GS U1L-11)BATTERY ASSY. (GS U1L-11)
-
195UG-H212B-02-00 BOX, BATTERY 1BOX, BATTERY 1
-
205UG-H2129-10-00 COVER, BATTERYCOVER, BATTERY
-
214XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
2290464-12830-00 CLAMPCLAMP
-
233L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2490119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
259581P-06025-00 BOLT, FLANGEBOLT, FLANGE
-
265UG-F171S-00-00 RIVETRIVET
-
2795707-06600-00 NUT, W/WASHERNUT, W/WASHER
-
2890464-10833-00 CLAMPCLAMP
-
2990464-31827-00 CLAMPCLAMP
-
305UG-H2115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
315UG-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
3297017-06020-00 BOLTBOLT
-
3395707-06500-00 NUT, FLANGENUT, FLANGE
-
3495827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
354SV-81940-12-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
361AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3795027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
385UG-H2510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
395UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
405UG-82590-40-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
415ND-82180-00-00 ...CIRCUIT BREAKER ASSY....CIRCUIT BREAKER ASSY.
-
425ND-82560-00-00 ...THERMO SWITCH ASSY....THERMO SWITCH ASSY.
-
433WP-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
445FU-82560-10-00 ...THERMO SWITCH ASSY....THERMO SWITCH ASSY.
-
453XV-81980-00-00 ...DIODE ASSY....DIODE ASSY.
-
465JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
475JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
485JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
4990464-12830-00 CLAMPCLAMP
-
505UG-82529-00-00 CONNECTORCONNECTOR
-
5129U-81950-93-00 RELAY ASSY.RELAY ASSY.
-
525DM-81950-00-00 RELAY ASSY.RELAY ASSY.
-
534KB-82530-10-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
