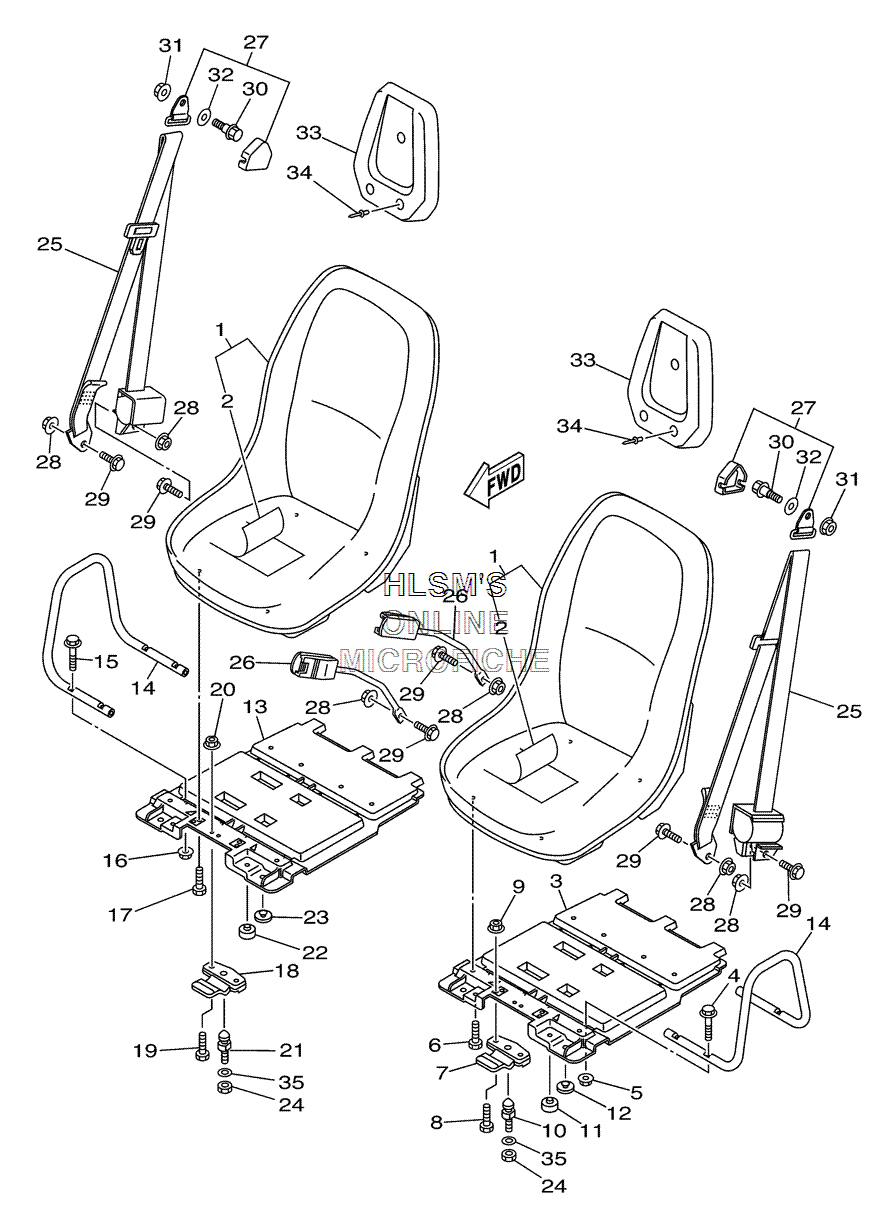

SEAT ASSY. для Yamaha RHINO 660 4WD SE - 2006 года выпуска
-
№АртикулНазвание
-
15UG-F4710-10-00 SINGLE SEAT ASSY.SINGLE SEAT ASSY.
-
25UG-F470F-10-00 ...SEAT COVER COMP....SEAT COVER COMP.
-
35UG-F470E-00-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
49581P-08030-00 BOLT, FLANGEBOLT, FLANGE
-
595607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
695827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7F1B-U3850-01-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
895827-06040-00 BOLT, FLANGEBOLT, FLANGE
-
995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
10GH1-U3774-00-00 PINPIN
-
114XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
12371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
135UG-F470E-00-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
142P5-F474W-10-00 ASSIST, GRIP 2ASSIST, GRIP 2
-
159581P-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1695607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1795827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
18F1B-U3850-01-00 SEAT LOCK ASSY.SEAT LOCK ASSY.
-
1995827-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
21GH1-U3774-00-00 PINPIN
-
224XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
23371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2490185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
255UG-G6241-00-00 BELTBELT
-
265UG-G6242-00-00 BELT 2BELT 2
-
275UG-F4796-00-00 COVERCOVER
-
289560P-10200-00 NUT, FLANGENUT, FLANGE
-
2995817-10022-00 BOLT, FLANGEBOLT, FLANGE
-
305UG-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
315UG-F4735-00-00 SPEED NUTSPEED NUT
-
3290201-11800-00 WASHER, PLATEWASHER, PLATE
-
335UG-F472L-00-00 HEAD RESTHEAD REST
-
3490267-48820-00 RIVET, BLINDRIVET, BLIND
-
3590201-109U6-00 WASHER, PLATEWASHER, PLATE
