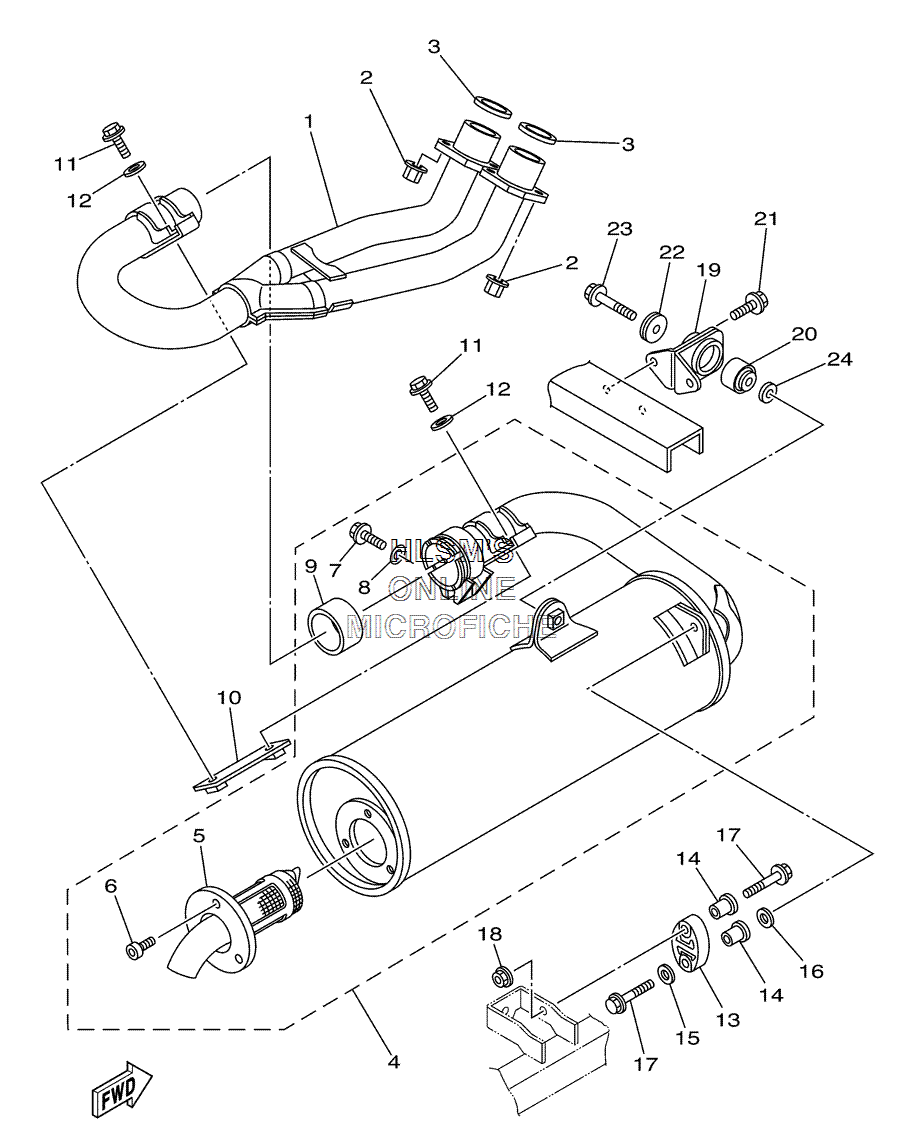

EXHAUST ASSY. для Yamaha RHINO 660 4WD SE - 2006 года выпуска
-
№АртикулНазвание
-
15UG-E4611-01-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
290179-08410-00 NUTNUT
-
33YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
45UG-E4710-01-00 MUFFLER ASSY. 1MUFFLER ASSY. 1
-
55UG-E4752-00-00 ...PIPE, OUTLET...PIPE, OUTLET
-
65ND-E4719-00-00 ...BOLT, MUFFLER...BOLT, MUFFLER
-
75UG-E4777-00-00 ...BOLT...BOLT
-
85ND-E4759-00-00 ...WASHER...WASHER
-
95UG-E4755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
105UG-E4639-00-00 STAY, EXHAUST PIPE 1STAY, EXHAUST PIPE 1
-
1195817-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1290201-06778-00 WASHER, PLATEWASHER, PLATE
-
135UG-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
1490387-066J1-00 COLLARCOLLAR
-
1590201-06023-00 WASHER, PLATEWASHER, PLATE
-
1690201-05016-00 WASHER, PLATEWASHER, PLATE
-
1795827-06035-00 BOLT, FLANGEBOLT, FLANGE
-
1895707-06500-00 NUT, FLANGENUT, FLANGE
-
195UG-F1440-00-00 MUFF STAY SUB-KUMIMUFF STAY SUB-KUMI
-
205KM-27414-01-00 DAMPERDAMPER
-
2195817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
2290209-08249-00 WASHERWASHER
-
2395807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
2490201-07008-00 WASHER, PLATEWASHER, PLATE
