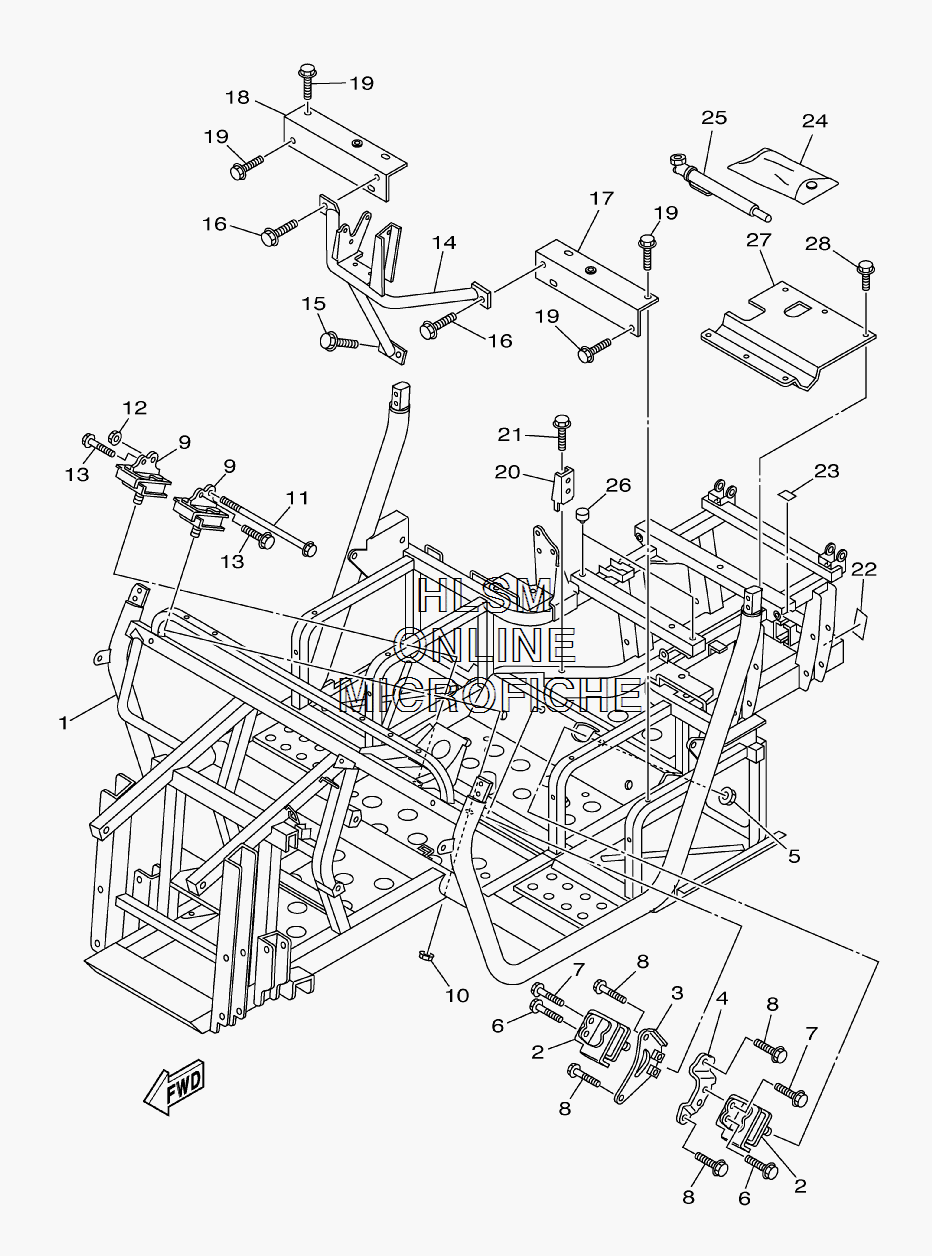

FRAME для Yamaha RHINO 660 4x4 SE - 2007 года выпуска
-
№АртикулНазвание
-
15UG-F1110-40-00 FRAME COMP.FRAME COMP.
-
15UG-F1110-49-00 FRAME COMP.FRAME COMP.
-
25UG-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
35KM-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
45KM-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
59560P-10200-00 NUT, FLANGENUT, FLANGE
-
695027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
795817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
895817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
95UG-21486-00-00 DAMPER 2DAMPER 2
-
109560P-10200-00 NUT, FLANGENUT, FLANGE
-
1190105-10300-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
129560P-10200-00 NUT, FLANGENUT, FLANGE
-
1395027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
145UG-F1986-00-00 REINFORCEMENT, FRAME 1REINFORCEMENT, FRAME 1
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
1695817-10020-00 BOLT, FLANGEBOLT, FLANGE
-
175UG-F114H-01-00 SUPPORT, SEATSUPPORT, SEAT
-
185UG-F114J-01-00 SUPPORT, SEATSUPPORT, SEAT
-
1990105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
205UG-F116B-00-00 BRACKETBRACKET
-
2190105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
225UG-F151K-02-00 LABEL 7LABEL 7
-
235UG-F151J-00-00 LABEL 6LABEL 6
-
245ND-F8100-00-00 TOOL KITTOOL KIT
-
255UG-F811A-00-00 GAUGE, AIRGAUGE, AIR
-
265UG-F7114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
275UG-F2898-00-00 INSULATOR, HEATINSULATOR, HEAT
-
2890105-06831-00 BOLT, FLANGEBOLT, FLANGE
