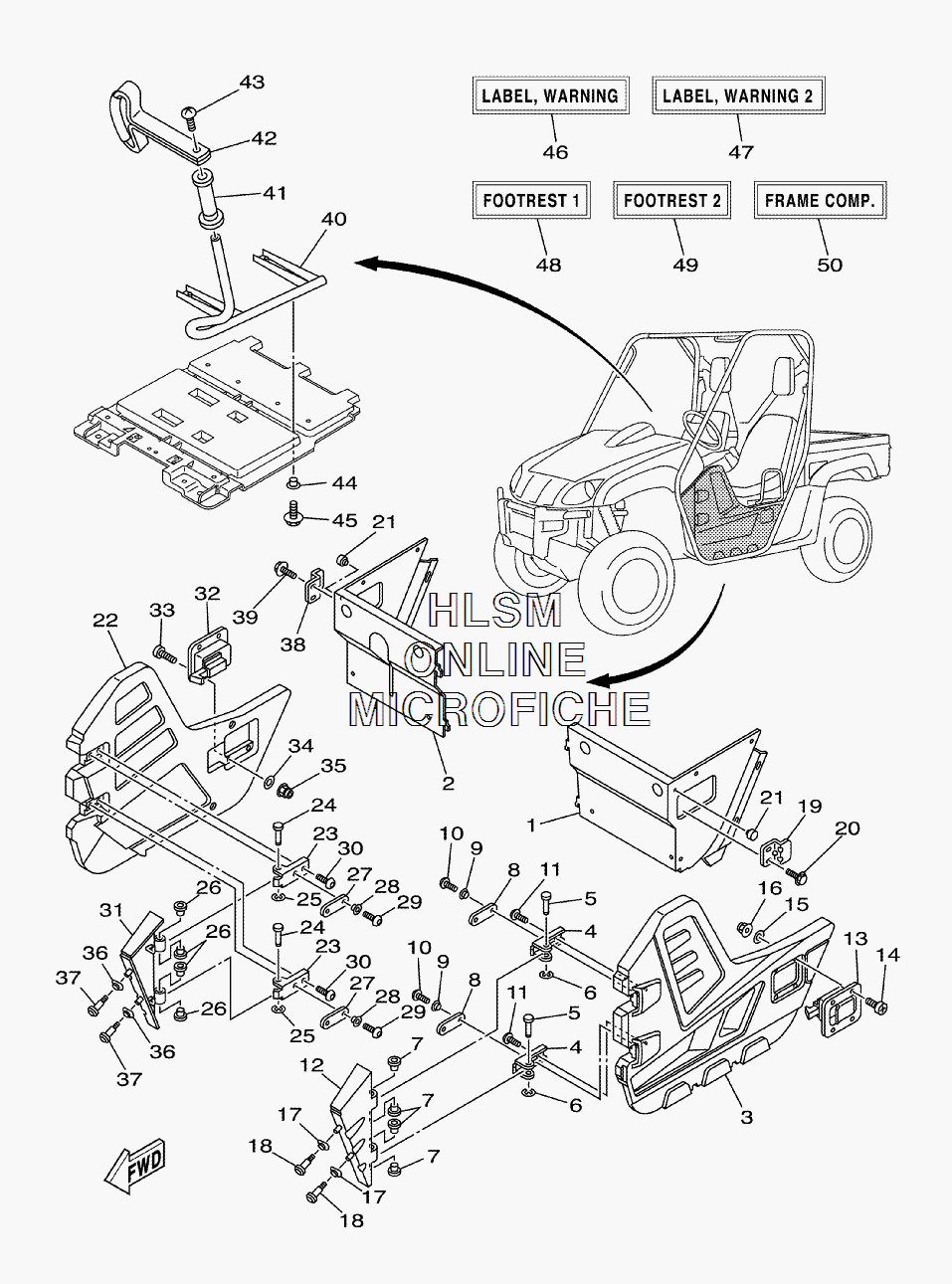

WITH DOORS для Yamaha RHINO 660 4x4 SE - 2007 года выпуска
-
№АртикулНазвание
-
15UG-F254J-11-00 SUPPORT, SIDE PANEL (SEE SIDE COVERS)SUPPORT, SIDE PANEL (SEE SIDE COVERS)
-
25UG-F254K-11-00 SUPPORT, SIDE PANEL 2 (SEE SIDE COVERS)SUPPORT, SIDE PANEL 2 (SEE SIDE COVERS)
-
35B4-F2864-00-00 COVER, SIDE 1COVER, SIDE 1
-
45B4-F1787-00-00 HINGEHINGE
-
55B4-F146A-00-00 PIN 1PIN 1
-
65B4-F3447-00-00 CLIPCLIP
-
72P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
85B4-F2929-00-00 BAND, RUBBERBAND, RUBBER
-
990387-06089-00 COLLARCOLLAR
-
105B4-F1739-00-00 BOLTBOLT
-
115B4-F1722-00-00 BOLT 2BOLT 2
-
125B4-F197J-00-00 HINGE 1HINGE 1
-
135B4-F389F-00-00 HANDLE, LATCHHANDLE, LATCH
-
1498907-05020-00 SCREW, BINDSCREW, BIND
-
155B4-F2149-00-00 WASHERWASHER
-
1695602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
175UG-K7526-00-00 WASHER 2WASHER 2
-
185B4-K7519-00-00 BOLTBOLT
-
195B4-F389E-00-00 LATCHLATCH
-
205B4-F1738-00-00 BOLTBOLT
-
215TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
225B4-F2868-00-00 COVER, SIDE 2COVER, SIDE 2
-
235B4-F1797-00-00 HINGEHINGE
-
245B4-F146A-00-00 PIN 1PIN 1
-
255B4-F3447-00-00 CLIPCLIP
-
262P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
275B4-F2929-00-00 BAND, RUBBERBAND, RUBBER
-
2890387-06089-00 COLLARCOLLAR
-
295B4-F1739-00-00 BOLTBOLT
-
305B4-F1722-00-00 BOLT 2BOLT 2
-
315B4-F197K-00-00 HINGE 2HINGE 2
-
325B4-F389F-00-00 HANDLE, LATCHHANDLE, LATCH
-
3398907-05020-00 SCREW, BINDSCREW, BIND
-
345B4-F2149-00-00 WASHERWASHER
-
3595602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
365UG-K7526-00-00 WASHER 2WASHER 2
-
375B4-K7519-00-00 BOLTBOLT
-
385B4-F389E-00-00 LATCHLATCH
-
395B4-F1738-00-00 BOLTBOLT
-
405B4-F474A-00-00 ASSIST, GRIPASSIST, GRIP
-
415B4-F6241-00-00 GRIPGRIP
-
425B4-F4773-00-00 HANDLE, SEATHANDLE, SEAT
-
4398907-06020-00 SCREW, BINDSCREW, BIND
-
4490387-06210-00 COLLARCOLLAR
-
4590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
465B4-F1568-01-00 LABEL, WARNING (SEE EMBLEM LABEL 1)LABEL, WARNING (SEE EMBLEM LABEL 1)
-
475B4-F1558-00-00 LABEL, WARNING 2 (SEE EMBLEM LABEL 1)LABEL, WARNING 2 (SEE EMBLEM LABEL 1)
-
485UG-F4711-11-00 FOOTREST 1 (STAND FOOTREST)FOOTREST 1 (STAND FOOTREST)
-
495UG-F4721-11-00 FOOTREST 2 (STAND FOOTREST)FOOTREST 2 (STAND FOOTREST)
-
505UG-F1110-49-00 FRAME COMP.FRAME COMP.
