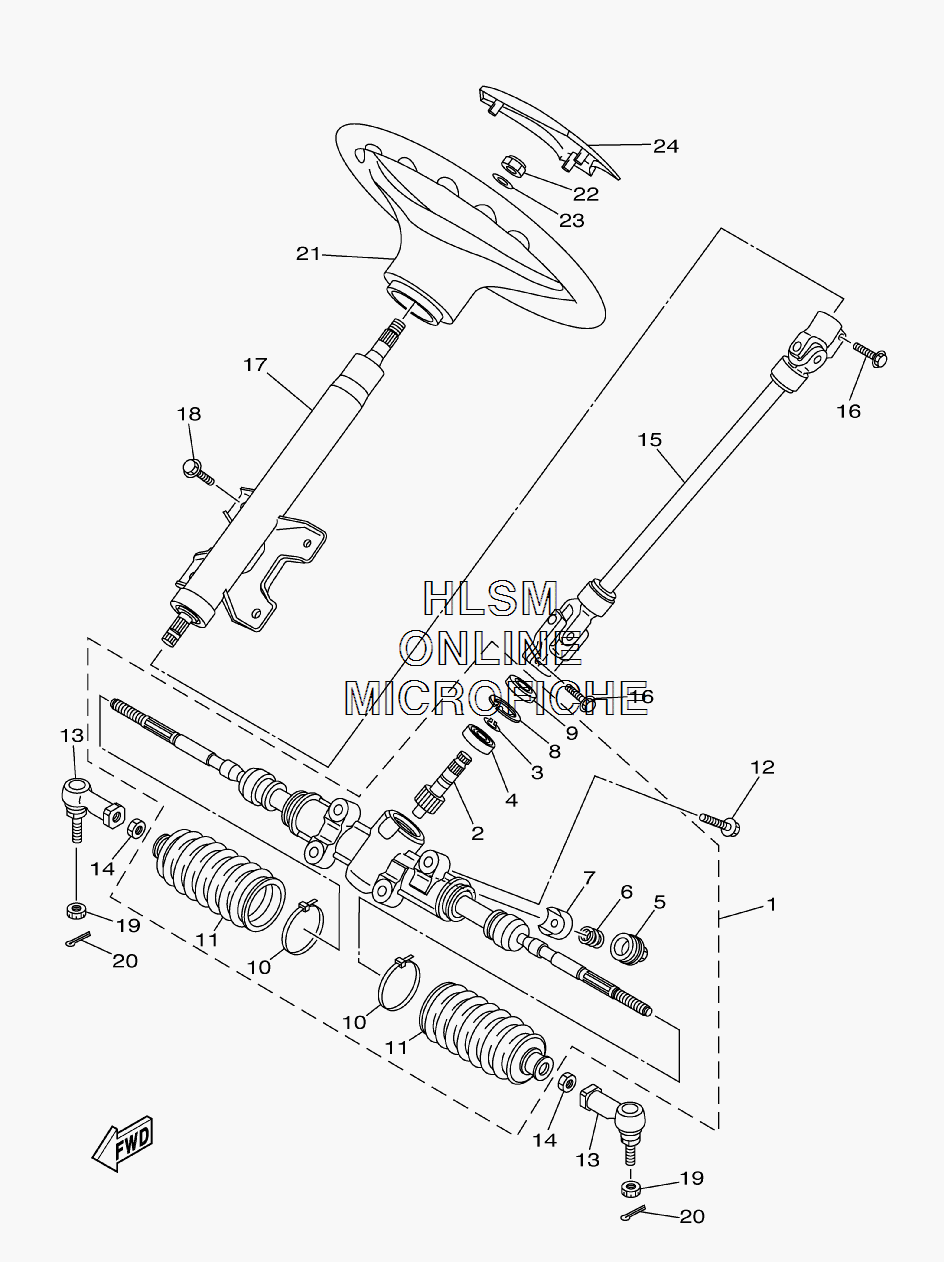

STEERING для Yamaha RHINO 660 4x4 SE - 2007 года выпуска
-
№АртикулНазвание
-
15UG-F3400-00-00 STEERING ASSYSTEERING ASSY
-
25UG-F3863-00-00 ...GEAR, STEERING DRIVE...GEAR, STEERING DRIVE
-
35UG-F3183-00-00 ...CIRCLIP...CIRCLIP
-
45UG-F3812-00-00 ...PLANE BEARING, STEERING...PLANE BEARING, STEERING
-
55UG-F387G-00-00 ...COVER, ADJUST...COVER, ADJUST
-
65UG-F387K-00-00 ...SPRING, PRESSURE...SPRING, PRESSURE
-
75UG-F387F-00-00 ...PAD, PRESSURE...PAD, PRESSURE
-
85UG-F387J-00-00 ...RING, STOPPER...RING, STOPPER
-
95UG-F3844-00-00 ...SEAL...SEAL
-
105UG-F3489-00-00 ...BAND...BAND
-
115UG-F3527-00-00 ...SEAL, DUST 1...SEAL, DUST 1
-
1295027-10025-00 BOLT, FLANGEBOLT, FLANGE
-
135UG-F3841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
144XE-F3833-00-00 NUT 1NUT 1
-
155UG-F3840-00-00 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
1695027-08025-00 BOLT, FLANGEBOLT, FLANGE
-
175UG-F3811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
1895817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1990171-12039-00 NUT, CASTLENUT, CASTLE
-
2091401-20020-00 PIN, COTTERPIN, COTTER
-
215UG-F3838-10-00 WHEEL, STEERINGWHEEL, STEERING
-
2290185-12061-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2392907-12200-00 WASHERWASHER
-
245UG-F3818-10-00 COVER, STEERINGCOVER, STEERING
