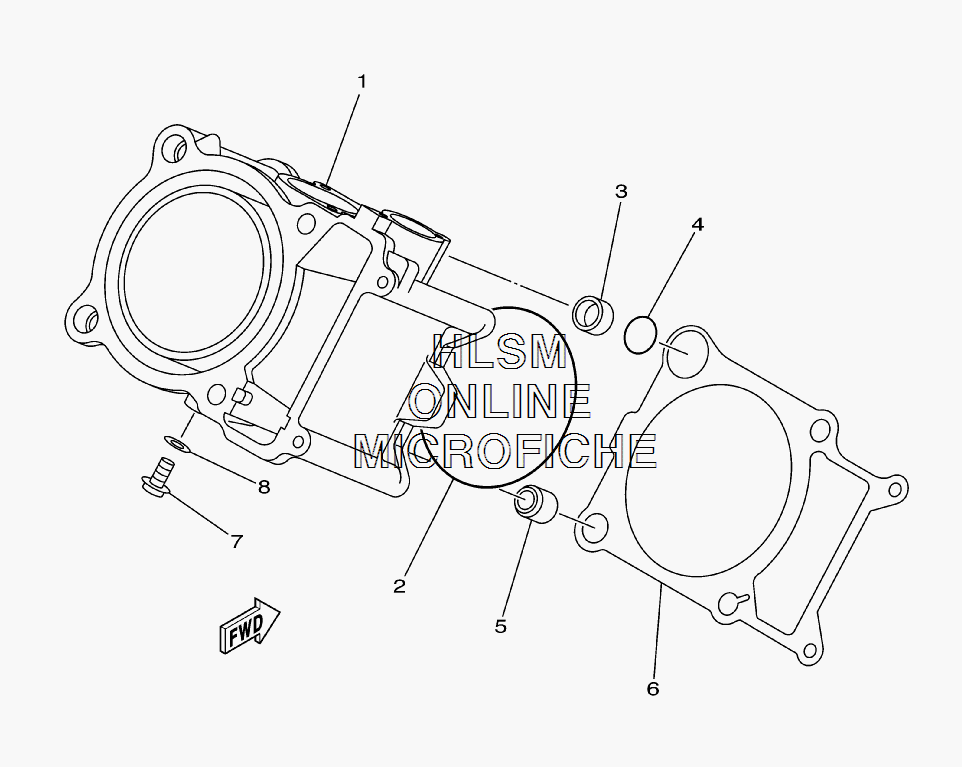

CYLINDER для Yamaha RHINO 450 - 2008 года выпуска
-
№АртикулНазвание
-
15ND-11310-00-00 CYLINDERCYLINDER
-
293210-89447-00 O-RINGO-RING
-
390387-16547-00 COLLARCOLLAR
-
493210-18322-00 O-RINGO-RING
-
599530-14016-00 PIN, DOWELPIN, DOWEL
-
65GH-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
790153-06002-00 SCREW, HEXAGONSCREW, HEXAGON
-
890430-06014-00 GASKETGASKET
