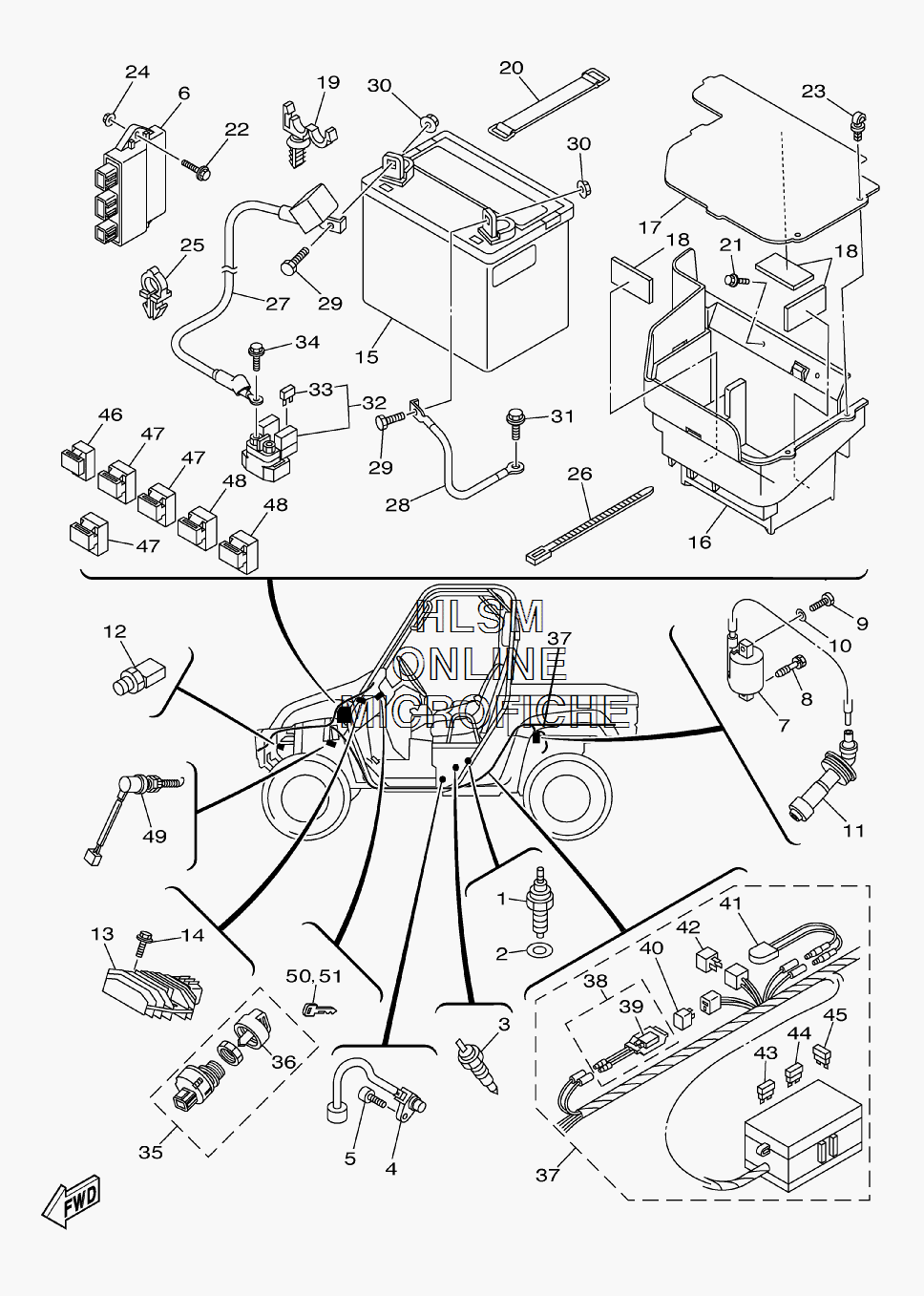

ELECTRICAL для Yamaha RHINO 450 - 2008 года выпуска
-
№АртикулНазвание
-
13GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
290430-10148-00 GASKETGASKET
-
34BA-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
42P5-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
590110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
62P5-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
75KM-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
890109-06723-00 BOLTBOLT
-
997002-06020-00 BOLTBOLT
-
1092902-06600-00 WASHER, PLATEWASHER, PLATE
-
111UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
125GM-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
135BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
15BTG-11U1L-D0-00 BATTERY ASSY (GS U1L-11)BATTERY ASSY (GS U1L-11)
-
165UG-H212B-02-00 BOX, BATTERY 1BOX, BATTERY 1
-
175UG-H2129-10-00 COVER, BATTERYCOVER, BATTERY
-
184XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
1990464-12830-00 CLAMPCLAMP
-
203L8-82131-01-00 BAND, BATTERYBAND, BATTERY
-
2190119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2295812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
235UG-F171S-00-00 RIVETRIVET
-
2495702-06500-00 NUT, WITH WASHERNUT, WITH WASHER
-
2590464-10833-00 CLAMPCLAMP
-
2690464-31827-00 CLAMPCLAMP
-
275UG-H2115-10-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
285UG-H2116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2997080-08020-00 BOLTBOLT
-
3090179-08015-00 NUTNUT
-
3195822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
325UG-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
331AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
3495022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
355UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
365UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
372P5-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
385ND-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
395ND-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
403WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
415FU-82560-10-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
423XV-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
435JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
445JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
455JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
4629U-81950-93-00 RELAY ASSYRELAY ASSY
-
475DM-81950-00-00 RELAY ASSYRELAY ASSY
-
481UY-81950-92-00 RELAY ASSYRELAY ASSY
-
494KB-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
505UG-H2511-09-00 KEY BLANK (A) 5000~5149 (OPT)KEY BLANK (A) 5000~5149 (OPT)
-
515UG-H2511-19-00 KEY BLANK (A) 5150~5299 (OPT)KEY BLANK (A) 5150~5299 (OPT)
