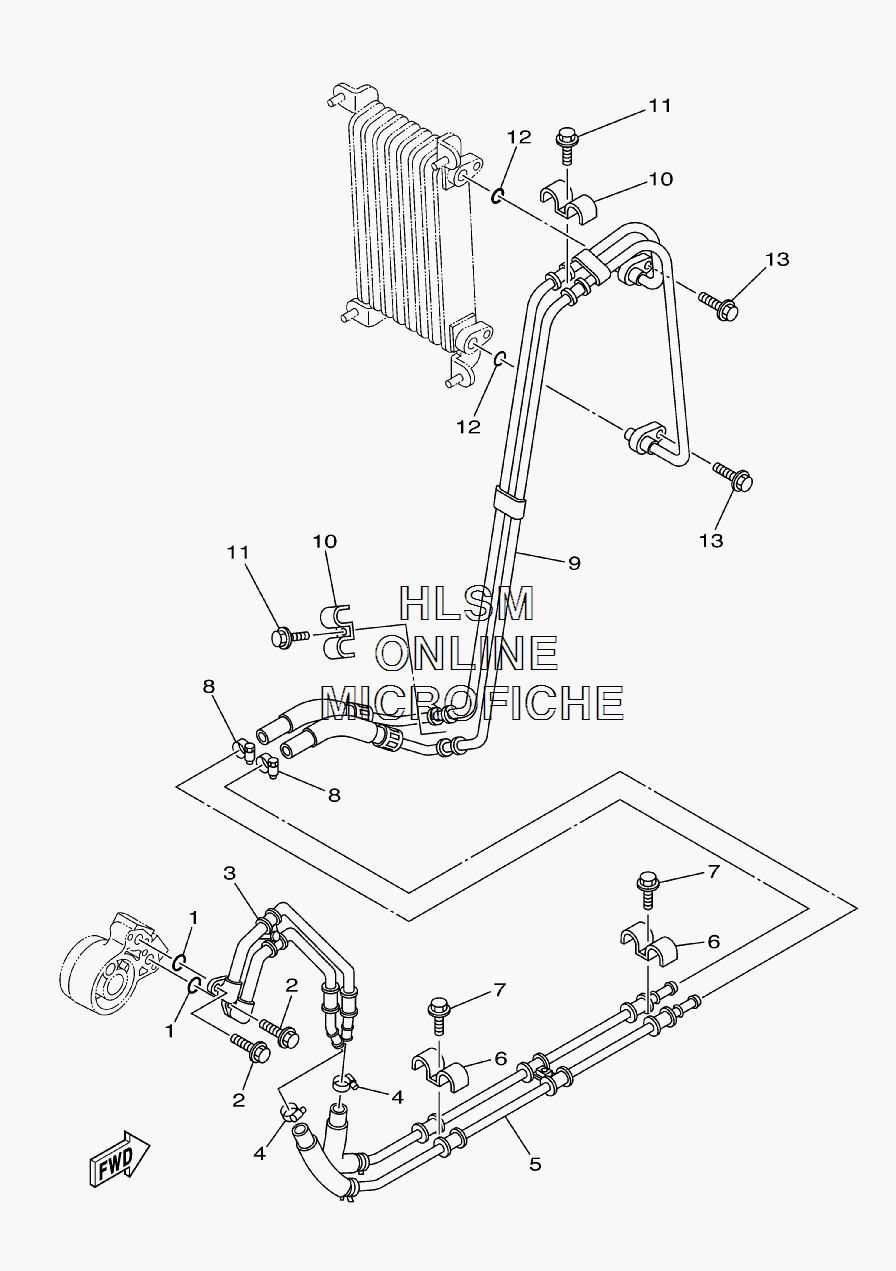

OIL PIPE для Yamaha RHINO 450 - 2008 года выпуска
-
№АртикулНазвание
-
193210-10197-00 O-RINGO-RING
-
291312-06016-00 BOLTBOLT
-
32P5-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
490450-22001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
52P5-E3406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
690462-15800-00 CLAMPCLAMP
-
790105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
890450-22001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
95UG-E3405-00-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
1090462-15800-00 CLAMPCLAMP
-
1190105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
1293210-11M59-00 O-RINGO-RING
-
1395802-06020-00 BOLT, FLANGEBOLT, FLANGE
