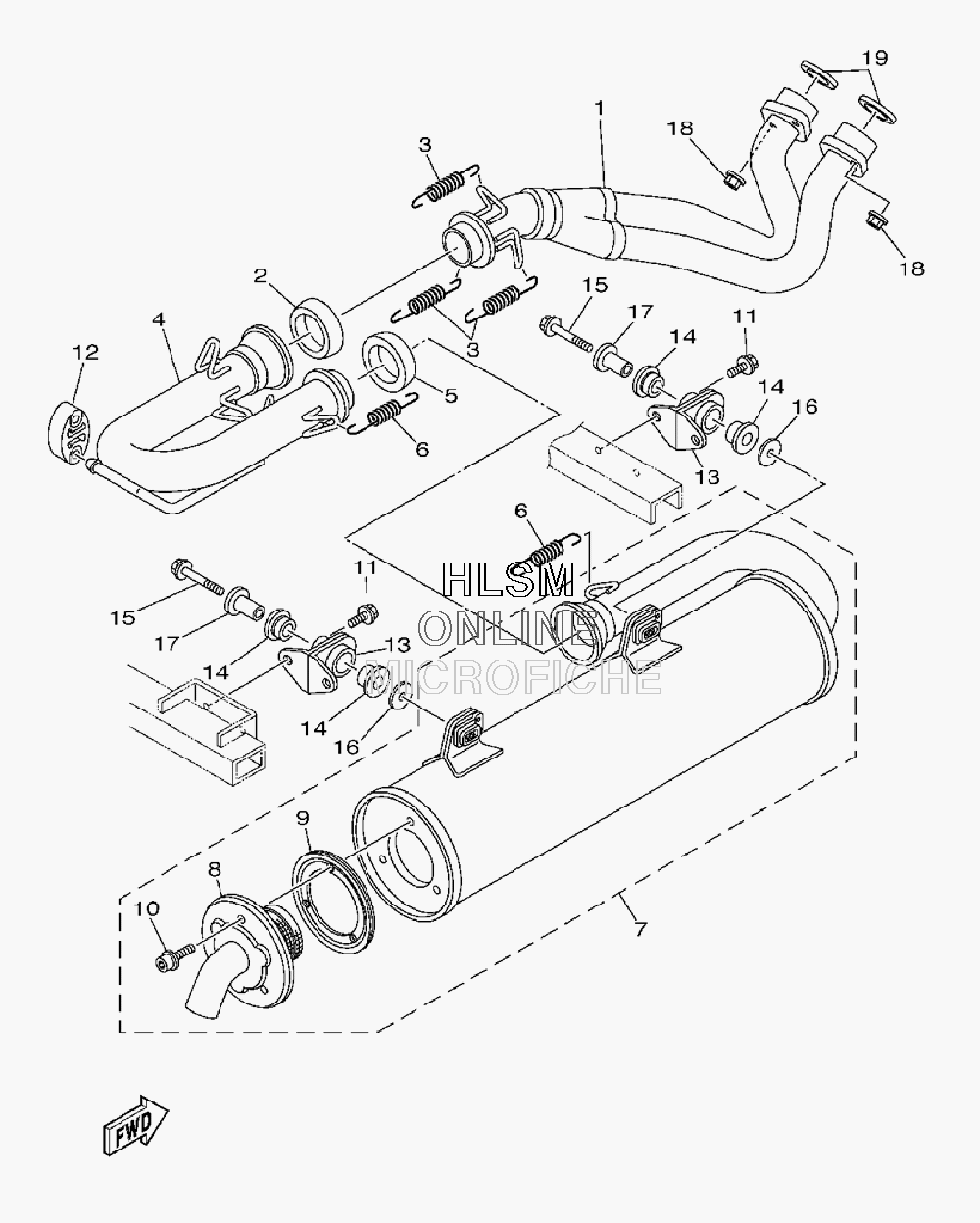

EXHAUST для Yamaha RHINO 700 FI - 2009 года выпуска
-
№АртикулНазвание
-
15B4-E4611-00-00 PIPE, EXHAUST 1PIPE, EXHAUST 1
-
23B4-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
390506-26010-00 SPRING, TENSIONSPRING, TENSION
-
45B4-E4621-00-00 PIPE, EXHAUST 2PIPE, EXHAUST 2
-
53B4-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
690506-26010-00 SPRING, TENSIONSPRING, TENSION
-
75B4-E4710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
85B4-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
95B4-E4755-00-00 GASKET, SILENCERGASKET, SILENCER
-
105B4-E4719-00-00 BOLT, MUFFLERBOLT, MUFFLER
-
1195812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
125UG-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
135B4-F1440-00-00 MUFFLER STAY SUB-KUMIMUFFLER STAY SUB-KUMI
-
145VY-27424-00-00 DAMPER, FOOTREST 2DAMPER, FOOTREST 2
-
1595802-08045-00 BOLT, FLANGEBOLT, FLANGE
-
1690201-08034-00 WASHER, PLATEWASHER, PLATE
-
1790387-08039-00 COLLARCOLLAR
-
1895702-08500-00 NUT, WITH WASHERNUT, WITH WASHER
-
193YF-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
