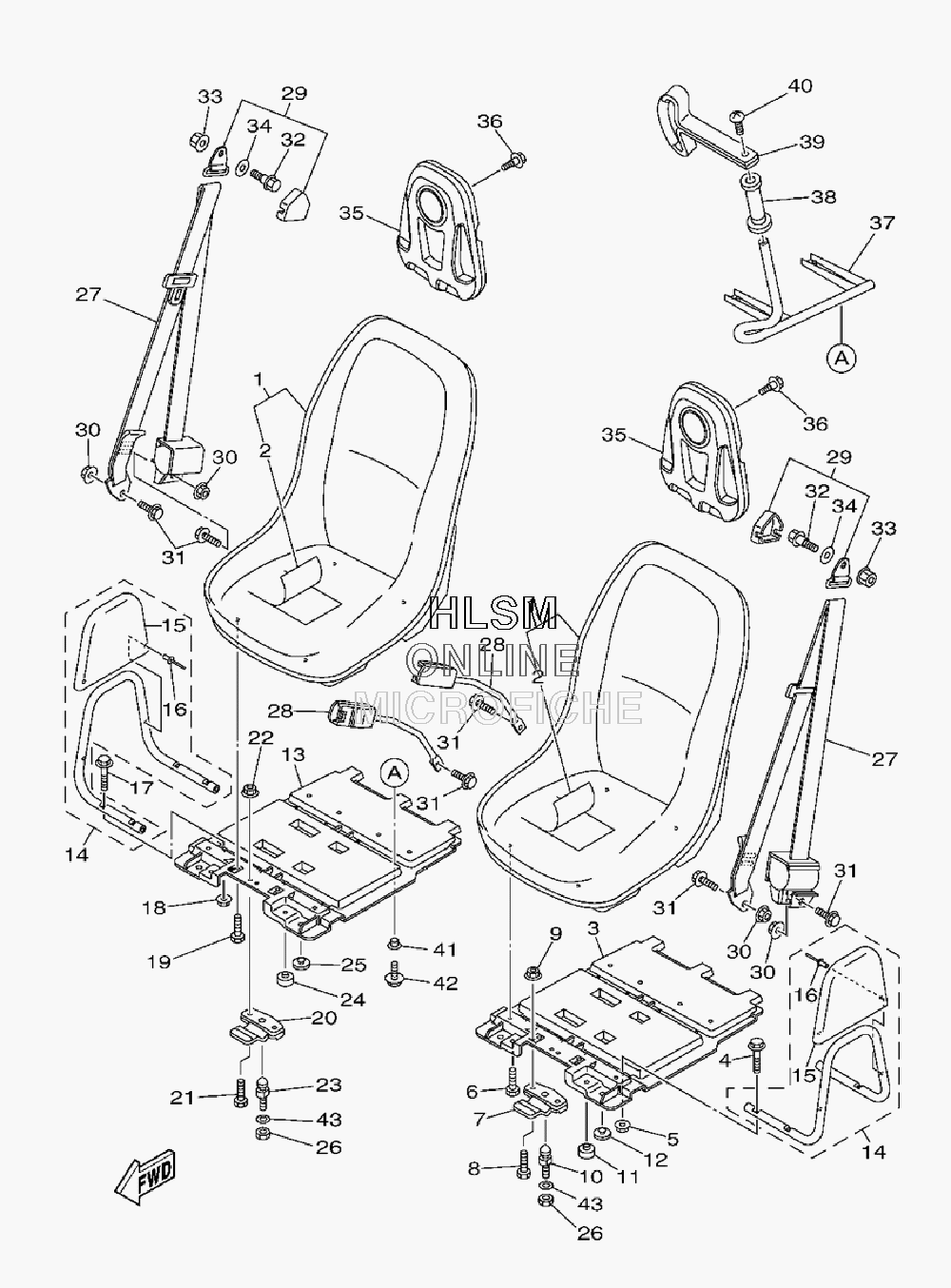

SEAT для Yamaha RHINO 700 FI - 2009 года выпуска
-
№АртикулНазвание
-
15UG-F4710-00-00 SINGLE SEAT ASSY (BLACK)SINGLE SEAT ASSY (BLACK)
-
25UG-F470F-00-00 SEAT COVER COMP. (BLACK)SEAT COVER COMP. (BLACK)
-
35UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
495812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
895822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
10GH1-U3774-00-00 PINPIN
-
114XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
12371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
135UG-F470E-01-00 BOTTOM PLATE COMP.BOTTOM PLATE COMP.
-
145B4-F470K-00-00 ASSIST GRIP ASSY, 2ASSIST GRIP ASSY, 2
-
155B4-F475X-00-00 COVER, 2COVER, 2
-
1690267-32806-00 RIVET, BLINDRIVET, BLIND
-
1795812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1995822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
20F1B-U3850-02-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
2195822-06040-00 BOLT, FLANGEBOLT, FLANGE
-
2295602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
23GH1-U3774-00-00 PINPIN
-
244XE-F4747-00-00 DAMPER, SEATDAMPER, SEAT
-
25371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
2690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
275UG-G6241-10-00 SEAT BELT (OUTSIDE)SEAT BELT (OUTSIDE)
-
285UG-G6242-10-00 BELT 2BELT 2
-
295UG-F4796-00-00 COVERCOVER
-
3095602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3195812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
325UG-F3394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
335UG-F4735-01-00 SPEED NUTSPEED NUT
-
3490201-11801-00 WASHER, PLATEWASHER, PLATE
-
355UG-F472L-50-00 HEAD REST (BLACK)HEAD REST (BLACK)
-
3690109-063F5-00 BOLTBOLT
-
375B4-F474A-00-00 ASSIST, GRIPASSIST, GRIP
-
385B4-F6241-00-00 GRIPGRIP
-
395B4-F4773-00-00 HANDLE, SEATHANDLE, SEAT
-
4098907-06020-00 SCREW, BINDSCREW, BIND
-
4190387-06210-00 COLLARCOLLAR
-
4290105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
4390201-109U6-00 WASHER, PLATEWASHER, PLATE
