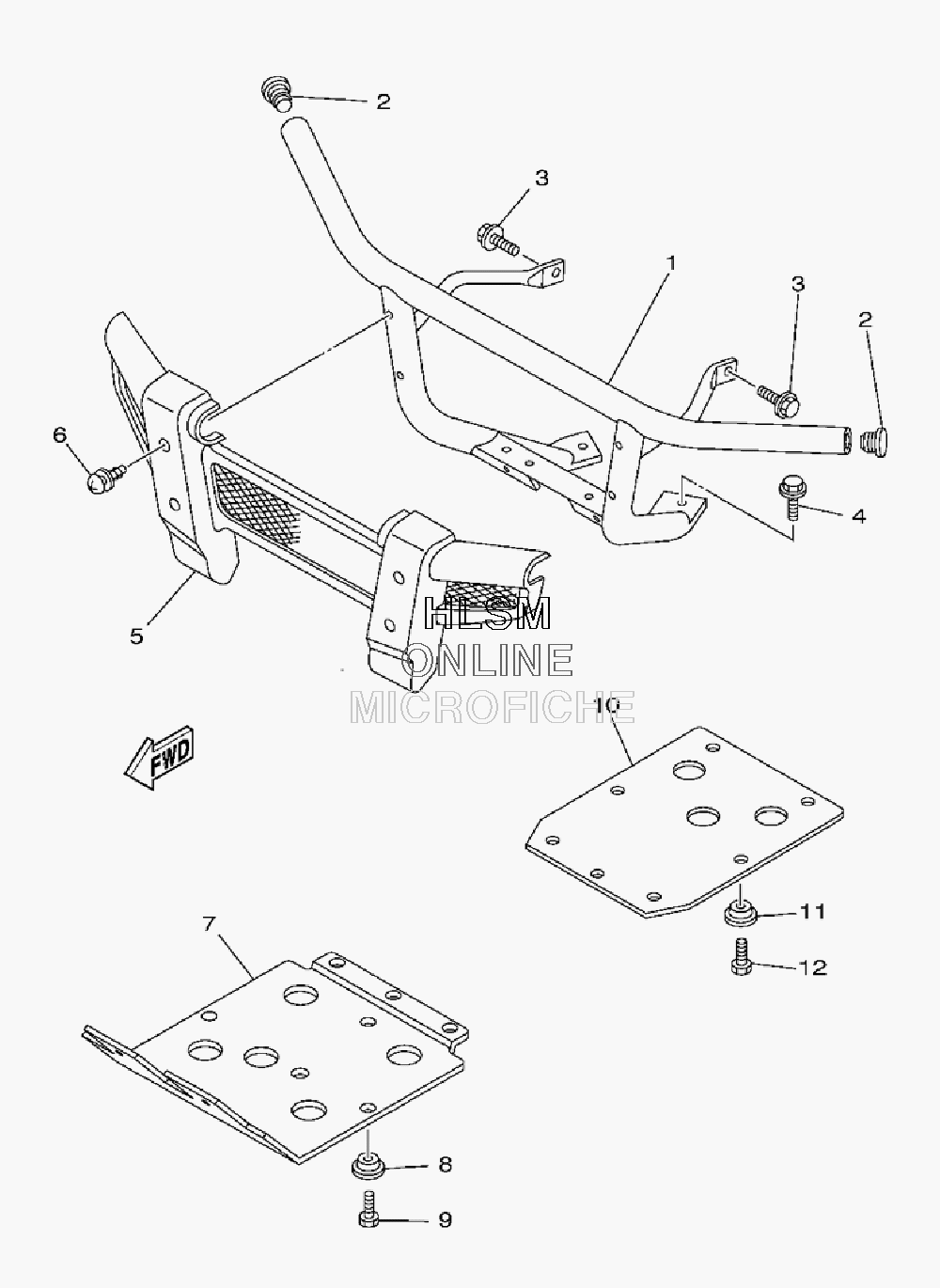

RACK AND BUMPER для Yamaha RHINO 700 FI - 2009 года выпуска
-
№АртикулНазвание
-
12P5-F845N-20-00 BAR, CARRY FRONTBAR, CARRY FRONT
-
25UG-F2417-00-00 PLUG (FRONT BUMPER)PLUG (FRONT BUMPER)
-
395812-10020-00 BOLT, FLANGEBOLT, FLANGE
-
495812-12025-00 BOLT, FLANGEBOLT, FLANGE
-
55UG-F842A-00-00 COVER 5COVER 5
-
690119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
72P5-F8385-01-00 COVER, LOWERCOVER, LOWER
-
85UG-F8329-01-00 SPACERSPACER
-
990105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
105UG-F8395-01-00 COVER, UNDERCOVER, UNDER
-
115UG-F8329-01-00 SPACERSPACER
-
1290105-06832-00 BOLT, FLANGEBOLT, FLANGE
