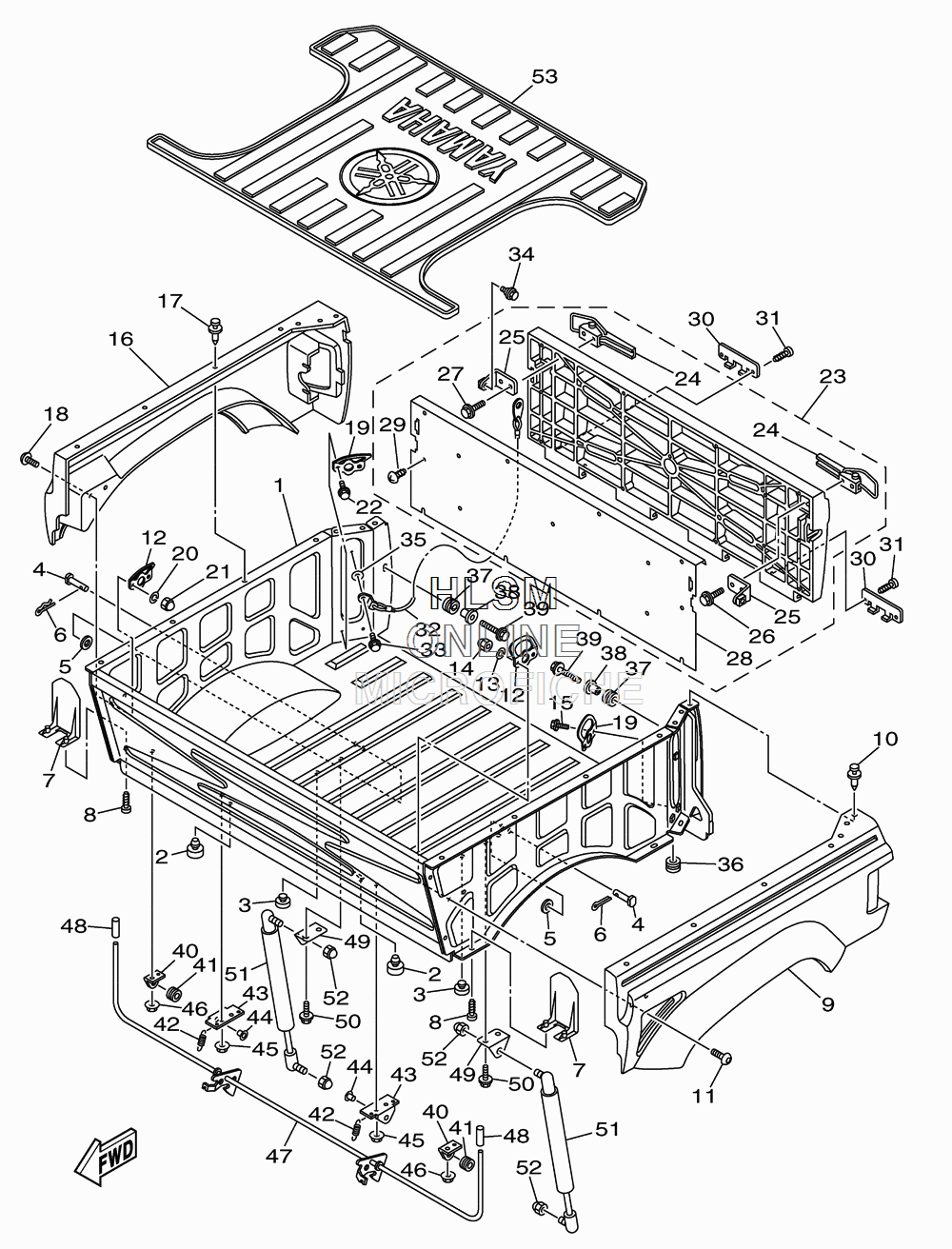

CARRIER для Yamaha RHINO 700 HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
12P5-F4850-02-00 CARRIER BOX ASSYCARRIER BOX ASSY
-
24X4-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
3128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
490240-12002-00 PIN, CLEVISPIN, CLEVIS
-
590201-12049-00 WASHER, PLATEWASHER, PLATE
-
691402-30025-00 PIN, COTTERPIN, COTTER
-
72P5-F6123-00-00 GUARD, LEVERGUARD, LEVER
-
890167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
95UG-K8193-G0-00 PANEL, REAR FENDER 3PANEL, REAR FENDER 3
-
1090269-06800-00 RIVETRIVET
-
1190110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
125UG-F4867-00-00 HOOKHOOK
-
1392902-06100-00 WASHER, SPRINGWASHER, SPRING
-
1495307-06800-00 NUTNUT
-
1595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
165UG-K8194-G0-00 PANEL, REAR FENDER 4PANEL, REAR FENDER 4
-
1790269-06800-00 RIVETRIVET
-
1890110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
195UG-F4867-00-00 HOOKHOOK
-
2092902-06100-00 WASHER, SPRINGWASHER, SPRING
-
2195307-06800-00 NUTNUT
-
2295817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
235UG-K810N-20-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
245UG-F389E-00-00 LATCHLATCH
-
255UG-F849R-00-00 BRACKET, TRUNK STOPPERBRACKET, TRUNK STOPPER
-
2695822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2795822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
285UG-K8365-00-00 CASECASE
-
2990167-05030-00 SCREW, TAPPINGSCREW, TAPPING
-
305UG-F4669-00-00 COVER, HINGECOVER, HINGE
-
3190167-05025-00 SCREW, TAPPINGSCREW, TAPPING
-
325UG-K7195-10-00 HOLDER, CABLEHOLDER, CABLE
-
3390109-06212-00 BOLTBOLT
-
3490109-06212-00 BOLTBOLT
-
3592902-06200-00 WASHERWASHER
-
3690480-15235-00 GROMMETGROMMET
-
3790480-18290-00 GROMMETGROMMET
-
3890387-066J1-00 COLLARCOLLAR
-
3995822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
402P5-K7175-00-00 HOLDER, LATCHHOLDER, LATCH
-
4190480-15235-00 GROMMETGROMMET
-
4290506-16451-00 SPRING, TENSIONSPRING, TENSION
-
432P5-K7185-00-00 PLATE 1PLATE 1
-
442P5-K7515-00-00 BUSH, RUBBER 1BUSH, RUBBER 1
-
4595702-08500-00 NUT, FLANGENUT, FLANGE
-
4695702-06500-00 NUT, FLANGENUT, FLANGE
-
472P5-K7180-00-00 LATCH ASSYLATCH ASSY
-
485UG-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
495UG-F1798-11-00 BRACKET, DAMPERBRACKET, DAMPER
-
5090105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
515UG-F8415-00-00 DAMPER 1DAMPER 1
-
5295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
535UG-F483J-00-00 MATMAT
