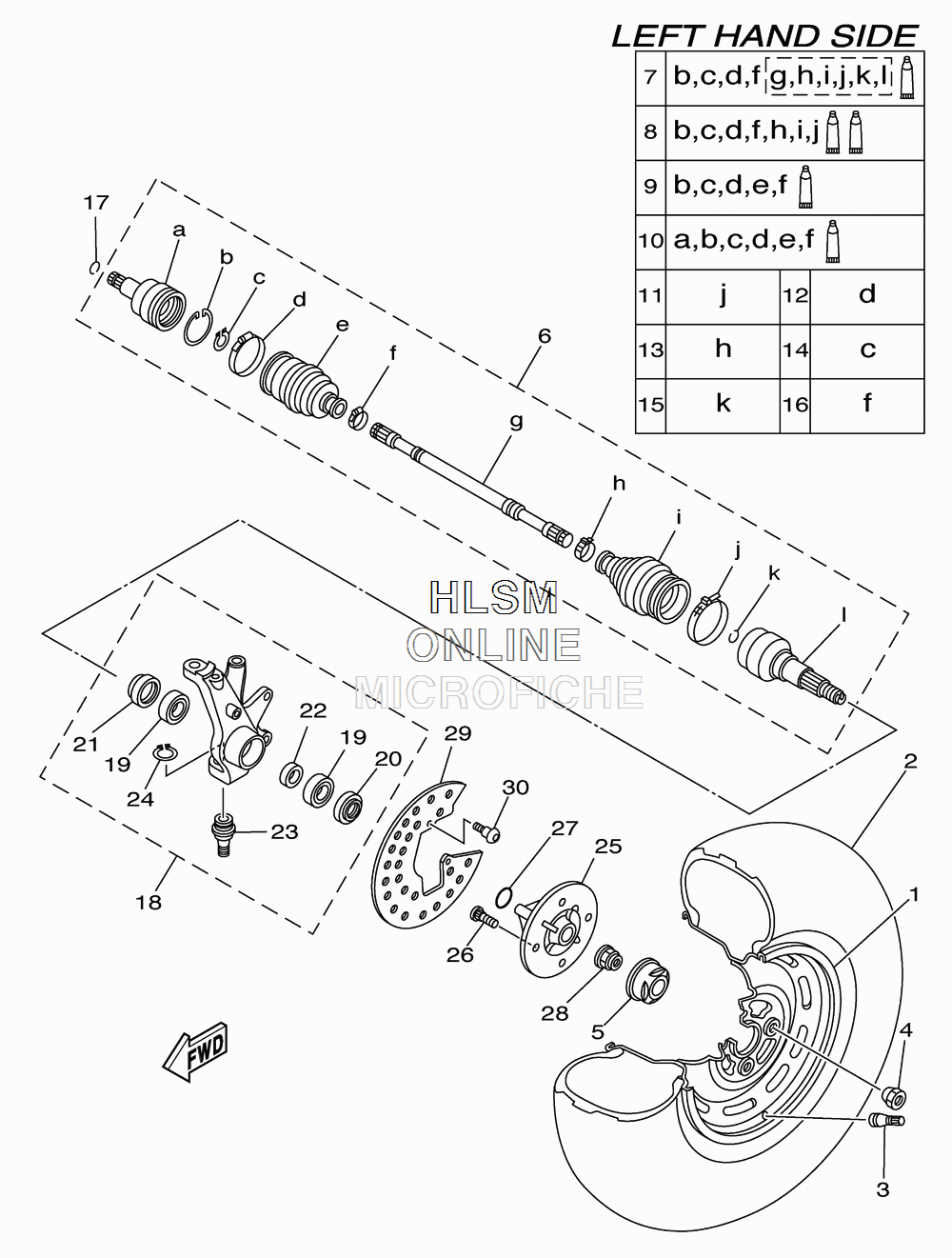

WHEEL - FRONT LEFT SIDE W/ AXLE ASSY для Yamaha RHINO 700 HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15UG-F5180-00-00 FRONT RIM (12 X 6.0)FRONT RIM (12 X 6.0)
-
294108-12809-00 TIRE (25X8.00-12 M951Y TL)TIRE (25X8.00-12 M951Y TL)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
490179-10022-00 NUTNUT
-
52P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
65B4-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
75B4-F510F-00-00 BALL JOINT SETBALL JOINT SET
-
85B4-F510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
95B4-F510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
105B4-F510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
115B4-F511G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
123B4-2511H-00-00 BOOT BAND(DOUBLE OFFSET JOINT)BOOT BAND(DOUBLE OFFSET JOINT)
-
135B4-F512G-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
143B4-2512J-00-00 SNAP RINGSNAP RING
-
155UG-F512H-00-00 CIRCLIPCIRCLIP
-
165UG-F510U-00-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
1793450-22119-00 CIRCLIPCIRCLIP
-
185UG-F3501-11-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1993306-006Y4-00 BEARINGBEARING
-
2093106-38046-00 OIL SEALOIL SEAL
-
2193106-38047-00 OIL SEALOIL SEAL
-
2290387-30008-00 COLLARCOLLAR
-
2337S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
2499009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
255UG-F5111-10-00 HUB, FRONTHUB, FRONT
-
2690114-10016-00 BOLT, SERRATIONBOLT, SERRATION
-
2793210-27666-00 O-RINGO-RING
-
2890179-24003-00 NUTNUT
-
295UG-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3090149-06280-00 SCREWSCREW
