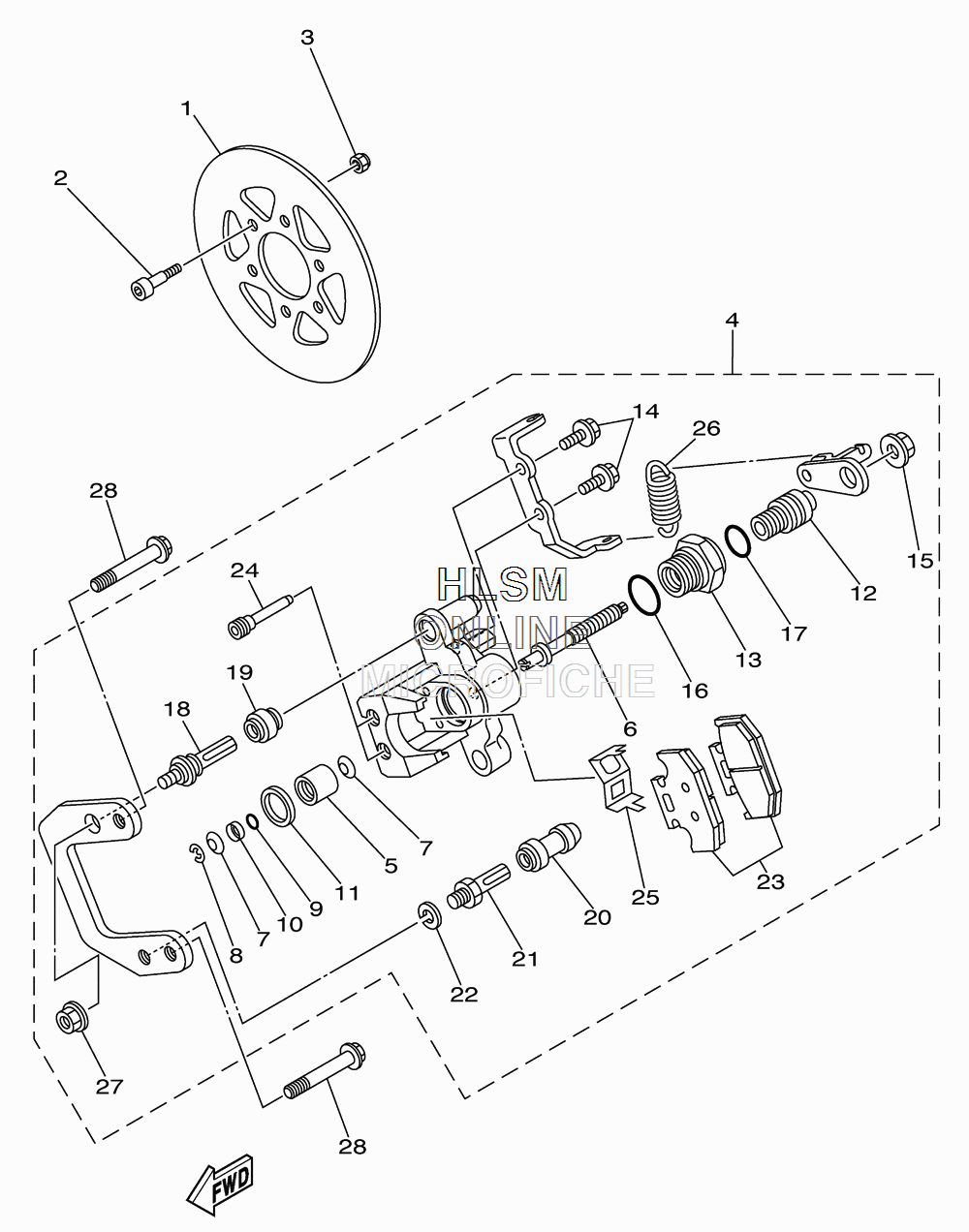

PARKING BRAKE ASSY для Yamaha RHINO 700 HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15B4-F5711-00-00 DISC, BRAKEDISC, BRAKE
-
290110-06228-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
395612-06100-00 NUT, UNUT, U
-
45B4-25905-00-00 PARKING BRAKE ASSYPARKING BRAKE ASSY
-
55B4-25814-10-00 PISTON, CALIPERPISTON, CALIPER
-
65B4-25880-00-00 PUSH ROD COMP.PUSH ROD COMP.
-
75B4-2581R-00-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
85B4-25415-00-00 CIRCLIPCIRCLIP
-
95B4-25976-00-00 O-RINGO-RING
-
105B4-25913-00-00 RETAINERRETAINER
-
115B4-25975-00-00 RUBBER, BUSHINGRUBBER, BUSHING
-
125B4-25978-00-00 SHAFT LSHAFT L
-
135B4-25973-00-00 NUTNUT
-
145B4-25833-00-00 BOLT, FITTINGBOLT, FITTING
-
151UY-25973-51-00 NUTNUT
-
165B4-25976-10-00 O-RINGO-RING
-
175B4-25976-20-00 O-RINGO-RING
-
183JD-25926-00-00 BOLTBOLT
-
193JD-25917-00-00 BOOT, CALIPERBOOT, CALIPER
-
201UY-25937-51-00 BOOT 2BOOT 2
-
211UY-25926-51-00 BOLTBOLT
-
221UY-25938-51-00 WASHER, SPRINGWASHER, SPRING
-
235B4-W0046-00-00 BRAKE PAD KIT 2BRAKE PAD KIT 2
-
245B4-25924-00-00 PIN, PADPIN, PAD
-
255B4-25919-00-00 SUPPORT, PADSUPPORT, PAD
-
265B4-25977-00-00 SPRING, RETURNSPRING, RETURN
-
275B4-2585F-00-00 NUTNUT
-
2890105-10402-00 BOLT, FLANGEBOLT, FLANGE
