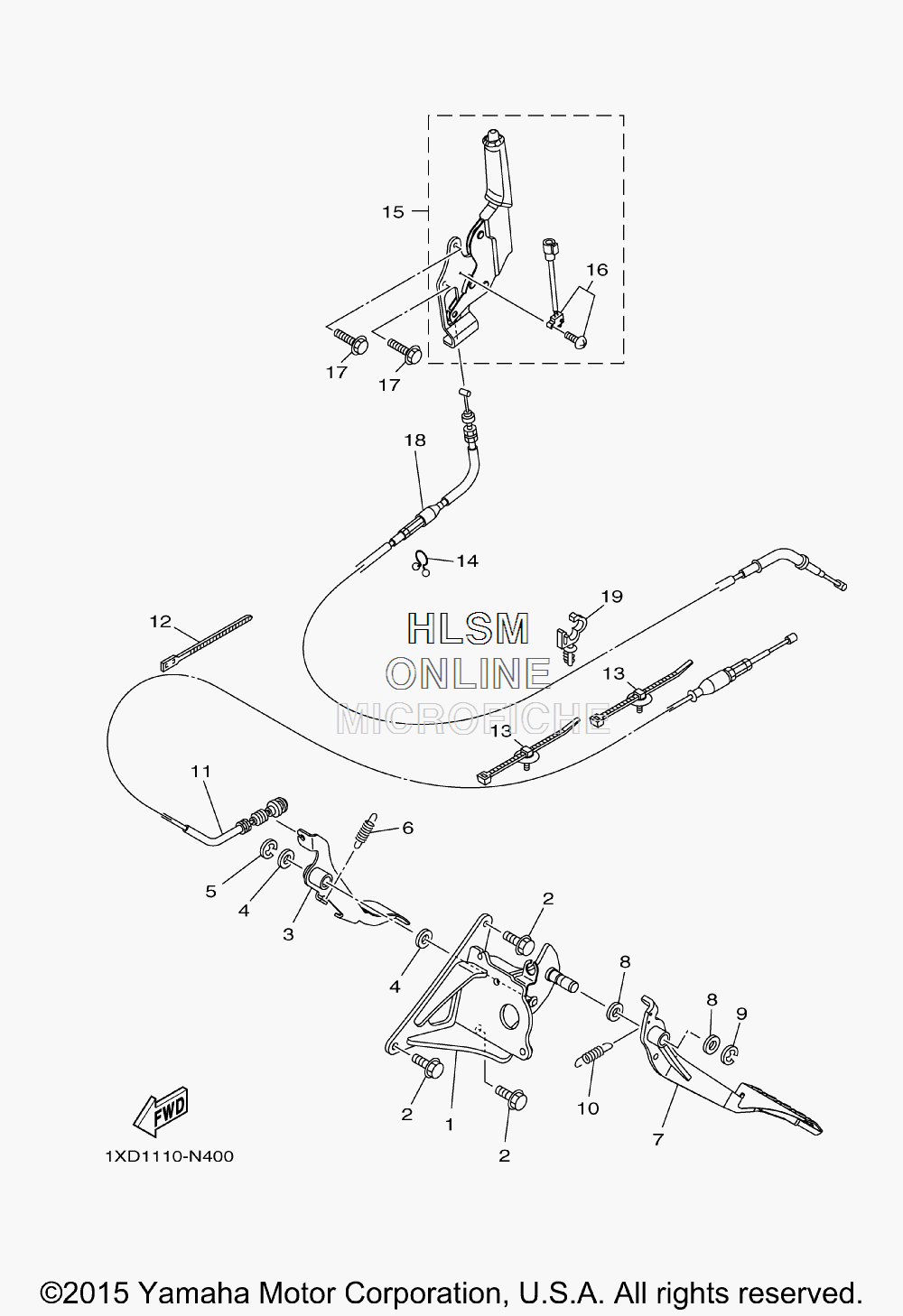

BRAKE - BRAKE SYSTEM для Yamaha VIKING 700 EPS HUNTER - 2014 года выпуска
-
№АртикулНазвание
-
11XD-F2548-00-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
295812-08016-00 BOLT, FLANGEBOLT, FLANGE
-
31XD-F7801-00-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
490201-15018-00 WASHER, PLATEWASHER, PLATE
-
593430-12008-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
690506-20192-00 SPRING, TENSIONSPRING, TENSION
-
71XD-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
890201-15018-00 WASHER, PLATEWASHER, PLATE
-
993430-12008-00 CIRCLIP E-TYPECIRCLIP E-TYPE
-
1090506-20192-00 SPRING, TENSIONSPRING, TENSION
-
111XD-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
1290464-40825-00 CLAMPCLAMP
-
135B4-F1338-00-00 CLAMPCLAMP
-
1490464-20804-00 CLAMPCLAMP
-
151XD-F5690-00-00 PARKING LEVER ASSYPARKING LEVER ASSY
-
165UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
1795812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
181XD-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
1990464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
