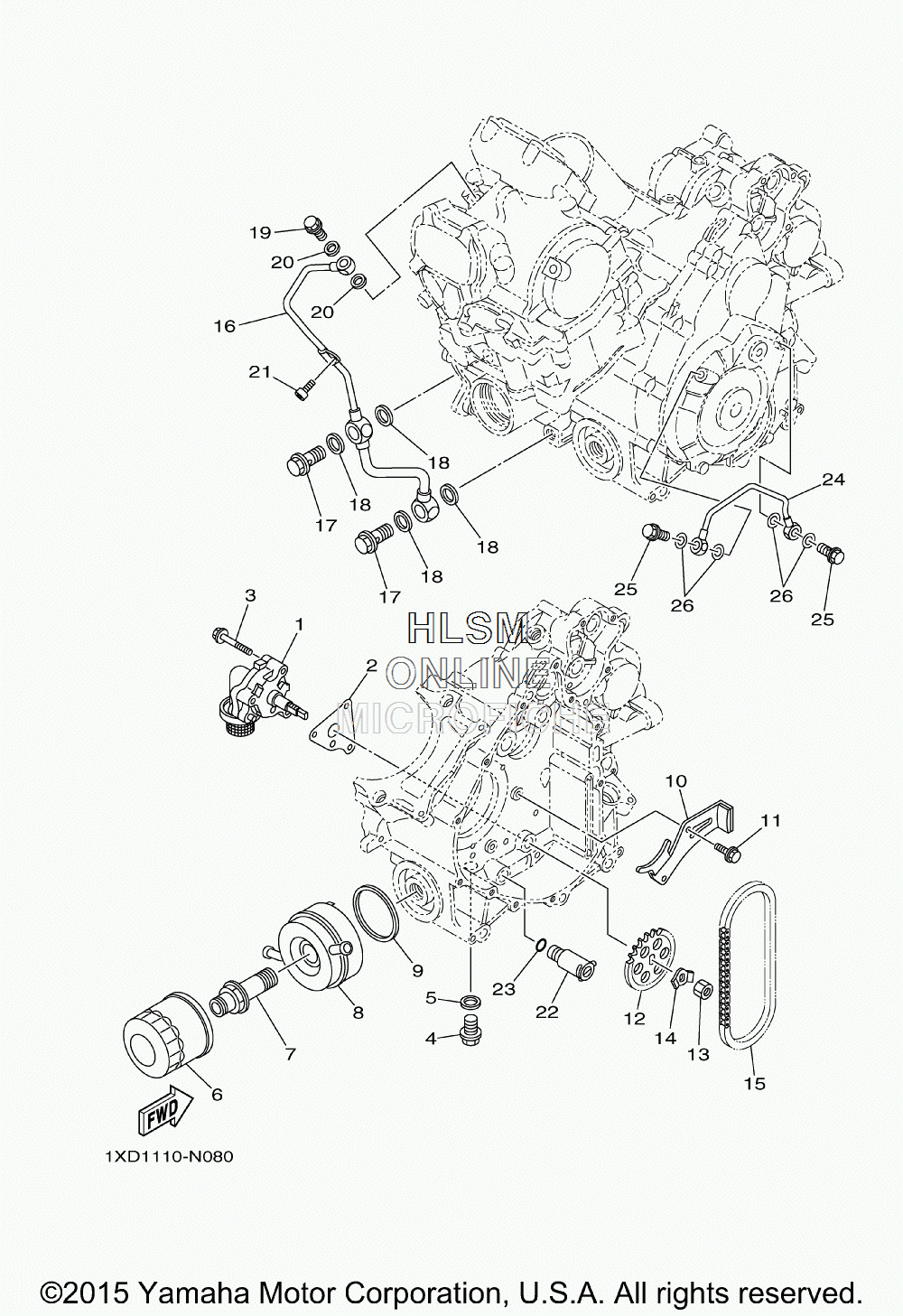

OIL PUMP для Yamaha VIKING 700 EPS HUNTER - 2014 года выпуска
-
№АртикулНазвание
-
13B4-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
23B4-13329-00-00 GASKET, PUMP COVERGASKET, PUMP COVER
-
395022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
490340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
5214-11198-01-00 GASKETGASKET
-
65GH-13440-50-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
790401-20009-00 BOLT, UNIONBOLT, UNION
-
81XD-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
91XD-13475-00-00 GASKETGASKET
-
103B4-12221-00-00 GUIDE, STOPPER 3GUIDE, STOPPER 3
-
1190105-06082-00 BOLT, FLANGEBOLT, FLANGE
-
123B4-13355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
1395312-10600-00 NUTNUT
-
1490215-10008-00 WASHER, LOCKWASHER, LOCK
-
1594580-31074-00 CHAIN (DID 25HT)CHAIN (DID 25HT)
-
163B4-13171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
1790401-14118-00 BOLT, UNIONBOLT, UNION
-
1890430-14043-00 GASKETGASKET
-
1990401-10024-00 BOLT, UNIONBOLT, UNION
-
2090430-10188-00 GASKETGASKET
-
2191312-06012-00 BOLT, HEXT. SOCKET HEADBOLT, HEXT. SOCKET HEAD
-
2225G-13490-00-00 RELIEF VALVE ASSYRELIEF VALVE ASSY
-
2393210-10096-00 O-RINGO-RING
-
2428P-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2590401-08006-00 BOLT, UNIONBOLT, UNION
-
2690430-08119-00 GASKETGASKET
