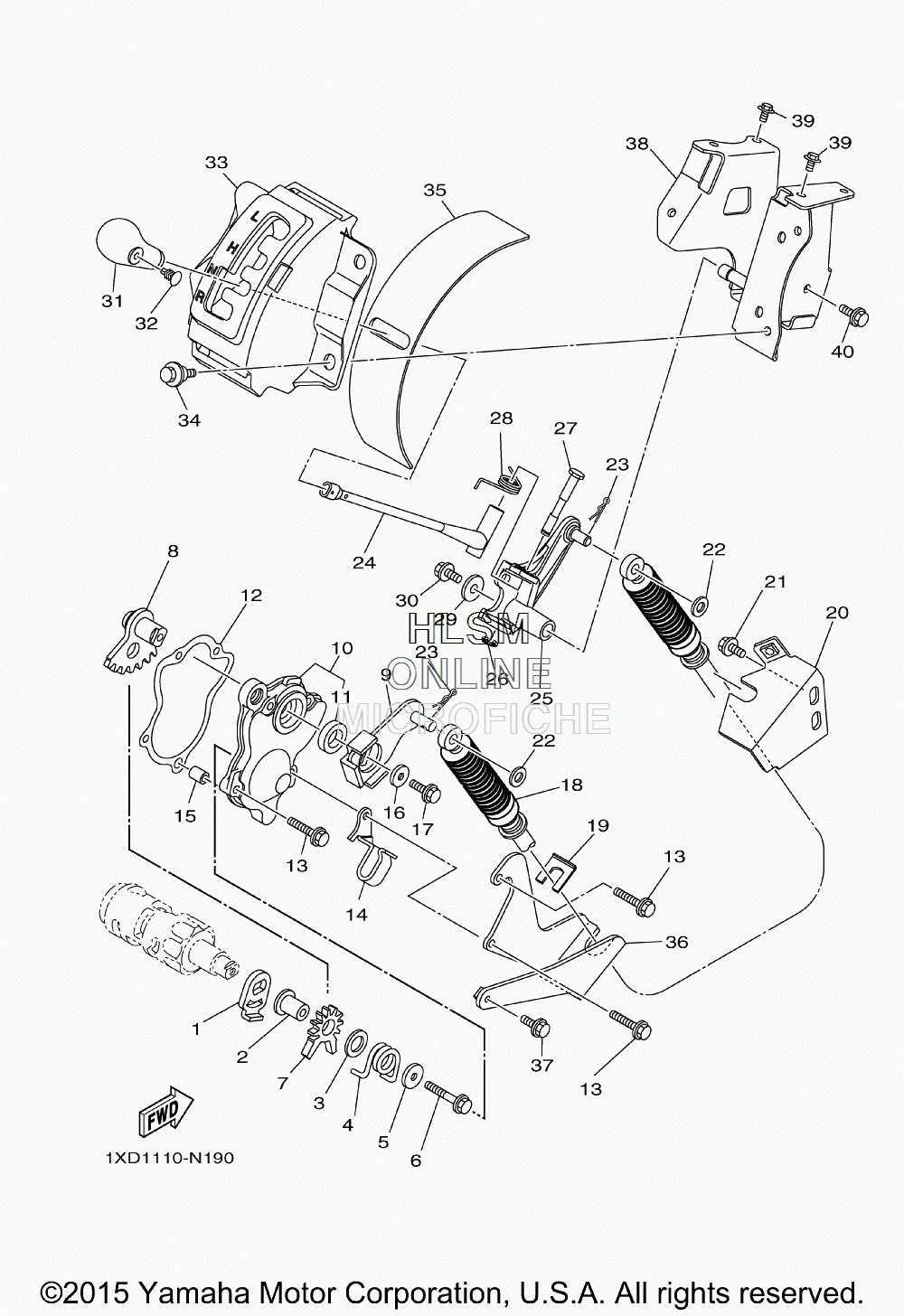

SHIFT SHAFT для Yamaha VIKING 700 EPS HUNTER - 2014 года выпуска
-
№АртикулНазвание
-
11XD-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-35764-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
81HP-18103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
91XD-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
101HP-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-17263-00 ...OIL SEAL SD-TYPE...OIL SEAL SD-TYPE
-
123B4-18146-00-00 GASKETGASKET
-
1395022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1490462-10048-00 CLAMPCLAMP
-
1599530-08012-00 PIN, DOWELPIN, DOWEL
-
1690201-06036-00 WASHER, PLATEWASHER, PLATE
-
1790105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
181XD-2637E-00-00 CABLE, CONTROL 1CABLE, CONTROL 1
-
191XD-25866-00-00 CIRCLIPCIRCLIP
-
201XD-F6381-00-00 HOLDER, ADJUSTINGHOLDER, ADJUSTING
-
2195812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
2292902-08600-00 WASHER, PLATEWASHER, PLATE
-
2390468-16001-00 CLIPCLIP
-
241XD-E8190-00-00 LEVER COMP. 1LEVER COMP. 1
-
251XD-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2699002-06600-00 CIRCLIPCIRCLIP
-
271HP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
281HP-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
2990201-06036-00 WASHER, PLATEWASHER, PLATE
-
3095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3128P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
3290269-05055-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
331XD-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
3490109-06172-00 BOLTBOLT
-
351HP-E8154-00-00 COVER, DUSTCOVER, DUST
-
361XD-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
-
3795022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
381XD-E811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
3995812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4090105-06831-00 BOLT, FLANGEBOLT, FLANGE
