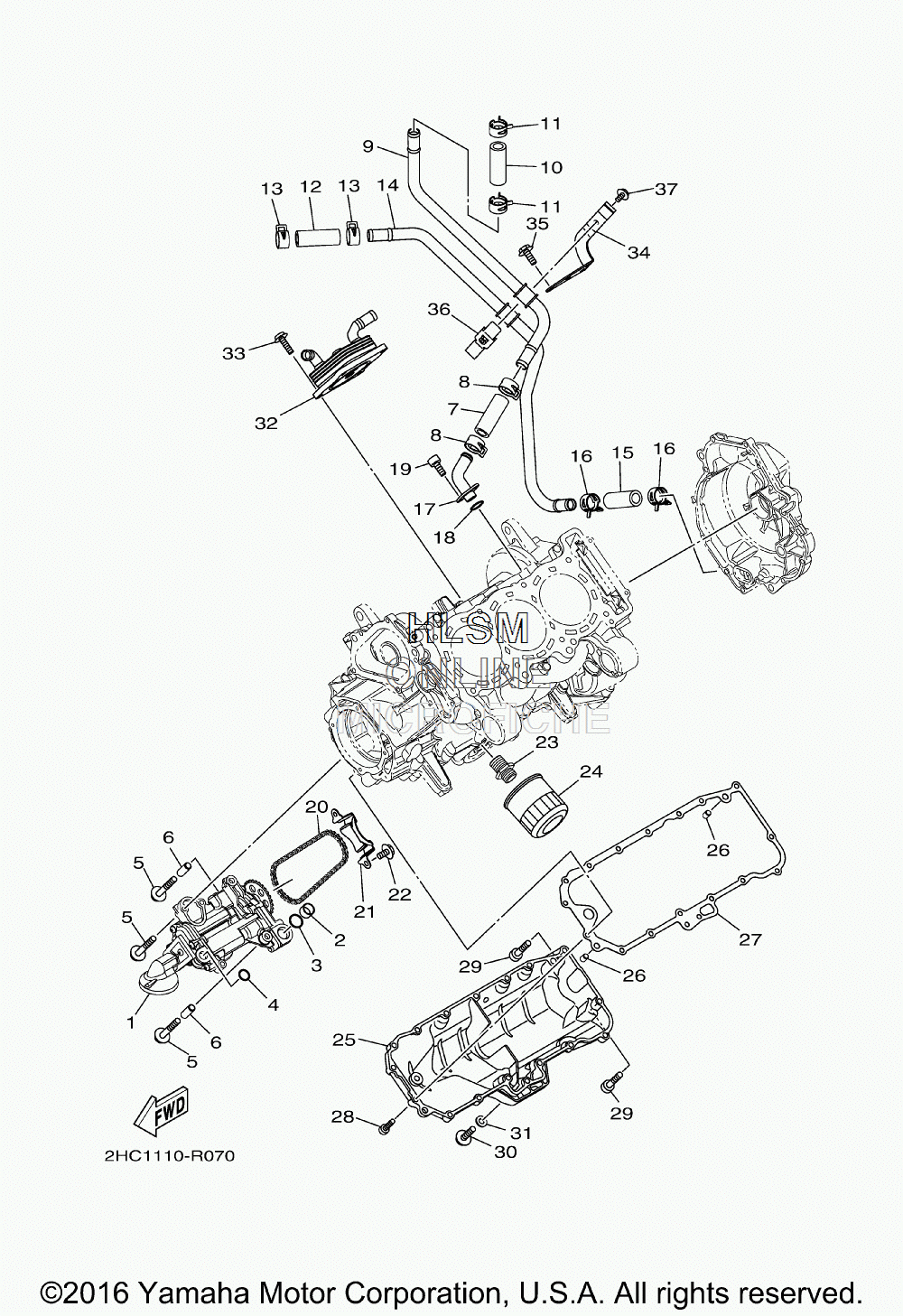

OIL PUMP для Yamaha YXZ1000 EPS SPECIAL EDITION [YXZ10YPSGY] - 2016 года выпуска
-
№АртикулНазвание
-
18GL-13300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
28ES-13284-00-00 PIPEPIPE
-
393210-18322-00 O-RINGO-RING
-
493210-14579-00 O-RINGO-RING
-
595812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
691808-22019-00 PIN, DOWELPIN, DOWEL
-
72HC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
890467-22097-00 CLIPCLIP
-
92HC-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
102HC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1190467-22097-00 CLIPCLIP
-
122HC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1390467-22097-00 CLIPCLIP
-
142HC-E3418-00-00 PIPE, OIL 2PIPE, OIL 2
-
152HC-E3464-00-00 HOSE, OIL 1HOSE, OIL 1
-
1690467-22097-00 CLIPCLIP
-
178ES-13115-00-00 CONNECTOR, SUCTION PIPECONNECTOR, SUCTION PIPE
-
1893210-16629-00 O-RINGO-RING
-
1991312-06016-00 BOLTBOLT
-
2094580-25064-00 CHAIN (DID25 64LE)CHAIN (DID25 64LE)
-
218ES-13898-00-00 HOLDERHOLDER
-
2295812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2390401-20008-00 BOLT, UNIONBOLT, UNION
-
245GH-13440-50-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
252HC-13417-00-00 COVER, STRAINERCOVER, STRAINER
-
2699530-08012-00 PIN, DOWELPIN, DOWEL
-
272HC-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
2891312-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2991317-06035-00 BOLTBOLT
-
3090109-06031-00 BOLTBOLT
-
3190430-06192-00 GASKETGASKET
-
322HC-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
3390110-06164-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
342HC-E3487-00-00 GUIDE, OIL HOSEGUIDE, OIL HOSE
-
3595812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
362HC-E3499-00-00 GUIDE, OIL HOSE 2GUIDE, OIL HOSE 2
-
3795812-06012-00 BOLT, FLANGEBOLT, FLANGE
