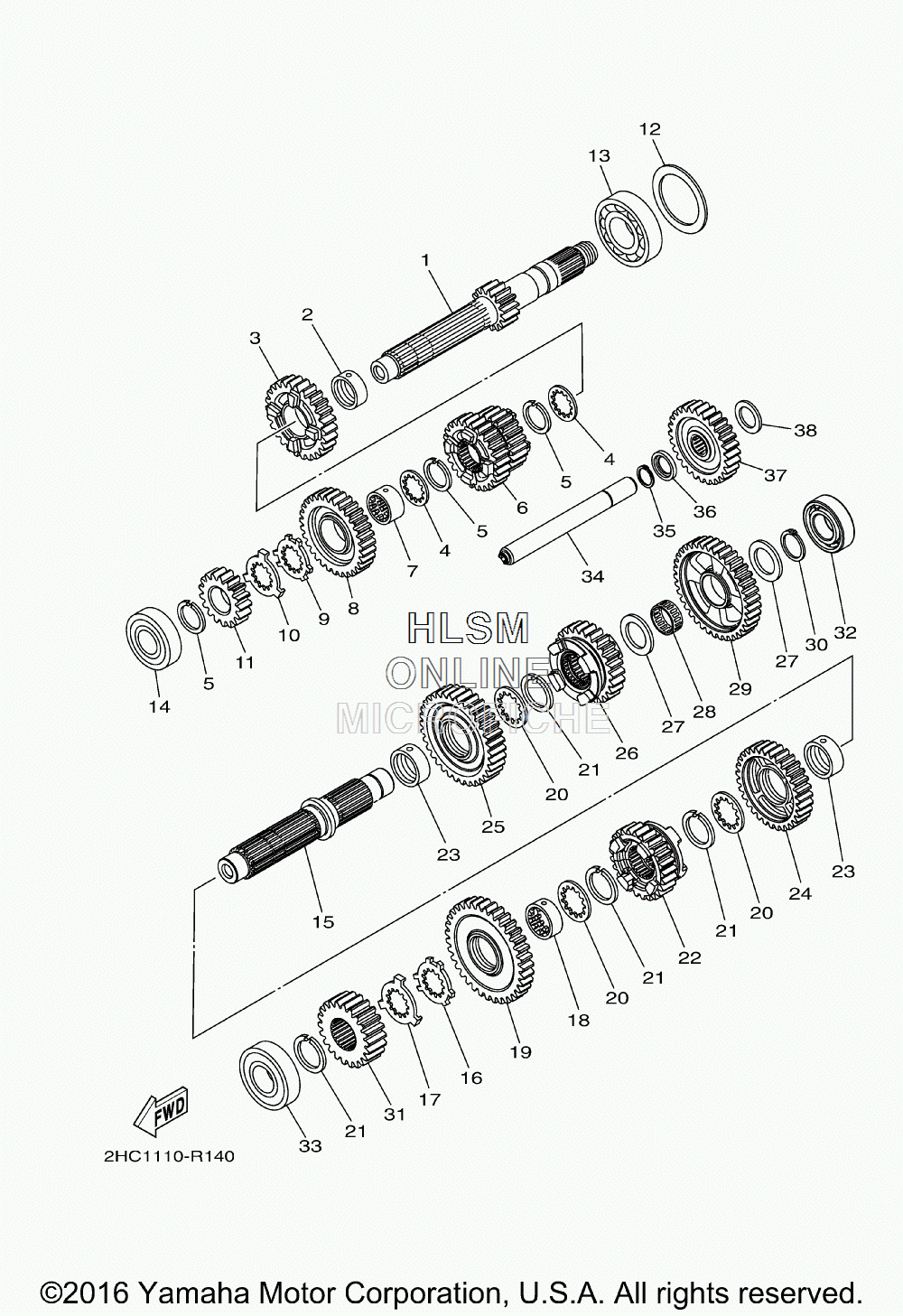

TRANSMISSION для Yamaha YXZ1000 EPS SPECIAL EDITION [YXZ10YPSGY] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-17411-00-00 AXLE, MAIN (15T)AXLE, MAIN (15T)
-
290387-28003-00 COLLARCOLLAR
-
32HC-17141-00-00 GEAR, 4TH PINION (26T)GEAR, 4TH PINION (26T)
-
490209-25011-00 WASHERWASHER
-
593440-28184-00 CIRCLIPCIRCLIP
-
62HC-17121-00-00 GEAR, 2ND PINION (26T/22T)GEAR, 2ND PINION (26T/22T)
-
790387-25023-00 COLLARCOLLAR
-
82HC-17151-00-00 GEAR, 5TH PINION (31T)GEAR, 5TH PINION (31T)
-
990214-25004-00 WASHER, CLAWWASHER, CLAW
-
1090214-25003-00 WASHER, CLAWWASHER, CLAW
-
112HC-17111-00-00 GEAR,1ST PINION (17T)GEAR,1ST PINION (17T)
-
1290201-51013-00 WASHER, PLATEWASHER, PLATE
-
1393306-37817-00 BEARINGBEARING
-
1493306-37215-00 BEARINGBEARING
-
152HC-17421-00-00 AXLE, DRIVEAXLE, DRIVE
-
1690214-29002-00 WASHER, CLAWWASHER, CLAW
-
1790214-28002-00 WASHER, CLAWWASHER, CLAW
-
1890387-28004-00 COLLARCOLLAR
-
192HC-17211-00-00 GEAR, 1ST WHEEL (35T)GEAR, 1ST WHEEL (35T)
-
2090209-28008-00 WASHERWASHER
-
2193440-31187-00 CIRCLIPCIRCLIP
-
222HC-17251-00-00 GEAR, 5TH WHEEL (25T)GEAR, 5TH WHEEL (25T)
-
2390387-31003-00 COLLARCOLLAR
-
242HC-17231-00-00 GEAR, 3RD WHEEL (31T)GEAR, 3RD WHEEL (31T)
-
252HC-17221-00-00 GEAR, 2ND WHEEL (34T)GEAR, 2ND WHEEL (34T)
-
262HC-17241-00-00 GEAR, 4TH WHEEL (25T)GEAR, 4TH WHEEL (25T)
-
2790201-25290-00 WASHER, PLATEWASHER, PLATE
-
2893310-32590-00 BEARINGBEARING
-
292HC-17253-00-00 GEAR, REVERSE WHEEL 2 (37T)GEAR, REVERSE WHEEL 2 (37T)
-
3093410-25017-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
312HC-17582-00-00 GEAR, MIDDLE DRIVE (22T)GEAR, MIDDLE DRIVE (22T)
-
3293306-20595-00 BEARINGBEARING
-
3393306-30585-00 BEARINGBEARING
-
342HC-17432-00-00 AXLE, IDLEAXLE, IDLE
-
3593410-17037-00 CIRCLIP S-TYPECIRCLIP S-TYPE
-
362HC-18473-00-00 RETAINER, SPRINGRETAINER, SPRING
-
372HC-1724A-00-00 REVERSE WHEEL ASSY (28T)REVERSE WHEEL ASSY (28T)
-
3890201-17257-00 WASHER, PLATEWASHER, PLATE
