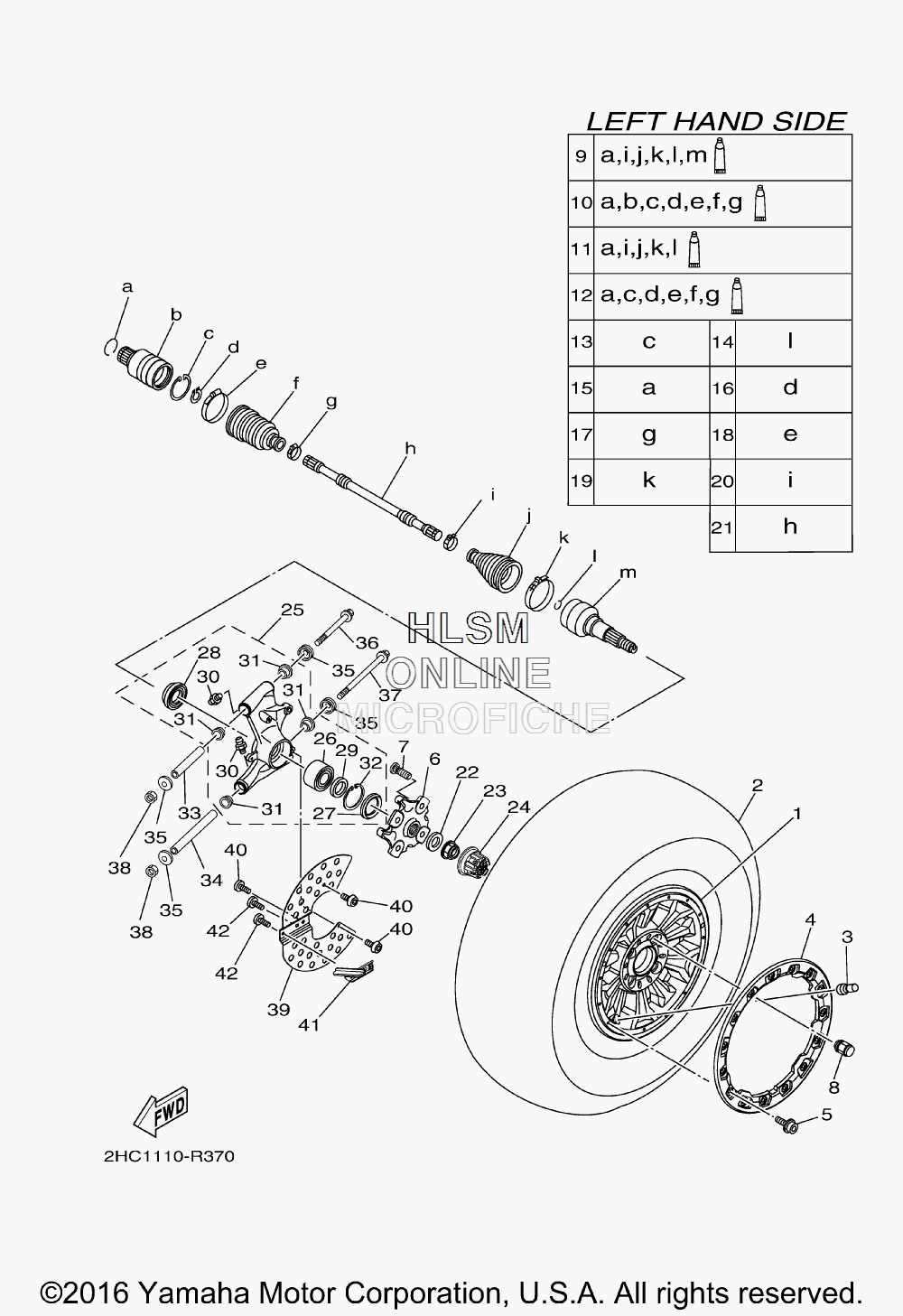

WHEEL - REAR W/ AXLE ASSY для Yamaha YXZ1000 EPS SPECIAL EDITION [YXZ10YPSGY] - 2016 года выпуска
-
№АртикулНазвание
-
12HC-F5307-50-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294111-14802-00 TIRE (27X11.00R14 MU10 6PR TL) MAXXISTIRE (27X11.00R14 MU10 6PR TL) MAXXIS
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
42HC-F4658-50-00 NUT, CAPNUT, CAP
-
590105-068C3-00 BOLT, FLANGEBOLT, FLANGE
-
62HC-F5111-00-00 HUB, FRONTHUB, FRONT
-
790114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
890176-12800-00 NUT, CROWNNUT, CROWN
-
92HC-2530T-00-00 BALL JOINT SETBALL JOINT SET
-
102HC-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
112HC-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
122HC-2530Y-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
132HC-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
1416B-25185-00-00 RING 1RING 1
-
1516B-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
162HC-2512J-00-00 SNAP RINGSNAP RING
-
172HC-25719-00-00 BANDBAND
-
182HC-26293-00-00 BANDBAND
-
192HC-2512G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
202HC-26397-00-00 BANDBAND
-
212HC-259A2-00-00 SHAFTSHAFT
-
2290201-25023-00 WASHER, PLATEWASHER, PLATE
-
2390179-24006-00 NUTNUT
-
242HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
252HC-F530F-02-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2693305-00603-00 ...BEARING...BEARING
-
2793106-42801-00 ...OIL SEAL...OIL SEAL
-
2893106-38800-00 ...OIL SEAL...OIL SEAL
-
2990387-30013-00 ...COLLAR...COLLAR
-
3093700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
3190381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3299009-72500-00 ...CIRCLIP...CIRCLIP
-
3390387-12060-00 COLLARCOLLAR
-
3490387-12061-00 COLLARCOLLAR
-
351XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3690105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
3790105-12097-00 BOLT, FLANGEBOLT, FLANGE
-
3890185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
392HC-F534C-00-00 RING, WHEEL RR. 1RING, WHEEL RR. 1
-
4090111-06096-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
412HC-F2341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
4292012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
